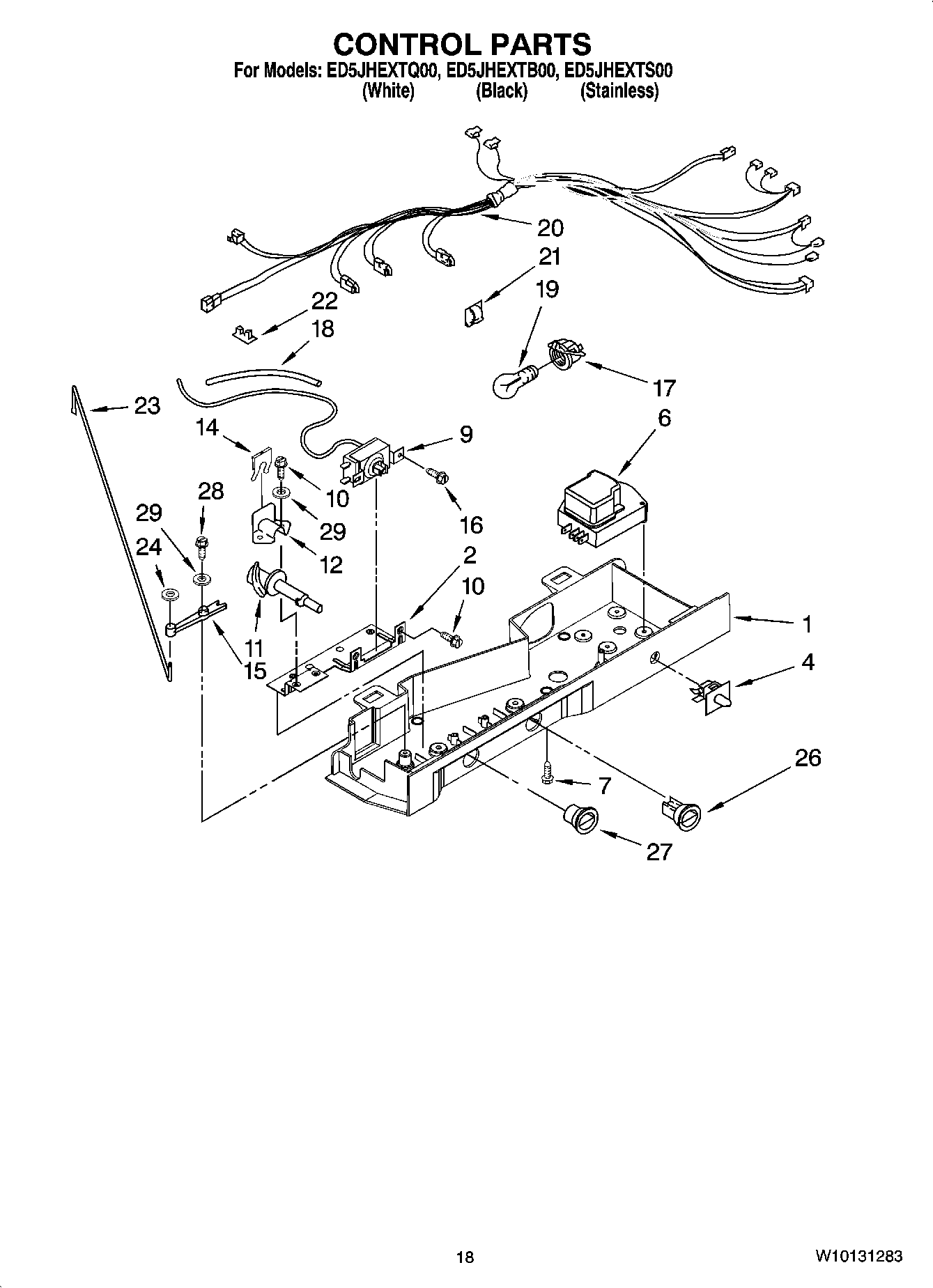

ED5JHEXTS00 11 – CONTROL PARTS

Products

Position	Product
1	2311622 Whirlpool Control Box
2	2311611 Whirlpool Refrigerator Bracket
4	WP2149705 Whirlpool Refrigerator Door Switch
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7	489392 Whirlpool Refrigerator Screw
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP3196557 Whirlpool Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	WP965173 Whirlpool Dishwasher Screw
17	4387478 Whirlpool Refrigerator Light Socket
18	WP2196003 Whirlpool Refrigerator Bar Riser
19	W11679940 Whirlpool Refrigerator Light Bulb Assembly
20	2311633 Whirlpool Refrigerator Wire Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2311631 Whirlpool Refrigerator Rod
24	Fastener, Push-On
26	W10723843 Whirlpool Refrigerator Thermostat Knob
27	2311615 Whirlpool Refrigerator Knob
28	627068 Whirlpool Refrigerator Screw
29	489203 Whirlpool Refrigerator Washer
