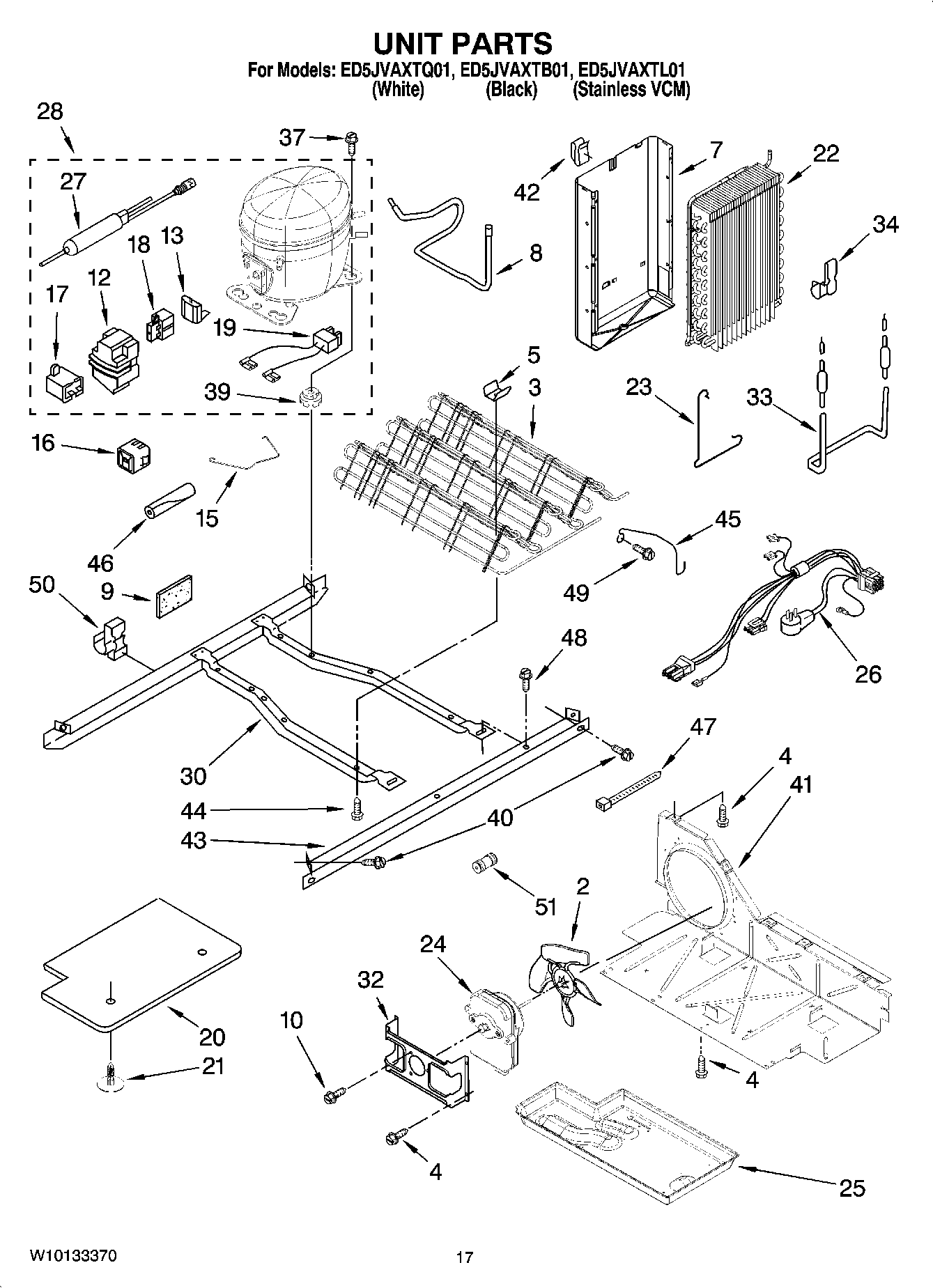

ED5JVAXTB01 11 – UNIT PARTSadmin2025-04-26T10:36:35+00:00ED5JVAXTB01 11 – UNIT PARTS ProductsPositionProduct2W11458267 Whirlpool Refrigerator Fan Blade32324712 Whirlpool Refrigerator Condenser4WP489464 Whirlpool Refrigerator Screw5W10683556 Whirlpool Refrigerator Clip7Heat Shield8WP2205765 Whirlpool Refrigerator Tube9W11553819 Whirlpool Refrigerator Insulation10WP8533993 Whirlpool Refrigerator Screw12WP2162358 Whirlpool Refrigerator Terminal Cover13WP2154697 Whirlpool Refrigerator Overload152223314 Whirlpool Refrigerator Clip16WP2304885 Whirlpool Refrigerator Start Device17WPW10662129 Whirlpool Refrigerator Run Capacitor18W10920279 Whirlpool Refrigerator Start Relay19WP2172890 Whirlpool Refrigerator Wire20Unit Cover, Bottom21489396 Whirlpool Refrigerator Clip22WP2188823 Whirlpool Refrigerator Evaporator23Clamp24W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade25WPW10614158 Whirlpool Refrigerator Evaporator Tray26Unit, Harness27W10843121 Whirlpool Refrigerator Tube28W10139460 Whirlpool Refrigerator Compressor302304904 Whirlpool Frame Assembly32WP2181929 Whirlpool Refrigerator Bracket33WP2323198 Whirlpool Refrigerator Heater34W11623163 Whirlpool Refrigerator Clip39WP4387558 Whirlpool Refrigerator Compressor Grommet39876811 Whirlpool Grommet40489340 Whirlpool Refrigerator Screw41W10896764 Whirlpool Refrigerator Air Baffle42Clip, Heat Shield432305374 Whirlpool Refrigerator Unit Rail44W11544659 Whirlpool Refrigerator Screw452260517 Whirlpool Fan Guard46SLEEVE47WPW10339879 Whirlpool Wire Tie48WP489427 Whirlpool Refrigerator Screw49WP489478 Whirlpool Refrigerator Screw50Clip, Wire & Tube51Following Parts Not Illustrated and Optional Parts Not Included51VALVE, ACCESS (5/8``)51876764 Whirlpool Refrigerator Primary Valve51978027 Whirlpool Refrigerator Primary Valve51978030 Whirlpool Refrigerator Valve51WP978025 Whirlpool Refrigerator Valve51VALVE, ACCESS (1/2``)51978026 Whirlpool Refrigerator Primary Valve51WP4373559 Whirlpool Fitting51REFRIGERANT CHARGE 5.0 oz. (R-134A)
