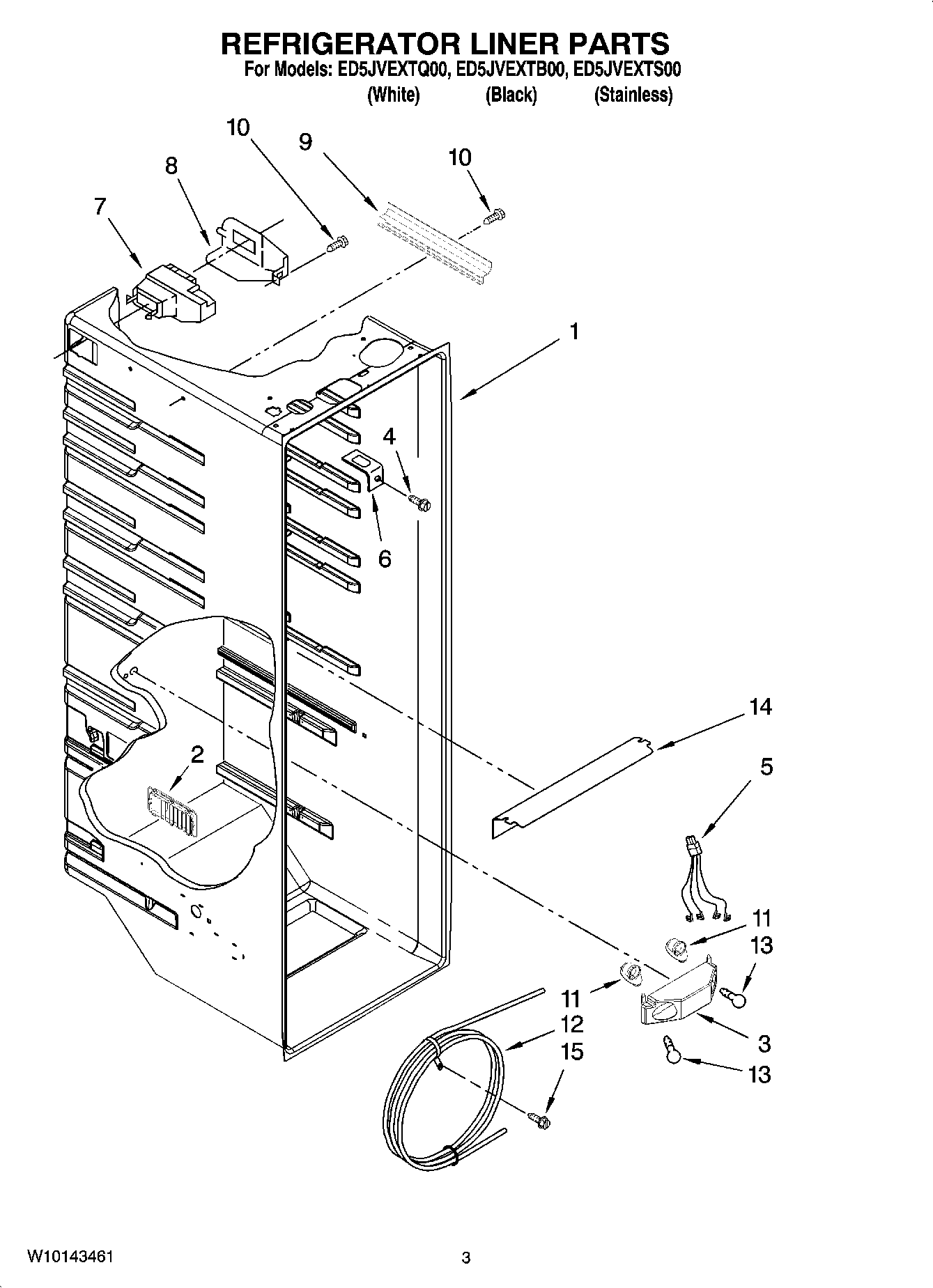

ED5JVEXTS00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Louver
3	Bracket, Dual Crisper Light
5	2311637 Whirlpool Refrigerator Wire Harness
6	2311612 Whirlpool Refrigerator Clip
7	WPW10151374 Whirlpool Refrigerator Diffuser
8	2152019 Whirlpool Refrigerator Cover
9	2150331 Whirlpool Refrigerator Wire Cover
10	W10759522 Whirlpool Screw
11	4387478 Whirlpool Refrigerator Light Socket
12	WP2256126 Whirlpool Refrigerator Reservoir
13	W11679940 Whirlpool Refrigerator Light Bulb Assembly
14	Light Lens
15	Screw (2)
