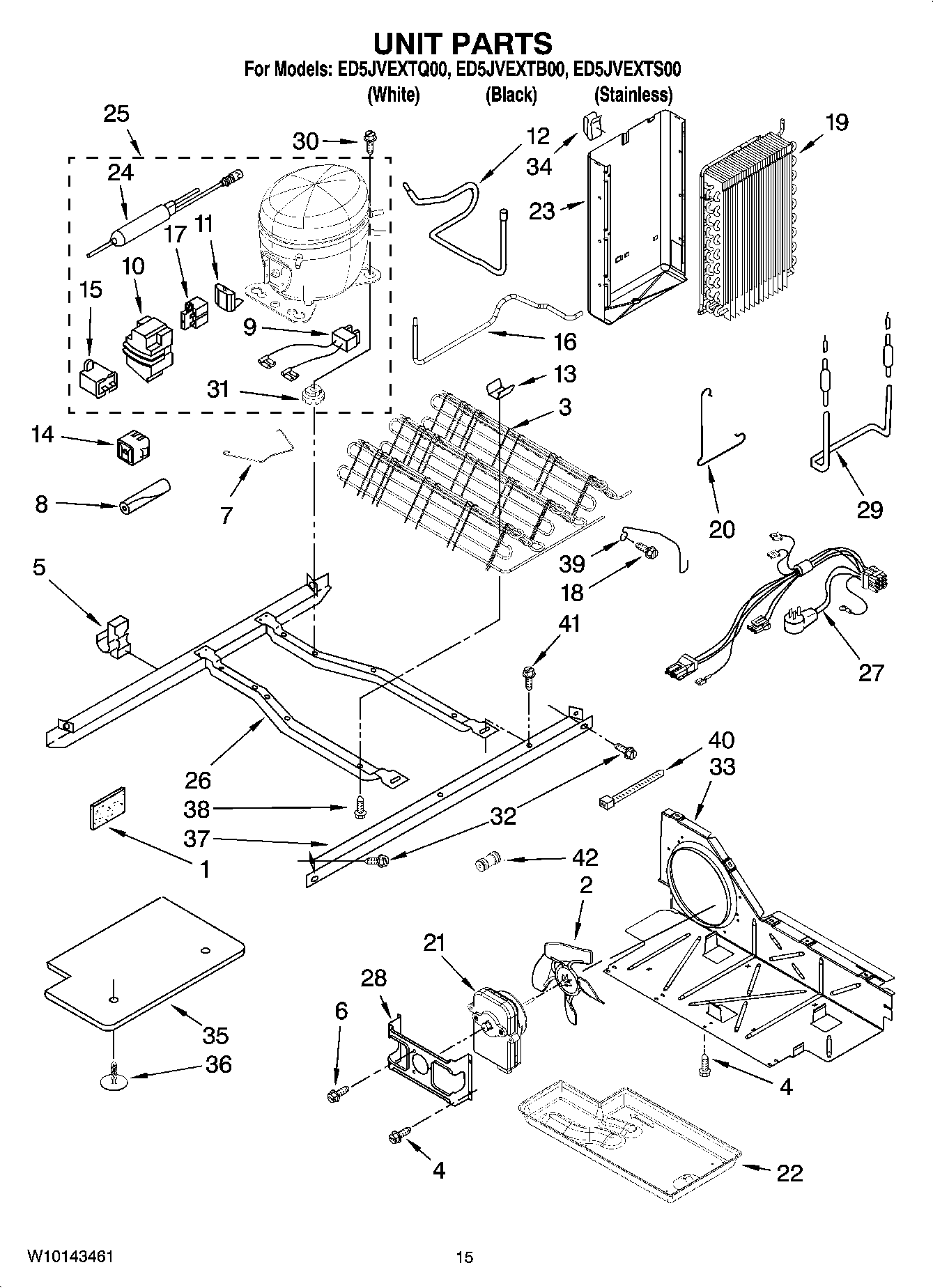

ED5JVEXTS00 09 – UNIT PARTS

ED5JVEXTS00 09 – UNIT PARTS

Written by

in

ED5JVEXTS00 09 – UNIT PARTS

Products

Position	Product
1	W11553819 Whirlpool Refrigerator Insulation
2	W11458267 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	2223314 Whirlpool Refrigerator Clip
8	SLEEVE
9	WP2172890 Whirlpool Refrigerator Wire
10	WP2162358 Whirlpool Refrigerator Terminal Cover
11	WP2154697 Whirlpool Refrigerator Overload
12	WP2205765 Whirlpool Refrigerator Tube
13	W10683556 Whirlpool Refrigerator Clip
14	WP2304885 Whirlpool Refrigerator Start Device
15	WPW10662129 Whirlpool Refrigerator Run Capacitor
16	2261599 Whirlpool Refrigerator Tube
17	W10920279 Whirlpool Refrigerator Start Relay
18	WP489478 Whirlpool Refrigerator Screw
19	WP2188823 Whirlpool Refrigerator Evaporator
20	Clamp
21	WP2188874 Whirlpool Refrigerator Condenser Motor
22	WPW10614158 Whirlpool Refrigerator Evaporator Tray
23	Heat Shield
24	WPW10143759 Whirlpool Dryer Filter
24	W10843121 Whirlpool Refrigerator Tube
25	W10309994 Whirlpool Refrigerator Compressor
26	2304904 Whirlpool Frame Assembly
27	WPW10309395 Whirlpool Refrigerator Wire Harness
28	WP2181929 Whirlpool Refrigerator Bracket
29	WP2323198 Whirlpool Refrigerator Heater
31	876811 Whirlpool Grommet
31	WP4387558 Whirlpool Refrigerator Compressor Grommet
32	489340 Whirlpool Refrigerator Screw
33	W10896764 Whirlpool Refrigerator Air Baffle
34	Clip, Heat Shield
35	Unit Cover, Bottom
36	489396 Whirlpool Refrigerator Clip
37	2305374 Whirlpool Refrigerator Unit Rail
38	W11544659 Whirlpool Refrigerator Screw
39	2260517 Whirlpool Fan Guard
40	WPW10339879 Whirlpool Wire Tie
41	WP489427 Whirlpool Refrigerator Screw
42	Following Parts Not Il
42	VALVE, ACCESS (5/8“)
42	978026 Whirlpool Refrigerator Primary Valve
42	978027 Whirlpool Refrigerator Primary Valve
42	978030 Whirlpool Refrigerator Valve
42	WP4373559 Whirlpool Fitting
42	WP978025 Whirlpool Refrigerator Valve
42	VALVE, ACCESS (1/2“)
42	876764 Whirlpool Refrigerator Primary Valve
42	WPL ARI36140A1
