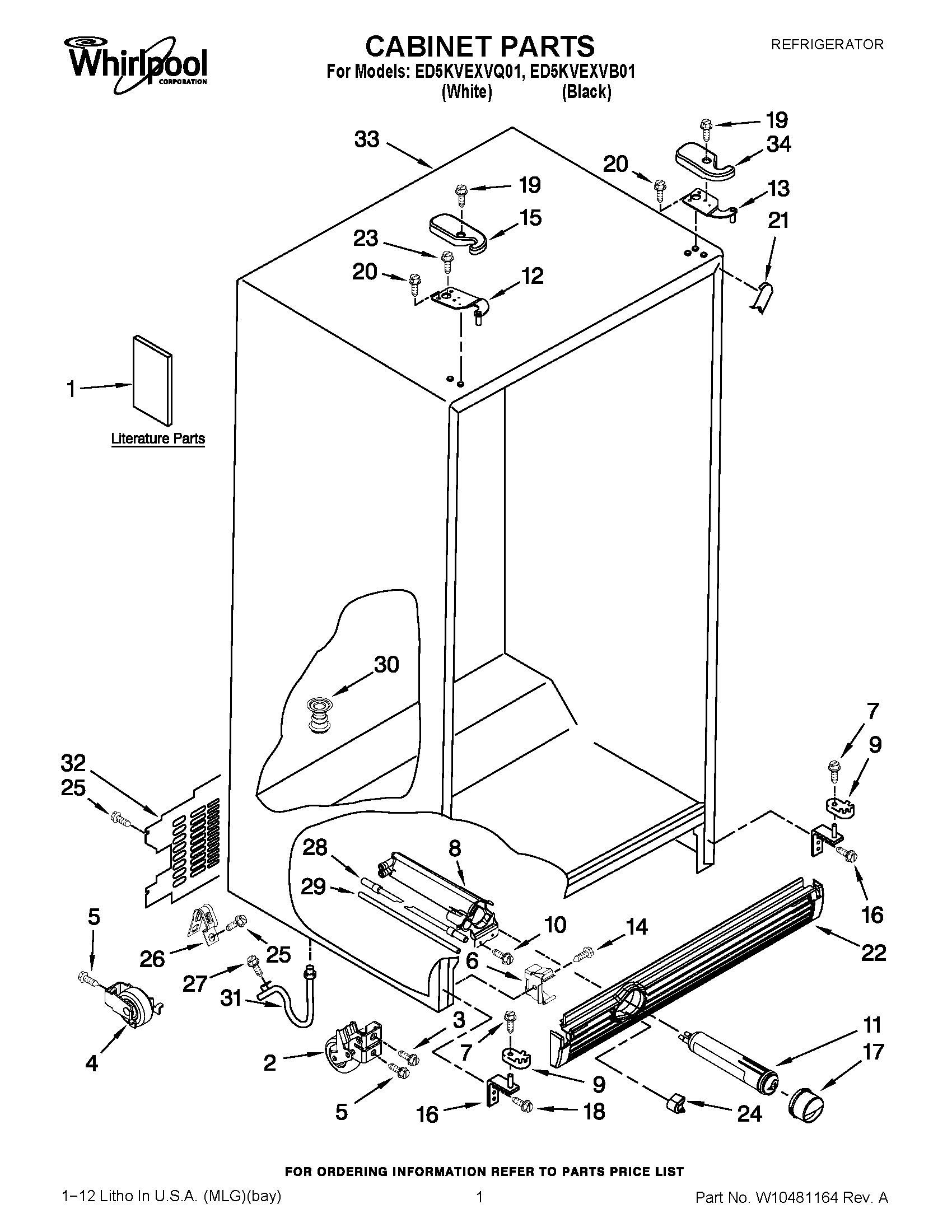

ED5KVEXVB01 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	ENERGY LABEL
1	INSTRUCTION SHEET, DOOR REMOVAL
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489483 Whirlpool Screw
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WPW10329686 Whirlpool Door Cam Black
10	WP489500 Whirlpool Refrigerator Screw
11	FILTER 3-SINGLE TEAL
12	WP2203770 Whirlpool Refrigerator Door Hinge
13	WP2203771 Whirlpool Refrigerator Door Hinge
14	WPW10141604 Whirlpool Screw
15	WP2203407B Whirlpool Refrigerator Cover
15	WP2203407W Whirlpool Refrigerator Cover
16	W10138965 Whirlpool Refrigerator Door Hinge
17	WP2260518B Whirlpool Water Filter Cap
17	WP2260518W Whirlpool Refrigerator Filter Cap
19	WP8281227 Whirlpool Screw
20	WP489497 Whirlpool Screw
21	Filler, Wrapper (Black)
21	Filler, Wrapper (White)
22	WPW10311032 Whirlpool Refrigerator Grille
22	WPW10311033 Whirlpool Refrigerator Grille
23	WP489128 Whirlpool Refrigerator Screw
24	2260503W Whirlpool Refrigerator Button
24	WP2260503B Whirlpool Refrigerator Button
25	SCREW
26	549193 Whirlpool Refrigerator Power Clamp
27	WP489464 Whirlpool Refrigerator Screw
28	TUBE, FILTER INLET
29	WPW10350006 Whirlpool Refrigerator Water Tube
30	W11566763 Whirlpool Fitting
31	W11512417 Whirlpool Drain Connector
32	WP2188755 Whirlpool Rear Panel
33	CABINET (NOT A SERVICEABLE PART)
34	WP2203408B Whirlpool Refrigerator Cover
34	WP2203408W Whirlpool Refrigerator Cover
