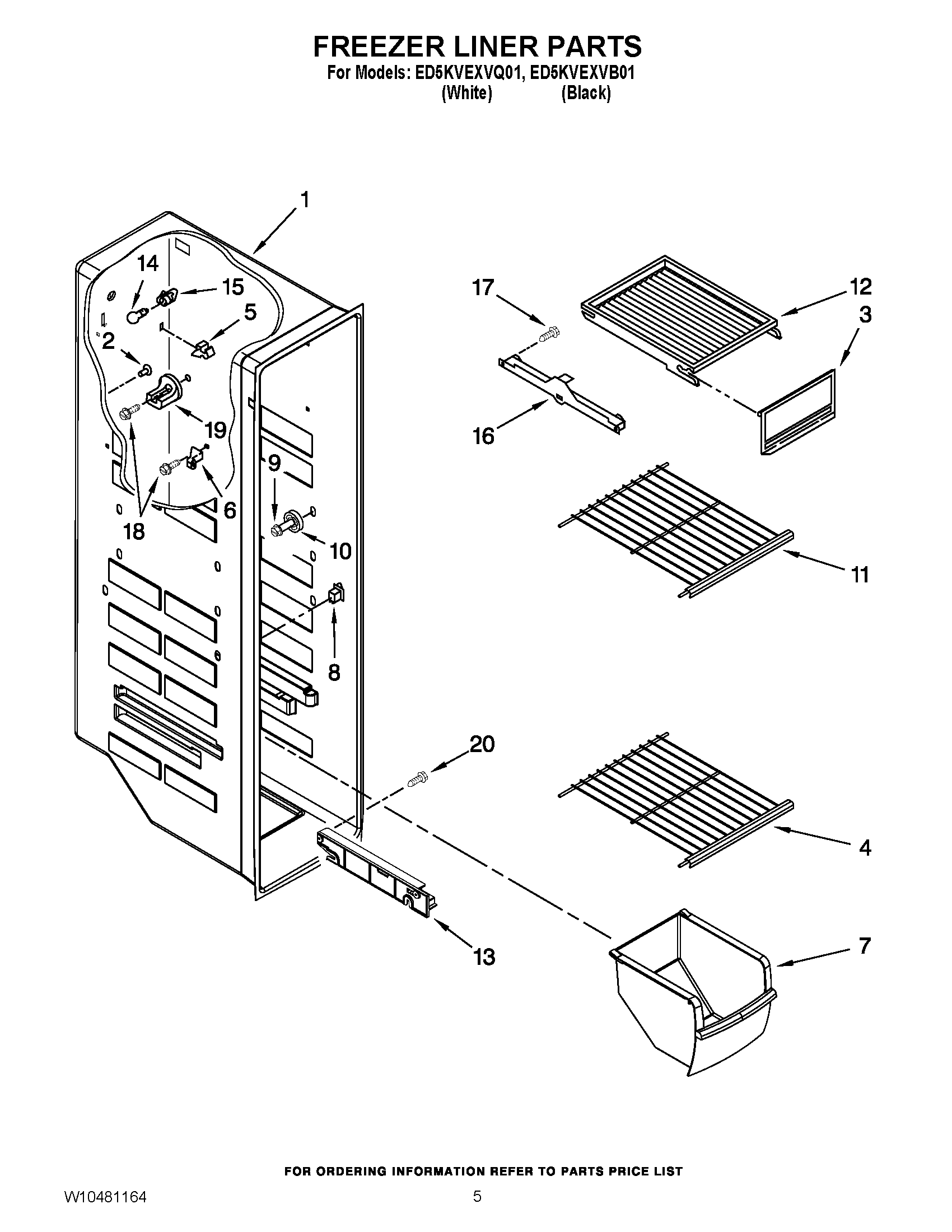

ED5KVEXVB01 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Grommet
3	WP2171713 Whirlpool Refrigerator Ice Door
4	WP2174267 Whirlpool Refrigerator Wire Shelf
5	2215823 Whirlpool Refrigerator Clip
6	4388405 Whirlpool Refrigerator Shelf Stud
7	WP2182971 Whirlpool Refrigerator Freezer Bin
8	W11457217 Whirlpool Refrigerator Rocker Switch Combination
9	WPW10191952 Whirlpool Refrigerator Screw
10	W11527119 Whirlpool Refrigerator Shelf Stud
11	Shelf (2)
12	Shelf, Top Compartment
13	WP2261449 Whirlpool Refrigerator Track
13	Slide, Basket (Left Side)
14	W11679940 Whirlpool Refrigerator Light Bulb Assembly
15	4387478 Whirlpool Refrigerator Light Socket
16	W10845585 Whirlpool Refrigerator Track
16	W10845583 Whirlpool Refrigerator Track
17	718257 Whirlpool Dishwasher Screw
18	W10142289 Whirlpool Air Conditioner Screw
19	Stud, Rear
20	W10759522 Whirlpool Screw
