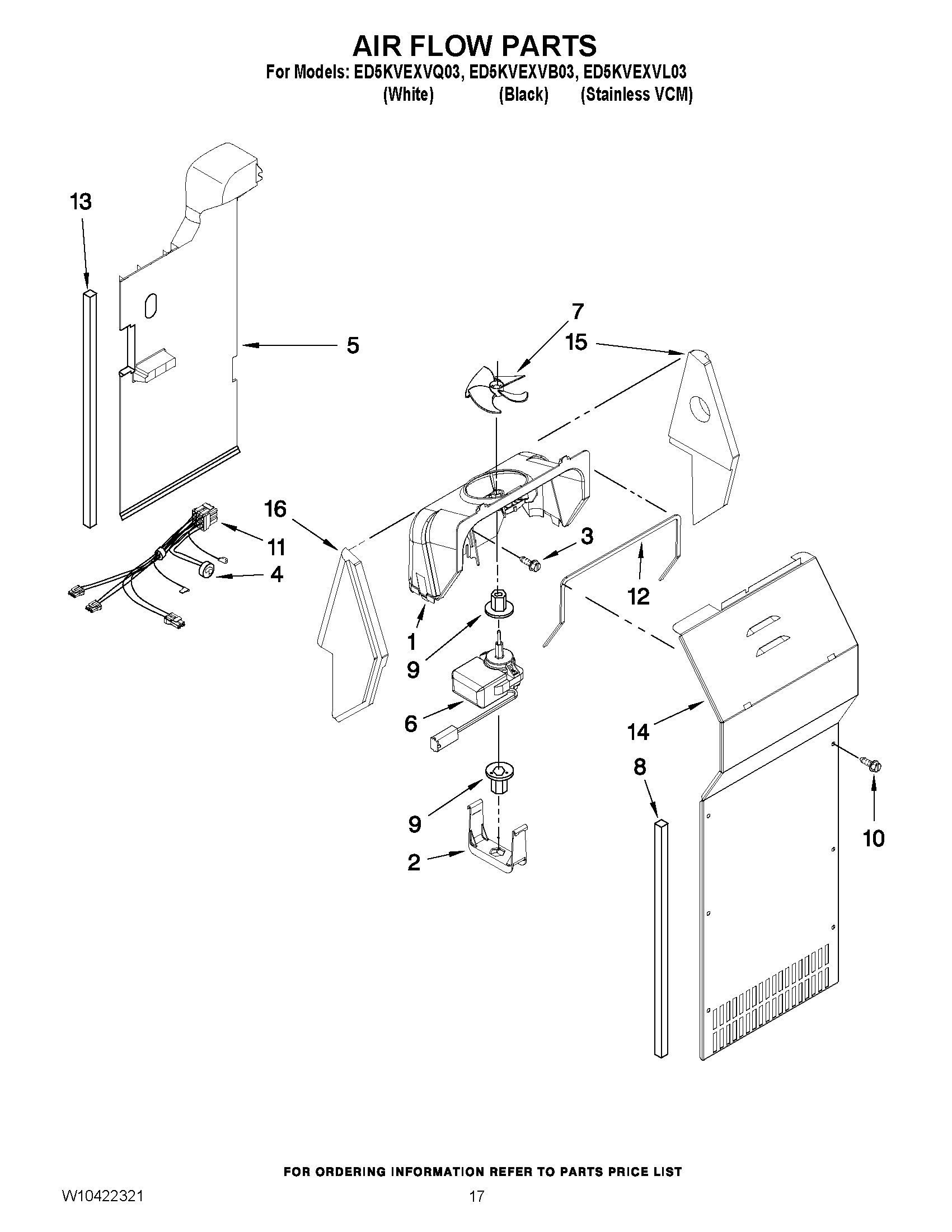

ED5KVEXVB03 10 – AIR FLOW PARTS

ED5KVEXVB03 10 – AIR FLOW PARTS

Written by

in

ED5KVEXVB03 10 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3WP489478 Whirlpool Refrigerator Screw
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5W10756902 Whirlpool Refrigerator Air Duct
64389144 Whirlpool Refrigerator Evaporator Fan Motor
7WP2169142 Whirlpool Fan Blade
8WP2304241 Whirlpool Refrigerator Gasket
9WP2176759 Whirlpool Refrigerator Grommet
104389654 Whirlpool Screw
11W11084324 Whirlpool Refrigerator Wire Harness
12WP2155789 Whirlpool Refrigerator Gasket
134388500 Whirlpool Refrigerator Gasket
14Cover, Evaporator
154388358 Whirlpool Refrigerator Support Bracket
