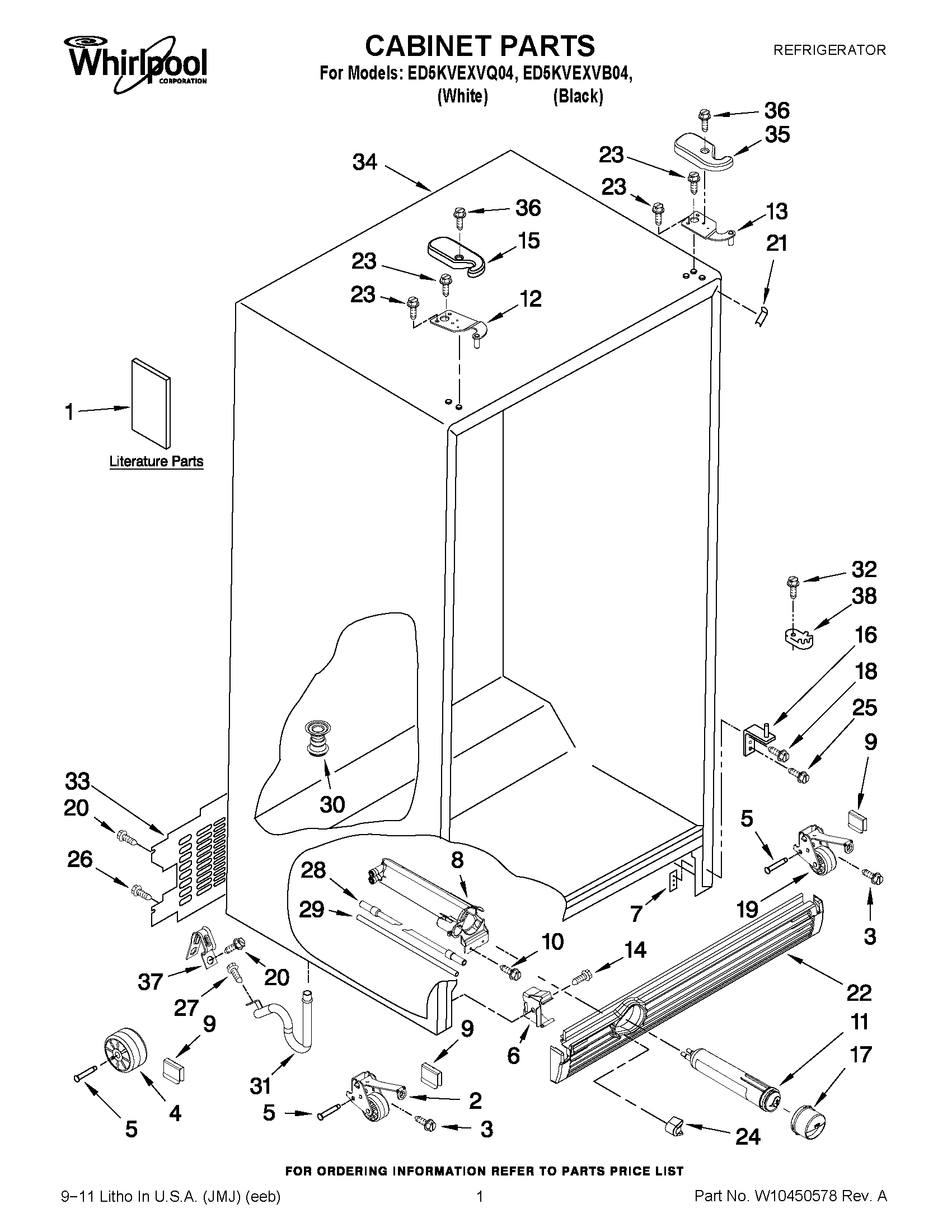

ED5KVEXVB04 01 – CABINET PARTSadmin2025-04-26T10:36:36+00:00ED5KVEXVB04 01 – CABINET PARTS ProductsPositionProduct1Service & Wiring Sheet1ENERGY LABEL1INSTRUCTION SHEET, DOOR REMOVAL1Modular Icemaker Service Sheet1USE & CARE GUIDE3WP489427 Whirlpool Refrigerator Screw4WPW10475495 Whirlpool Roller Assembly5WPW10250570 Whirlpool Refrigerator Cabinet Roller6WP2155013 Whirlpool Refrigerator Clip7SCREW PLATE8WPW10121138 Whirlpool Refrigerator Water Filter Housing9WP2174706 Whirlpool Refrigerator Pin Hitch10WP489500 Whirlpool Refrigerator Screw11FILTER 3-SINGLE TEAL12HINGE, TOP (FC)13W10242649 Whirlpool Refrigerator Door Hinge14WP489128 Whirlpool Refrigerator Screw15WP2203407B Whirlpool Refrigerator Cover15WP2203407W Whirlpool Refrigerator Cover16W10138965 Whirlpool Refrigerator Door Hinge17WP2260518B Whirlpool Water Filter Cap17WP2260518W Whirlpool Refrigerator Filter Cap18WP489497 Whirlpool Screw19Front Roller (2)20SCREW21Filler, Wrapper (White)21Filler, Wrapper (Black)22WPW10311032 Whirlpool Refrigerator Grille22WPW10311033 Whirlpool Refrigerator Grille24WP2260503B Whirlpool Refrigerator Button242260503W Whirlpool Refrigerator Button25W10856122 Whirlpool Refrigerator Screw26WP488488 Whirlpool Refrigerator Screw27WP489464 Whirlpool Refrigerator Screw28TUBE, FILTER INLET29WPW10350006 Whirlpool Refrigerator Water Tube30W11566763 Whirlpool Fitting31W11512417 Whirlpool Drain Connector32WP489483 Whirlpool Screw33WP2188755 Whirlpool Rear Panel34CABINET (NOT A SERVICEABLE PART)35WP2203408B Whirlpool Refrigerator Cover35WP2203408W Whirlpool Refrigerator Cover36WP8281227 Whirlpool Screw37549193 Whirlpool Refrigerator Power Clamp38WPW10329686 Whirlpool Door Cam Black
