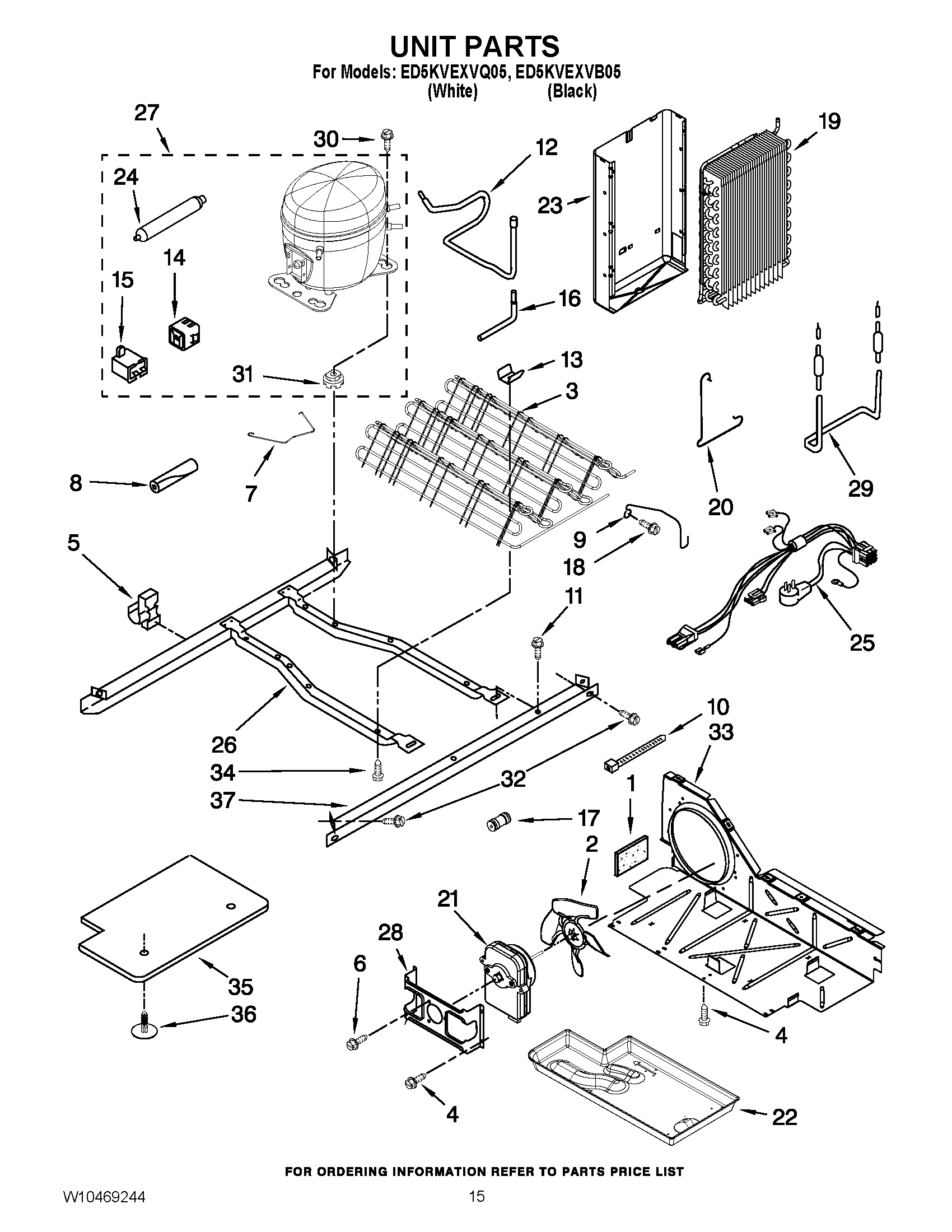

ED5KVEXVB05 09 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	2217070 Whirlpool Foam Kit
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	W10204187 Whirlpool Refrigerator Retainer
8	SLEEVE
9	2260517 Whirlpool Fan Guard
10	WPW10339879 Whirlpool Wire Tie
11	WP489427 Whirlpool Refrigerator Screw
12	WP2205765 Whirlpool Refrigerator Tube
13	W10683556 Whirlpool Refrigerator Clip
14	WPW10189190 Whirlpool Start Device
15	WPW10662129 Whirlpool Refrigerator Run Capacitor
16	W10858105 Whirlpool Refrigerator Tube
17	WPW10334458 Whirlpool Refrigerator Connector
18	WP489478 Whirlpool Refrigerator Screw
19	WP2188823 Whirlpool Refrigerator Evaporator
20	Clamp
21	WP2188874 Whirlpool Refrigerator Condenser Motor
22	WPW10614158 Whirlpool Refrigerator Evaporator Tray
23	Heat Shield
24	WPW10143759 Whirlpool Dryer Filter
25	WPW10309395 Whirlpool Refrigerator Wire Harness
26	W10196321 Whirlpool Refrigerator Frame
27	W10139462 Whirlpool Refrigerator Compressor
28	WP2181929 Whirlpool Refrigerator Bracket
29	WP2323198 Whirlpool Refrigerator Heater
31	876811 Whirlpool Grommet
32	489340 Whirlpool Refrigerator Screw
33	W10896764 Whirlpool Refrigerator Air Baffle
34	W11544659 Whirlpool Refrigerator Screw
35	Unit Cover, Bottom
36	489396 Whirlpool Refrigerator Clip
37	2305374 Whirlpool Refrigerator Unit Rail
