ED5KVEXVB06 02 – REFRIGERATOR LINER PARTS

ED5KVEXVB06 02 – REFRIGERATOR LINER PARTS

Written by

in

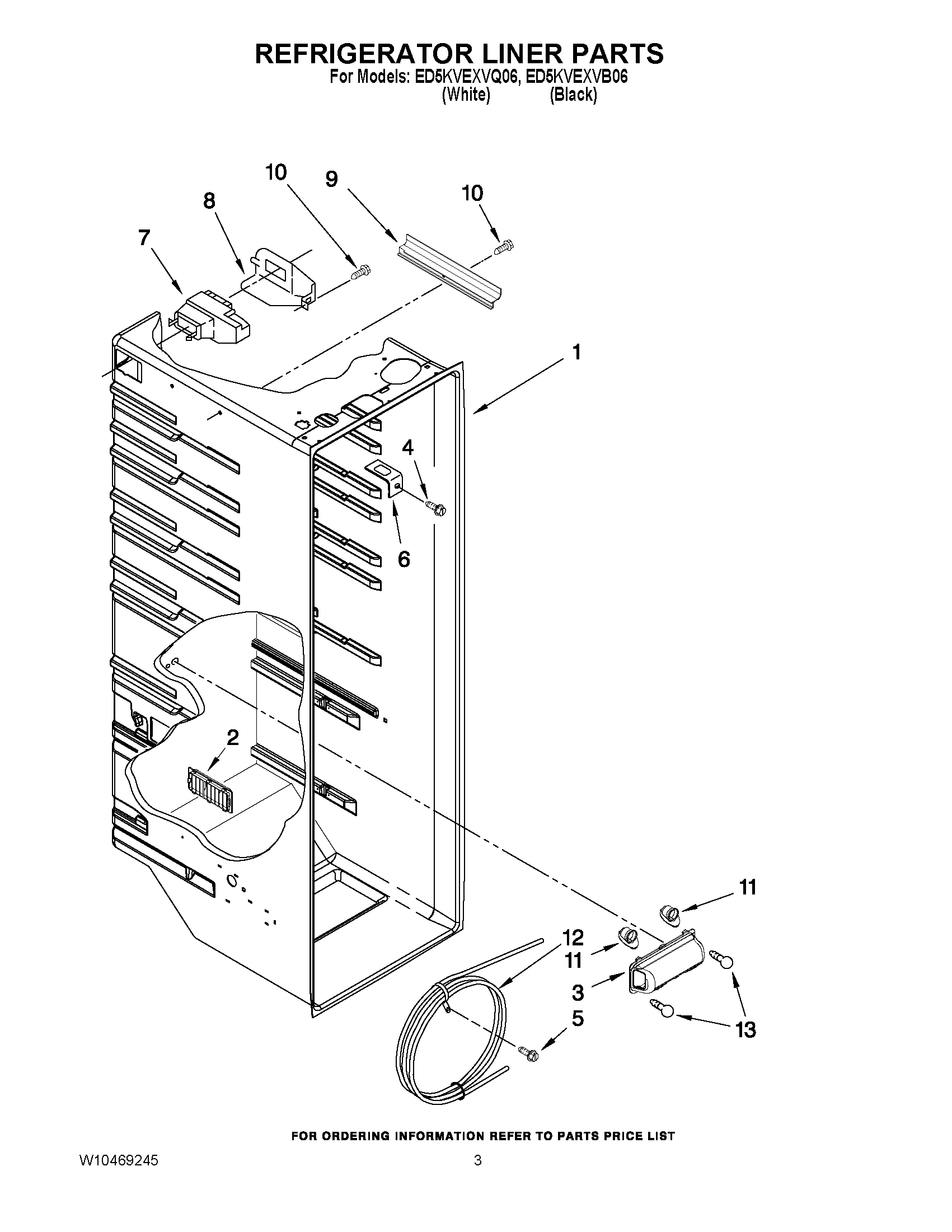

ED5KVEXVB06 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Louver
3W11239891 Whirlpool Refrigerator Light Lens
4WP488488 Whirlpool Refrigerator Screw
5W10141518 Whirlpool Refrigerator Screw
62311612 Whirlpool Refrigerator Clip
7WPW10151374 Whirlpool Refrigerator Diffuser
82152019 Whirlpool Refrigerator Cover
92150331 Whirlpool Refrigerator Wire Cover
10W10759522 Whirlpool Screw
114387478 Whirlpool Refrigerator Light Socket
12RESERVOIR
13W11679940 Whirlpool Refrigerator Light Bulb Assembly
