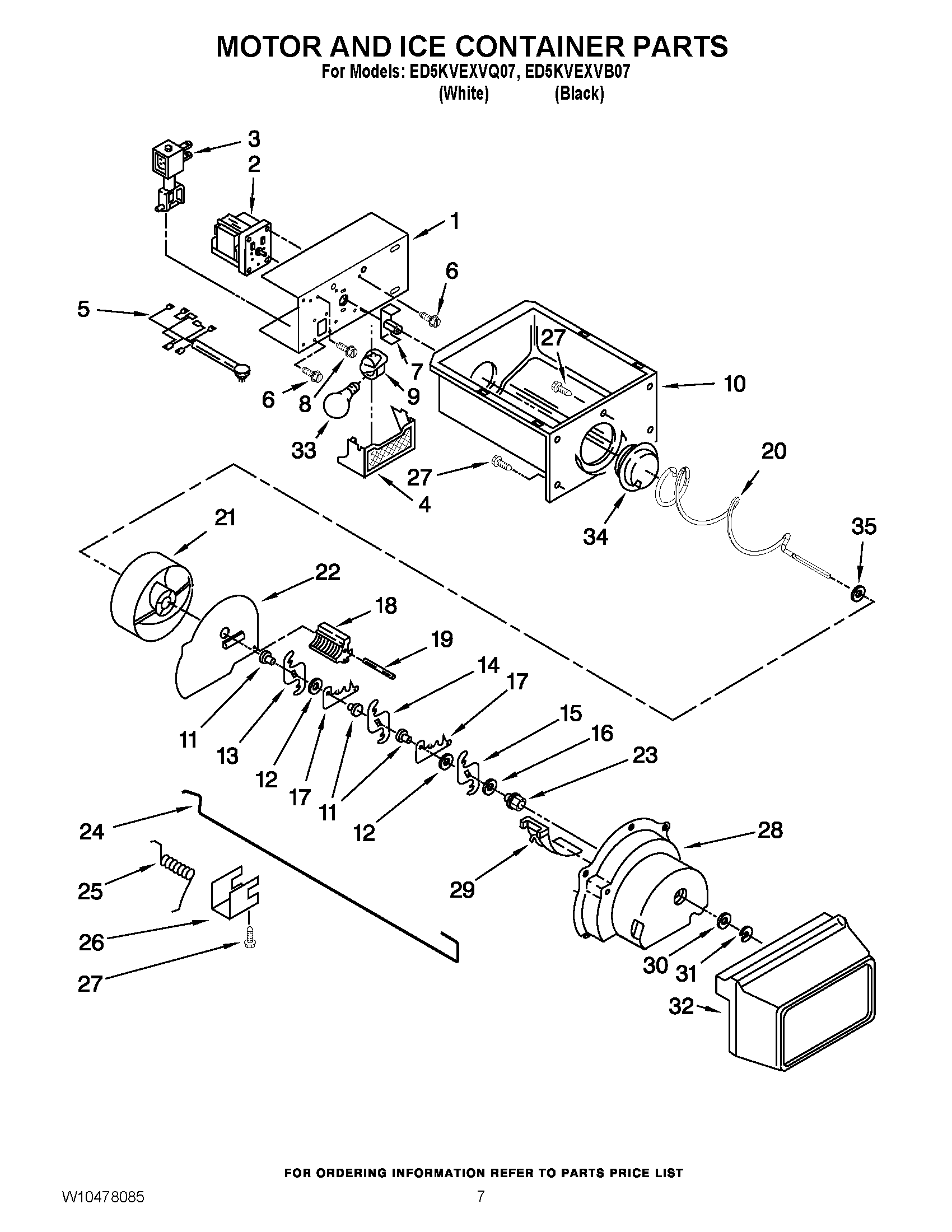

ED5KVEXVB07 05 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	BRACKET, MOTOR
2	WPW10317991 Whirlpool Refrigerator Motor
3	WP2152713 Whirlpool Refrigerator Solenoid
4	WP2171706 Whirlpool Refrigerator Light Lens
5	2311639 Whirlpool Refrigerator Dispenser Wiring Harness
6	WP489399 Whirlpool Refrigerator Screw
7	COUPLING AUGER MOTOR
8	WP489478 Whirlpool Refrigerator Screw
9	4387478 Whirlpool Refrigerator Light Socket
10	WPW10670845 Whirlpool Refrigerator Ice Container
11	WP1119005 Whirlpool Refrigerator Spacer
12	WP1119007 Whirlpool Refrigerator Spacer
13	W10278731 Whirlpool Refrigerator Blade
14	W10278732 Whirlpool Refrigerator Blade
15	W10278733 Whirlpool Refrigerator Blade
16	WP489235 Whirlpool Refrigerator Washer
17	BLADE, FIXED (2)
18	2157405 Whirlpool Refrigerator Blade Block
19	489229 Whirlpool Refrigerator Roll Pin
20	WPW10295082 Whirlpool Refrigerator Ice Auger
21	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
22	W10852691 Whirlpool Refrigerator Baffle
23	WP1119018 Whirlpool Refrigerator Bearing
24	W11596045 Whirlpool Refrigerator Control Arm
25	1119020 Whirlpool Refrigerator Spring
26	1119021 Whirlpool Refrigerator Clip
27	WP488787 Whirlpool Refrigerator Screw
28	WPW10185018 Whirlpool Refrigerator Housing
29	WP1119017 Whirlpool Refrigerator Deflector
30	489234 Whirlpool Refrigerator Washer
31	WP489236 Whirlpool Refrigerator Ring
32	FRONT COVER, ICE CONTAINER
33	W11679940 Whirlpool Refrigerator Light Bulb Assembly
34	W10749708 Whirlpool Refrigerator Coupling
35	WP2198661 Whirlpool Refrigerator Washer
100	WPW10312300 Whirlpool Refrigerator Ice Container
