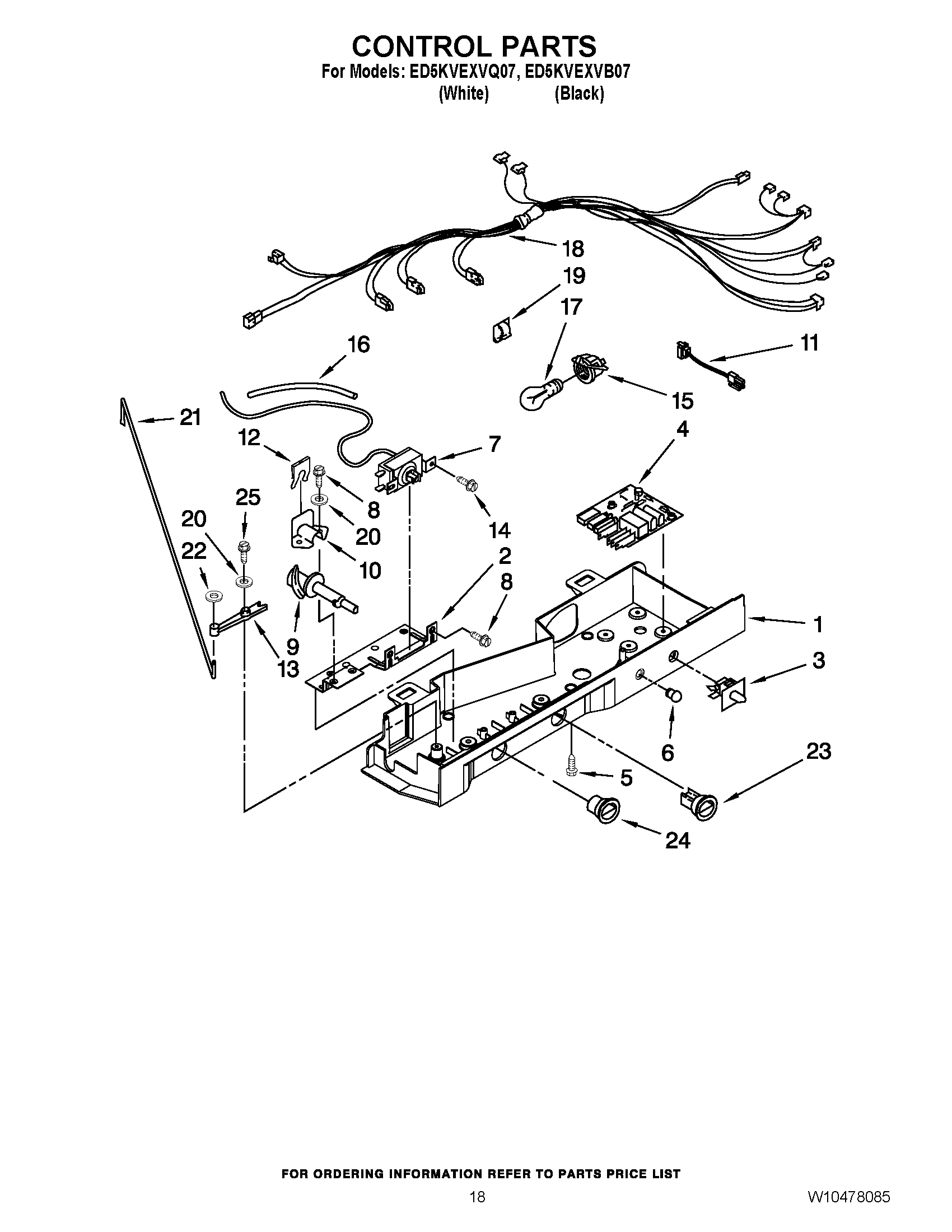

ED5KVEXVB07 11 – CONTROL PARTS

Products

Position	Product
1	W10159858 Whirlpool Refrigerator Control Box
2	2311611 Whirlpool Refrigerator Bracket
3	WP2149705 Whirlpool Refrigerator Door Switch
4	WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
5	489392 Whirlpool Refrigerator Screw
6	COVER, LIGHT LENS
7	WP2198202 Whirlpool Refrigerator Temperature Thermostat
8	WP3196557 Whirlpool Screw
9	WP2182195 Whirlpool Refrigerator Cam
10	1110560 Whirlpool Refrigerator Bearing
11	W10853646 Whirlpool Indicator Light
12	WP2196062 Whirlpool Refrigerator Clip
13	Pivot Arm
14	WP965173 Whirlpool Dishwasher Screw
15	4387478 Whirlpool Refrigerator Light Socket
16	WP2196003 Whirlpool Refrigerator Bar Riser
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	W10354806 Whirlpool Refrigerator Wire Harness
19	WP1115374 Whirlpool Refrigerator Clip
20	489203 Whirlpool Refrigerator Washer
21	2311631 Whirlpool Refrigerator Rod
22	Fastener, Push-On
23	W10723843 Whirlpool Refrigerator Thermostat Knob
24	2311615 Whirlpool Refrigerator Knob
25	627068 Whirlpool Refrigerator Screw
