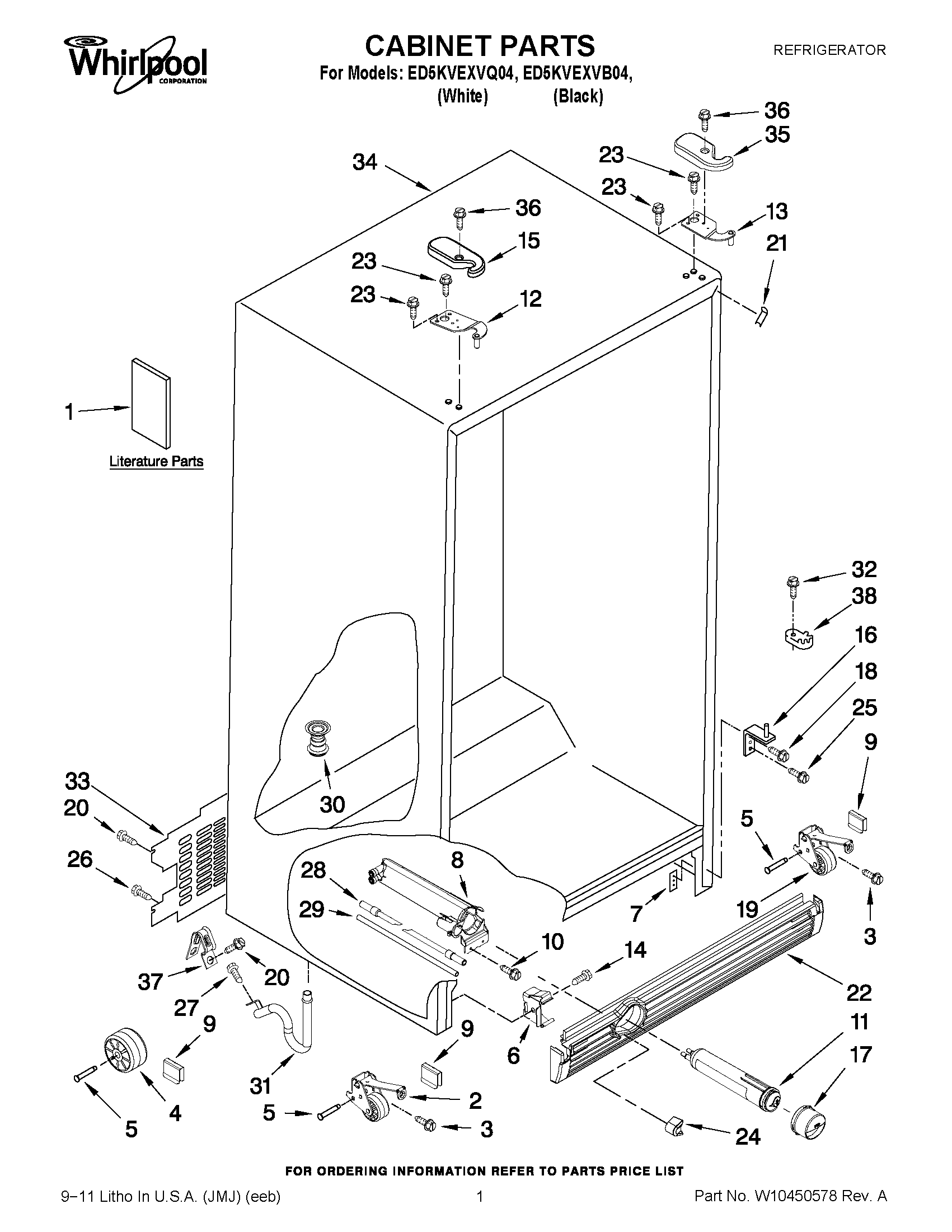

ED5KVEXVQ04 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	ENERGY LABEL
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Modular Icemaker Service Sheet
1	USE & CARE GUIDE
3	WP489427 Whirlpool Refrigerator Screw
4	WPW10475495 Whirlpool Roller Assembly
5	WPW10250570 Whirlpool Refrigerator Cabinet Roller
6	WP2155013 Whirlpool Refrigerator Clip
7	SCREW PLATE
8	WPW10121138 Whirlpool Refrigerator Water Filter Housing
9	WP2174706 Whirlpool Refrigerator Pin Hitch
10	WP489500 Whirlpool Refrigerator Screw
11	FILTER 3-SINGLE TEAL
12	HINGE, TOP (FC)
13	W10242649 Whirlpool Refrigerator Door Hinge
14	WP489128 Whirlpool Refrigerator Screw
15	WP2203407B Whirlpool Refrigerator Cover
15	WP2203407W Whirlpool Refrigerator Cover
16	W10138965 Whirlpool Refrigerator Door Hinge
17	WP2260518B Whirlpool Water Filter Cap
17	WP2260518W Whirlpool Refrigerator Filter Cap
18	WP489497 Whirlpool Screw
19	Front Roller (2)
20	SCREW
21	Filler, Wrapper (White)
21	Filler, Wrapper (Black)
22	WPW10311032 Whirlpool Refrigerator Grille
22	WPW10311033 Whirlpool Refrigerator Grille
24	WP2260503B Whirlpool Refrigerator Button
24	2260503W Whirlpool Refrigerator Button
25	W10856122 Whirlpool Refrigerator Screw
26	WP488488 Whirlpool Refrigerator Screw
27	WP489464 Whirlpool Refrigerator Screw
28	TUBE, FILTER INLET
29	WPW10350006 Whirlpool Refrigerator Water Tube
30	W11566763 Whirlpool Fitting
31	W11512417 Whirlpool Drain Connector
32	WP489483 Whirlpool Screw
33	WP2188755 Whirlpool Rear Panel
34	CABINET (NOT A SERVICEABLE PART)
35	WP2203408B Whirlpool Refrigerator Cover
35	WP2203408W Whirlpool Refrigerator Cover
36	WP8281227 Whirlpool Screw
37	549193 Whirlpool Refrigerator Power Clamp
38	WPW10329686 Whirlpool Door Cam Black
