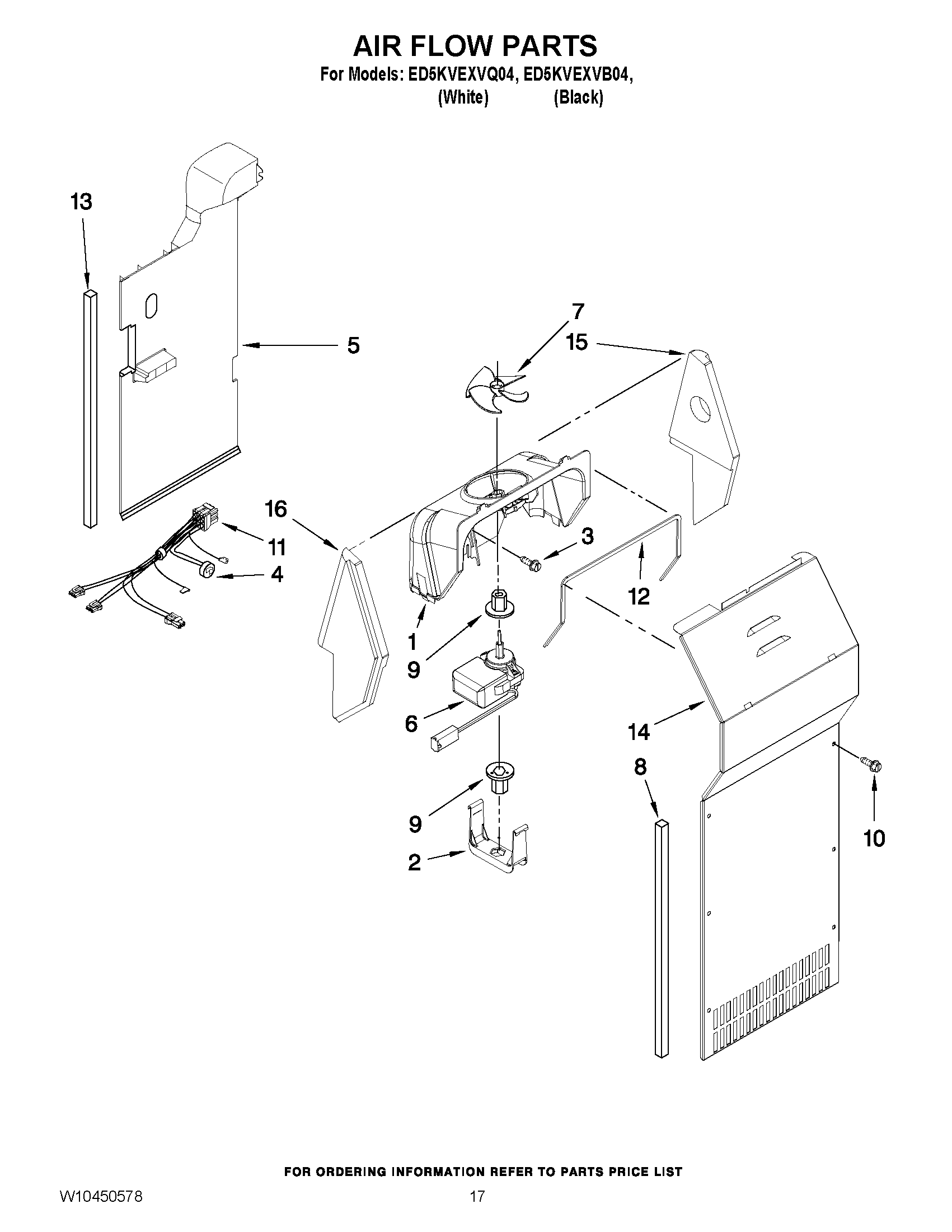

ED5KVEXVQ04 10 – AIR FLOW PARTS

ED5KVEXVQ04 10 – AIR FLOW PARTS

Written by

in

ED5KVEXVQ04 10 – AIR FLOW PARTS

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3WP489478 Whirlpool Refrigerator Screw
4WPW10225581 Whirlpool Refrigerator Defrost Thermostat
5W10756902 Whirlpool Refrigerator Air Duct
6FAN MOTOR
7WP2169142 Whirlpool Fan Blade
9WP2176759 Whirlpool Refrigerator Grommet
10WP693995 Whirlpool Screw
11W11084324 Whirlpool Refrigerator Wire Harness
12WP2155789 Whirlpool Refrigerator Gasket
13WP2304241 Whirlpool Refrigerator Gasket
14Cover, Evaporator (Includes 9)
154388358 Whirlpool Refrigerator Support Bracket
