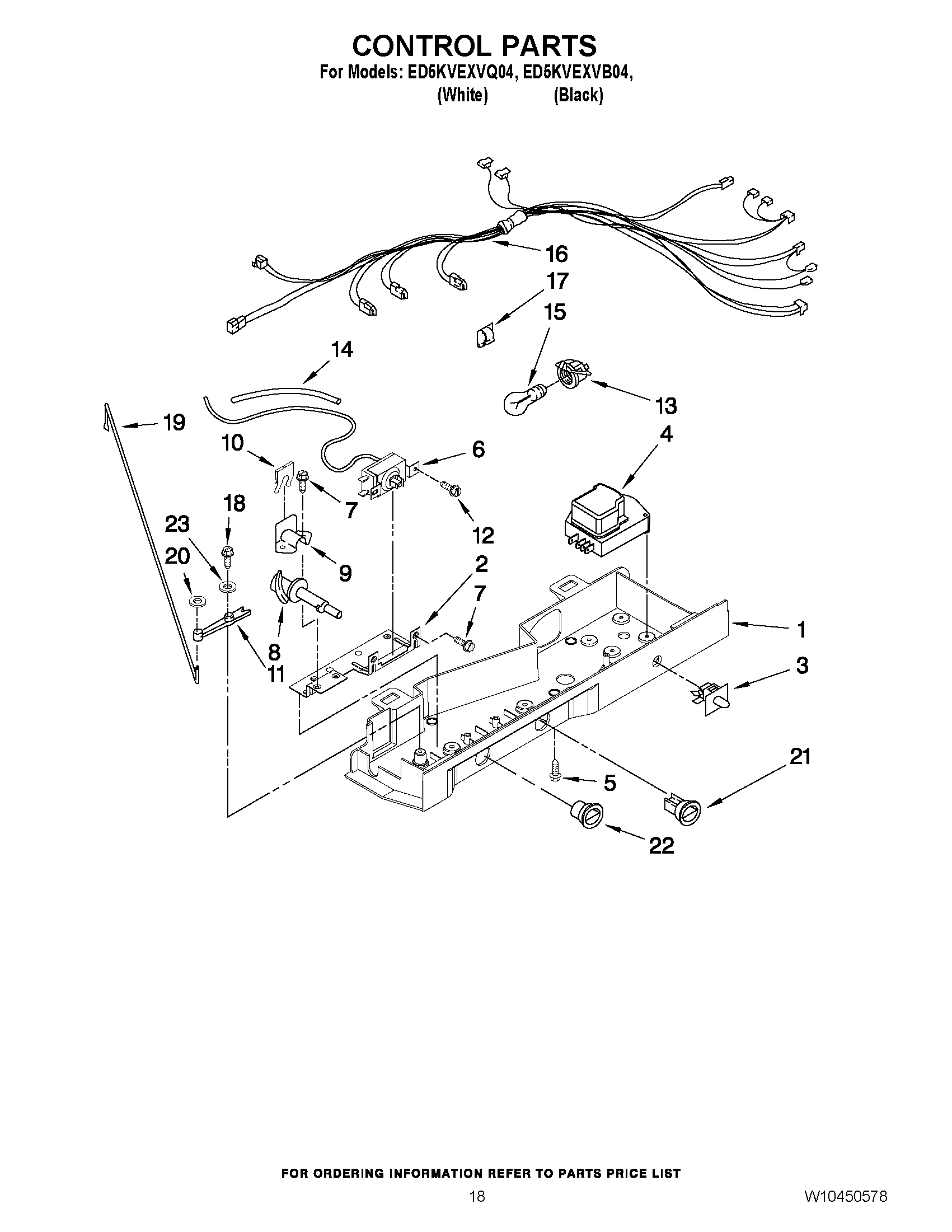

ED5KVEXVQ04 11 – CONTROL PARTS
Written by
in
ED5KVEXVQ04 11 – CONTROL PARTS
Products
Position
Product
1
W10159858 Whirlpool Refrigerator Control Box
2
2311611 Whirlpool Refrigerator Bracket
3
WP2149705 Whirlpool Refrigerator Door Switch
4
WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core
5
489392 Whirlpool Refrigerator Screw
6
WP2198202 Whirlpool Refrigerator Temperature Thermostat
7
WP3196557 Whirlpool Screw
8
WP2182195 Whirlpool Refrigerator Cam
9
1110560 Whirlpool Refrigerator Bearing
10
WP2196062 Whirlpool Refrigerator Clip
11
Pivot Arm
12
WP965173 Whirlpool Dishwasher Screw
13
4387478 Whirlpool Refrigerator Light Socket
14
WP2196003 Whirlpool Refrigerator Bar Riser
15
W11679940 Whirlpool Refrigerator Light Bulb Assembly
16
2311632 Whirlpool Refrigerator Wire Harness
17
WP1115374 Whirlpool Refrigerator Clip
18
627068 Whirlpool Refrigerator Screw
19
2311631 Whirlpool Refrigerator Rod
20
Fastener, Push-On
21
W10723843 Whirlpool Refrigerator Thermostat Knob
22
2311615 Whirlpool Refrigerator Knob
23
489203 Whirlpool Refrigerator Washer
←
