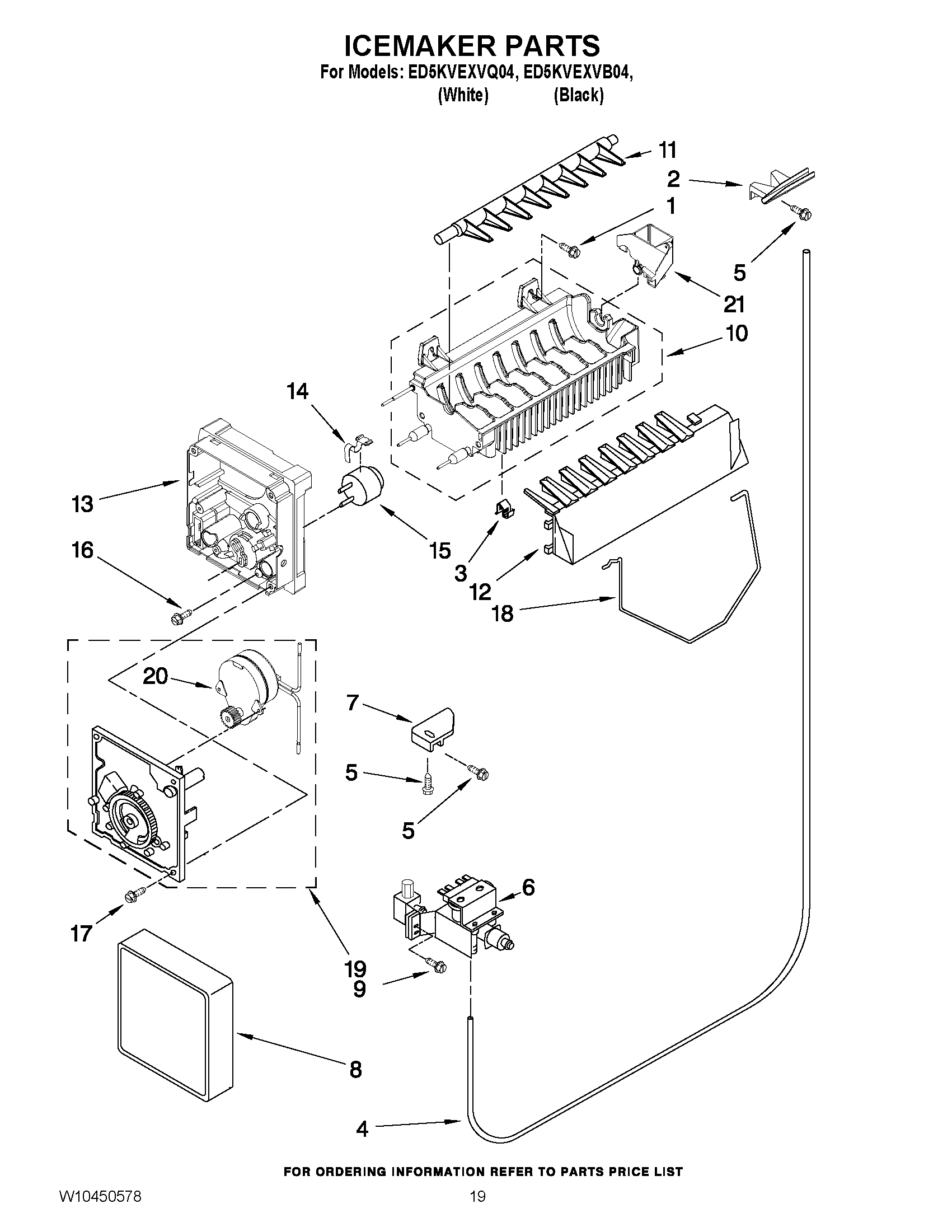

ED5KVEXVQ04 12 – ICEMAKER PARTSadmin2025-04-26T10:36:46+00:00ED5KVEXVQ04 12 – ICEMAKER PARTS ProductsPositionProduct2W11505385 Whirlpool Refrigerator Chute3WP628379 Whirlpool Refrigerator Clip4W10823511 Whirlpool Refrigerator Water Tube5WP489478 Whirlpool Refrigerator Screw6W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit7W11500948 Whirlpool Refrigerator Bracket8WPW10289690 Whirlpool Ice Maker Cover9WPW10141625 Whirlpool Refrigerator Screw Assembly10WPW10190929 Whirlpool Refrigerator Ice Maker Mold11WP627843 Whirlpool Refrigerator Ejector Arm12WPW10122563 Whirlpool Refrigerator Stripper Arm13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17WP681249 Whirlpool Screw Assembly18W11342242 Whirlpool Refrigerator Ice Level Arm198201515 Whirlpool Refrigerator Motor and Gear Module Kit20CABINET (NOT A SERVICEABLE PART)21W10122561 Whirlpool Refrigerator Cup Fill100WPW10190965 Whirlpool Refrigerator Ice Maker Assembly
