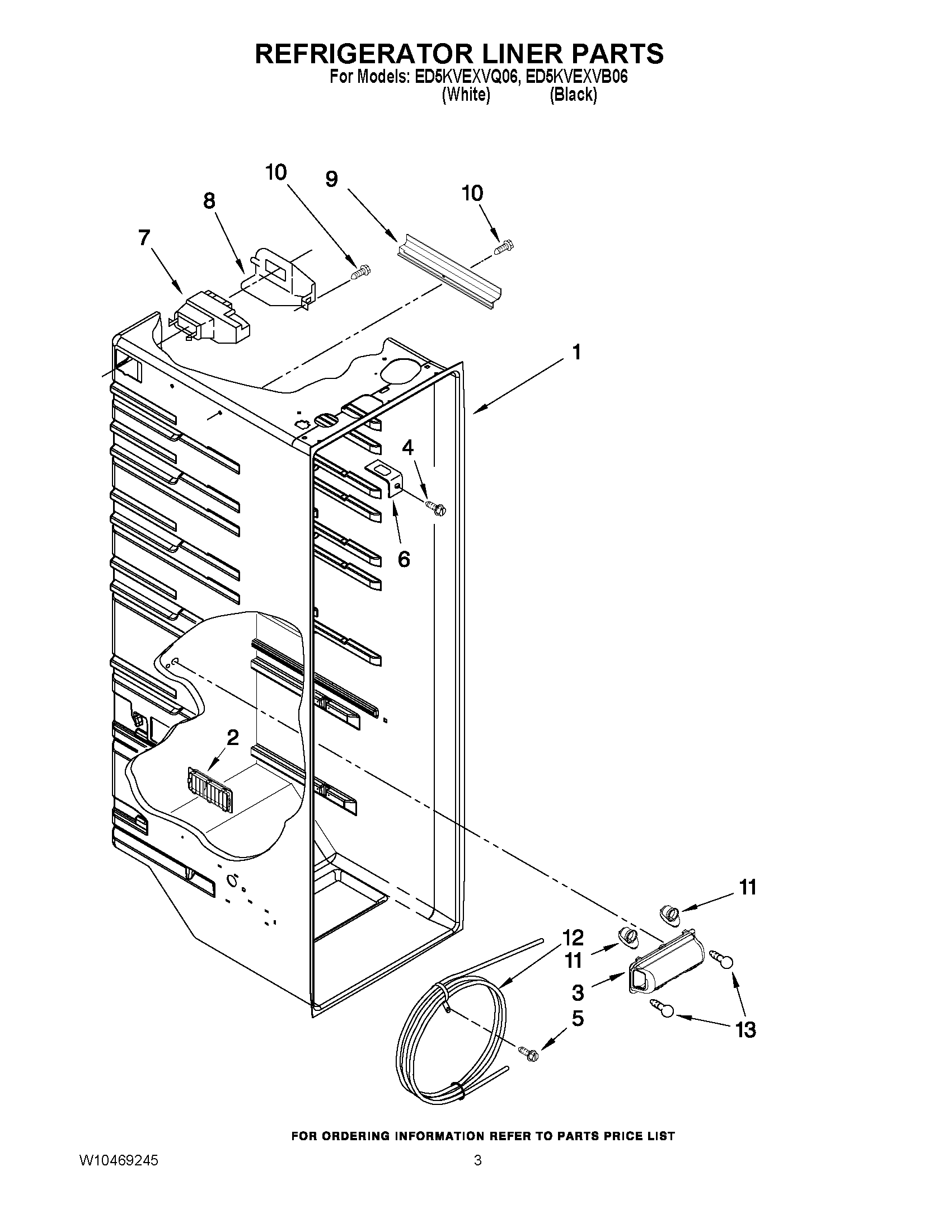

ED5KVEXVQ06 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	Louver
3	W11239891 Whirlpool Refrigerator Light Lens
4	WP488488 Whirlpool Refrigerator Screw
5	W10141518 Whirlpool Refrigerator Screw
6	2311612 Whirlpool Refrigerator Clip
7	WPW10151374 Whirlpool Refrigerator Diffuser
8	2152019 Whirlpool Refrigerator Cover
9	2150331 Whirlpool Refrigerator Wire Cover
10	W10759522 Whirlpool Screw
11	4387478 Whirlpool Refrigerator Light Socket
12	RESERVOIR
13	W11679940 Whirlpool Refrigerator Light Bulb Assembly
