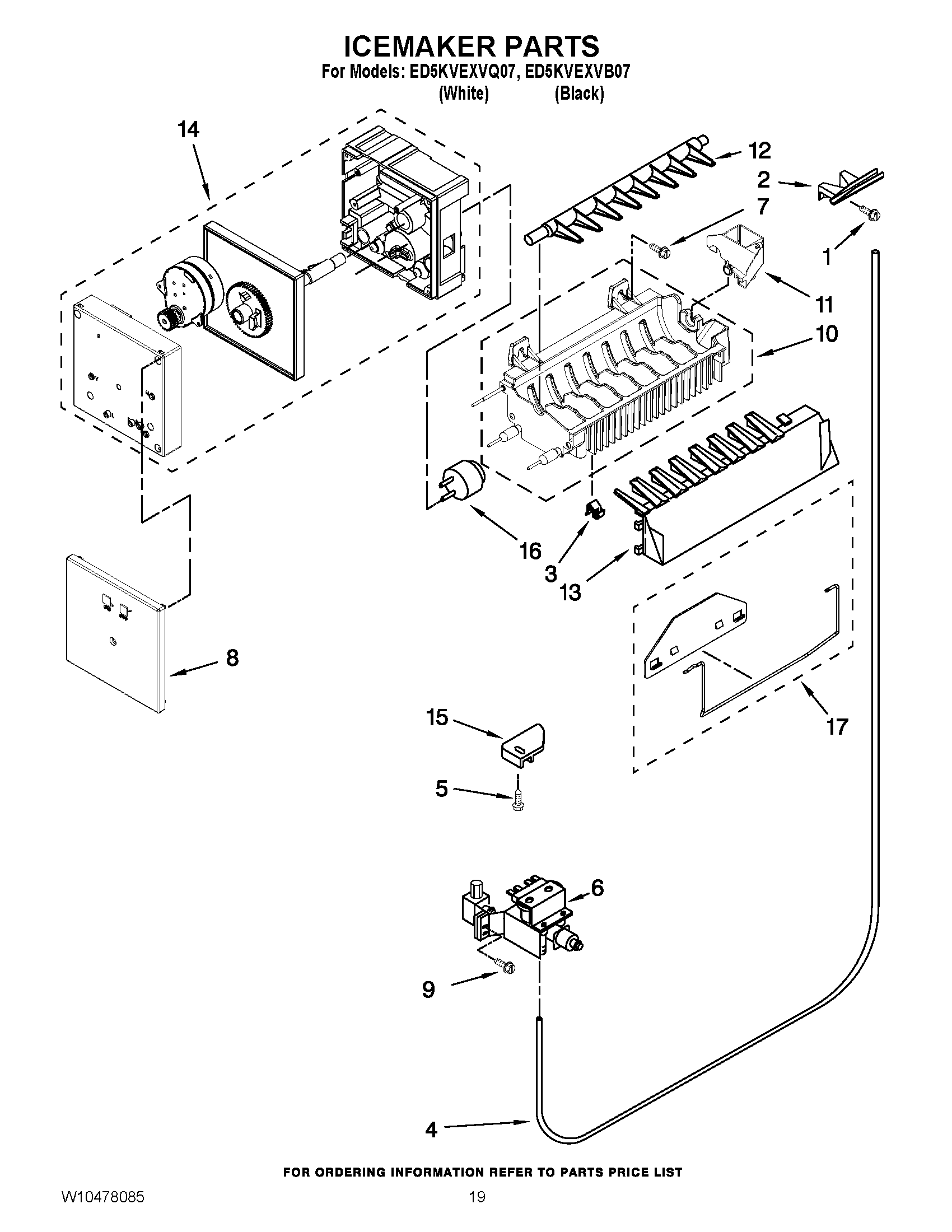

ED5KVEXVQ07 12 – ICEMAKER PARTS

Products

Position	Product
2	W11505385 Whirlpool Refrigerator Chute
3	WP628379 Whirlpool Refrigerator Clip
4	W10823511 Whirlpool Refrigerator Water Tube
5	WP489478 Whirlpool Refrigerator Screw
6	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
7	W10141596 Whirlpool Screw Assembly
8	W10377174 Whirlpool Refrigerator Front Cover
9	WPW10141625 Whirlpool Refrigerator Screw Assembly
10	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11	WPW10372171 Whirlpool Cup Fill
12	WP627843 Whirlpool Refrigerator Ejector Arm
13	WPW10122563 Whirlpool Refrigerator Stripper Arm
14	WPW10281342 Whirlpool Refrigerator Motor Module
15	W11500948 Whirlpool Refrigerator Bracket
16	WP627985 Whirlpool Icemaker Cycling Thermostat
17	SHUT OFF ARM ASSY
100	ICEMAKER
