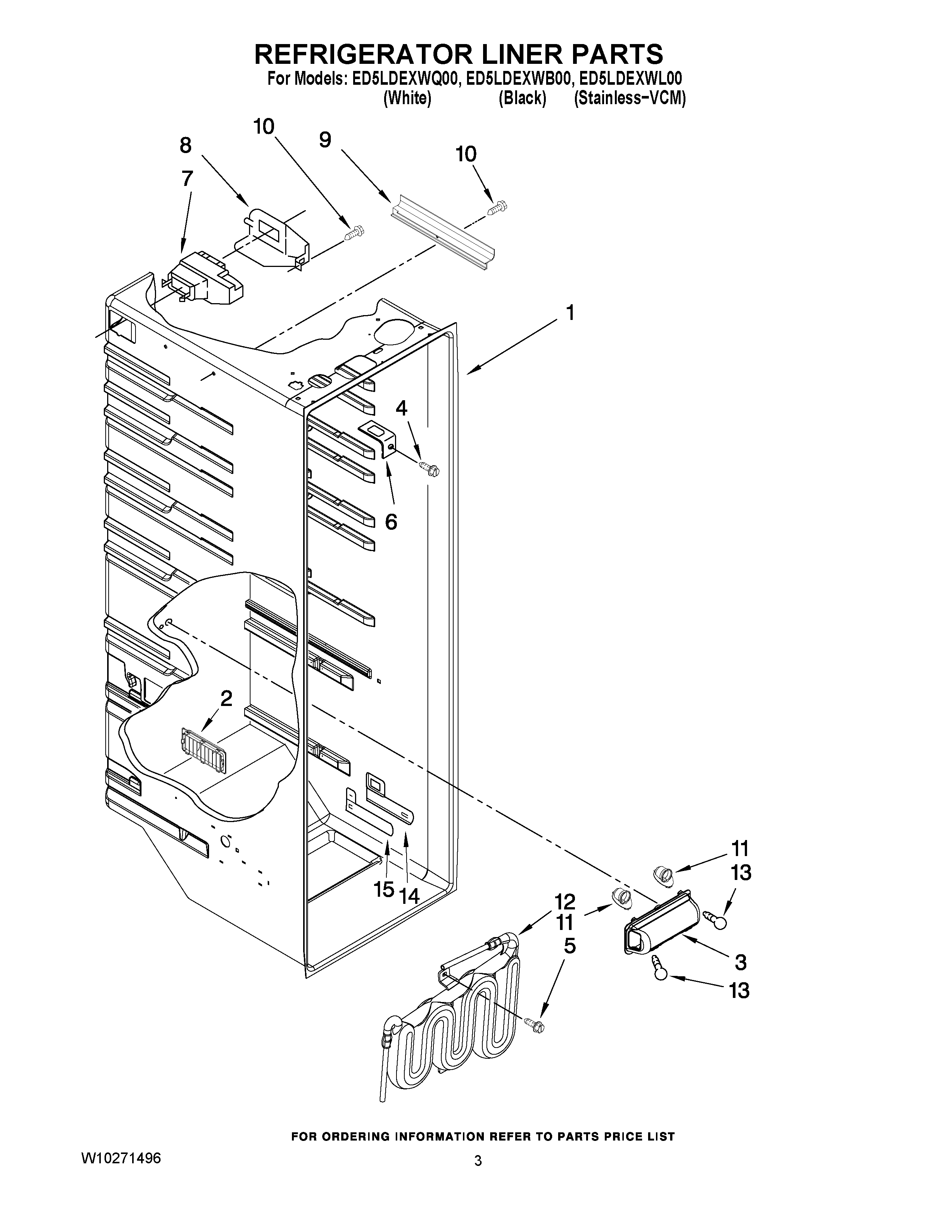

ED5LDEXWL00 02 – REFRIGERATOR LINER PARTS

ED5LDEXWL00 02 – REFRIGERATOR LINER PARTS

Written by

in

ED5LDEXWL00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2Louver
3W11239891 Whirlpool Refrigerator Light Lens
5Screw (2)
62311612 Whirlpool Refrigerator Clip
7WPW10151374 Whirlpool Refrigerator Diffuser
82152019 Whirlpool Refrigerator Cover
92150331 Whirlpool Refrigerator Wire Cover
10W10759522 Whirlpool Screw
114387478 Whirlpool Refrigerator Light Socket
12RESERVOIR
13RANGE ONLY 40W 120V APPL BULB
14W10175967 Whirlpool Refrigerator Escutcheon
152182757 Whirlpool Refrigerator Slide
