ED5LHAXMB10 12 – ICEMAKER PARTS – PARTS NOT ILLUSTRATED

ED5LHAXMB10 12 – ICEMAKER PARTS – PARTS NOT ILLUSTRATED

Written by

in

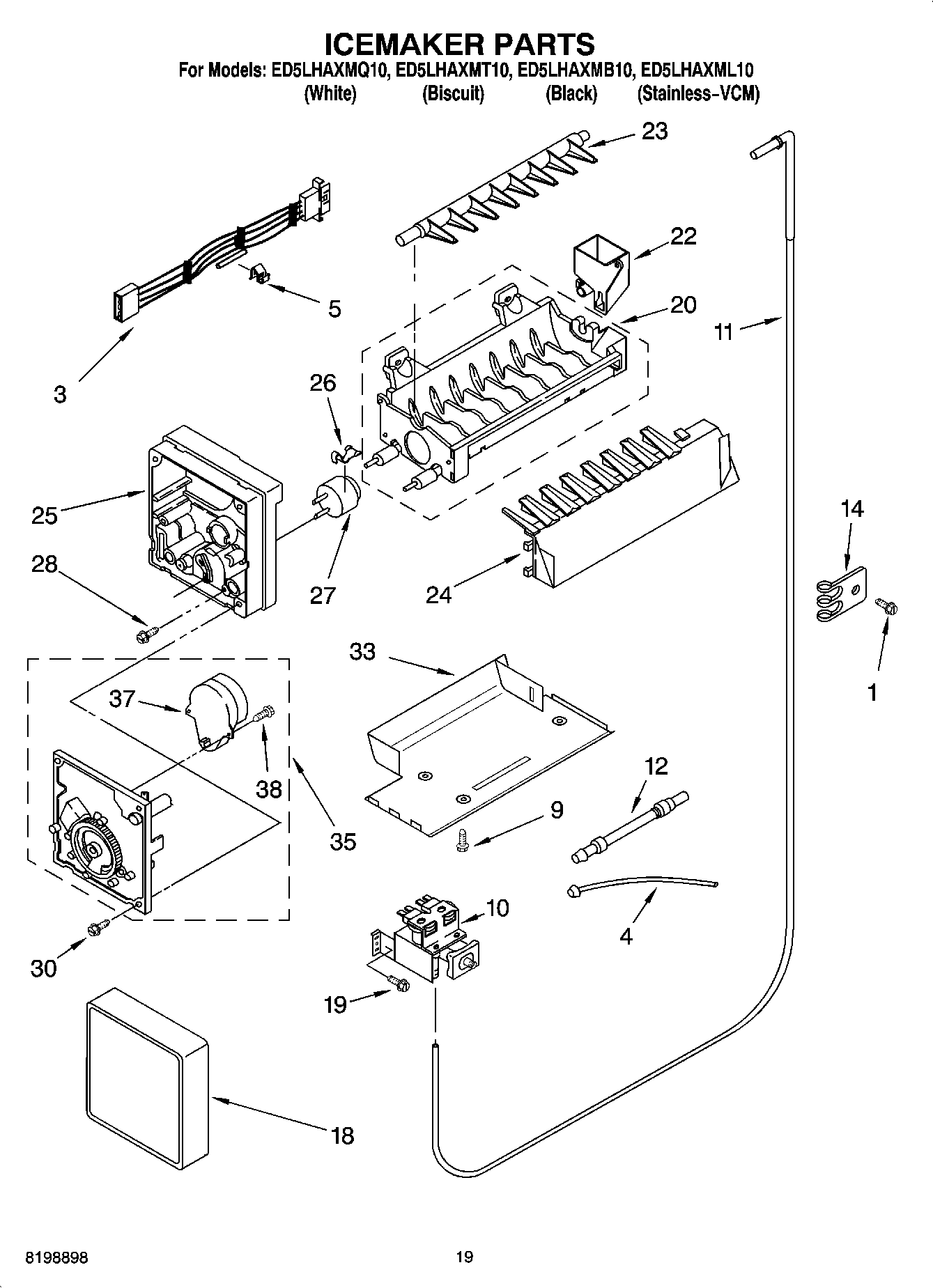

ED5LHAXMB10 12 – ICEMAKER PARTS – PARTS NOT ILLUSTRATED

Products

Position	Product
3	WP2187467 Whirlpool Refrigerator Wire Harness
4	WPW10350006 Whirlpool Refrigerator Water Tube
5	WP628379 Whirlpool Refrigerator Clip
9	WP489478 Whirlpool Refrigerator Screw
10	W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
11	WP2256096 Whirlpool Refrigerator Fitting
12	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
14	WP488366 Whirlpool Refrigerator Clamp
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	W10297244 Whirlpool Refrigerator Arm Strip
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
33	WP2212322 Whirlpool Refrigerator Bracket
35	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
100	212643 Whirlpool Refrigerator Permagum Sealer
100	350930 Whirlpool White Spray Paint
100	285006 Whirlpool Spray
100	72032 Whirlpool Touch Up Paint Black
100	Almond (Uncut)
100	WP72107 Whirlpool Touchup
100	606755 Whirlpool Refrigerator Bag
100	799344 Whirlpool Refrigerator Paint
100	72017 Whirlpool Appliance Touch-Up Paint White
100	WP2258243 Whirlpool Refrigerator Ice Container
100	350956 Whirlpool Spray Assembly
100	2198597 Whirlpool Refrigerator Ice Maker
100	WPL 876029
100	WPL 799833
100	Enamel, Black (1 Qt. Uncut)
100	350942 Whirlpool Spray Paint
100	4392899 Whirlpool Biscuit Touch-Up Paint
100	4392901 Whirlpool Biscuit Spray Paint
100	511873 Whirlpool Refrigerator Paint
100	833938 Whirlpool Refrigerator Terminal
100	876370 Whirlpool Refrigerator Insulation
100	WP503695 Whirlpool Refrigerator Sealer
100	WP505587 Whirlpool Refrigerator Sealer
100	WP542638 Whirlpool Refrigerator Grease
100	Torx Key
100	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
100	CEMENT, ALUMILASTIC (1 1/4 OZ.)
100	TAPE, VINYL (3/4 X 108“)
