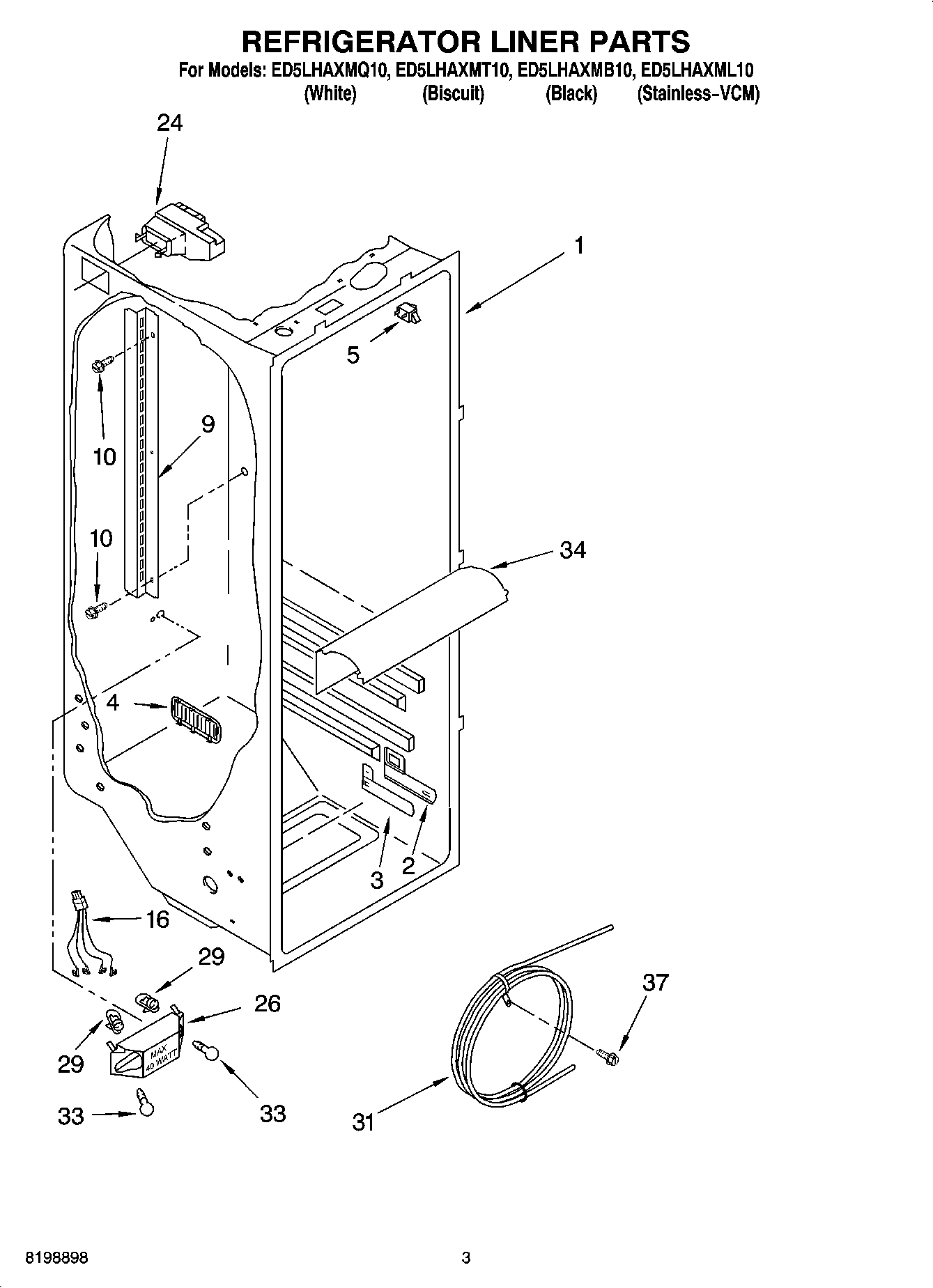

ED5LHAXML10 02 – REFRIGERATOR LINER PARTS

ED5LHAXML10 02 – REFRIGERATOR LINER PARTS

Written by

in

ED5LHAXML10 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11384469 Whirlpool Door Switch
9Ladder, Shelf
10WP488729 Whirlpool Refrigerator Door Screw
162311637 Whirlpool Refrigerator Wire Harness
24WPW10151374 Whirlpool Refrigerator Diffuser
26Bracket, Dual Crisper Light
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
37Screw (2)
