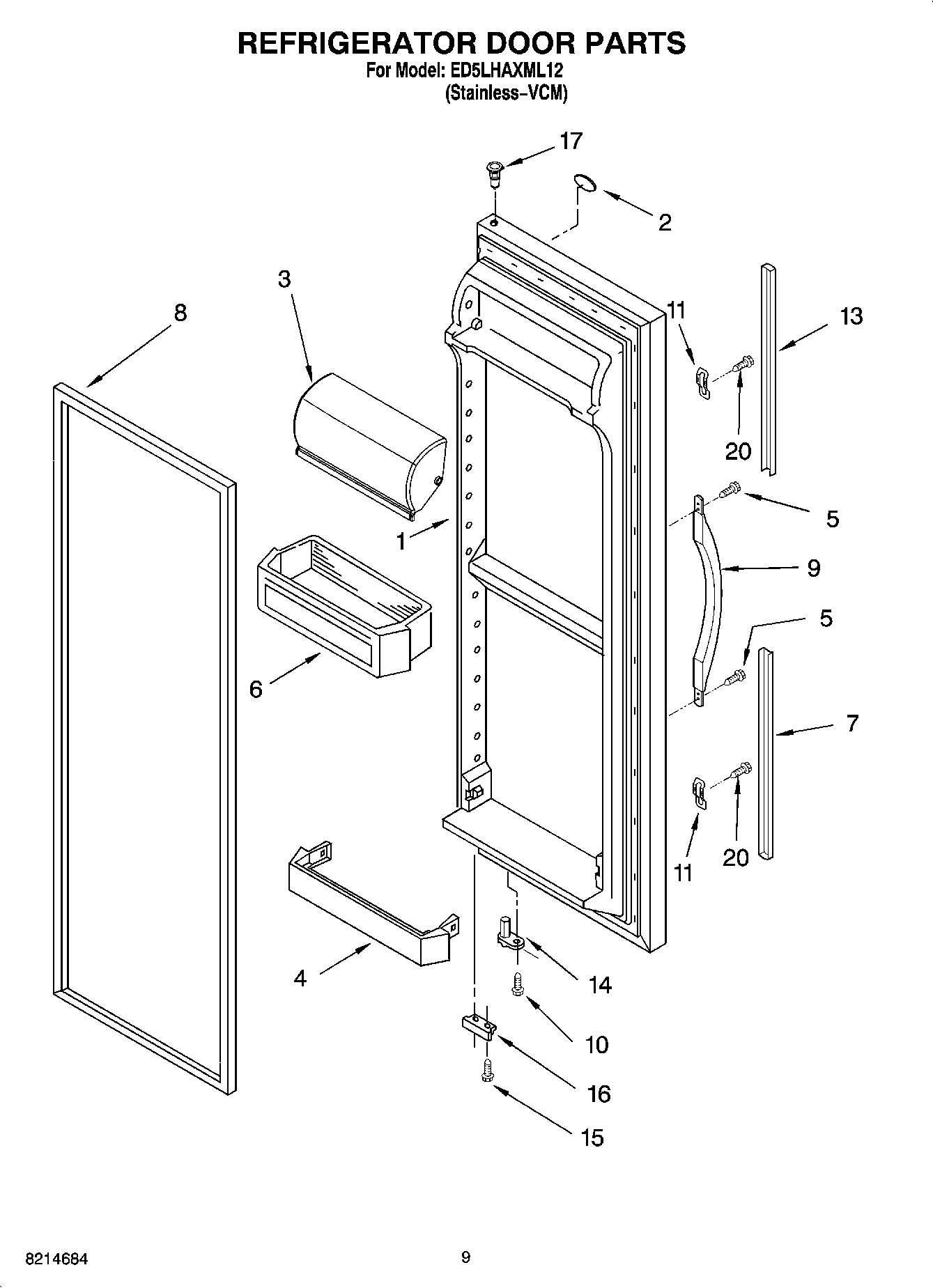

ED5LHAXML12 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Stainless-VCM)
2WP2213265 Whirlpool Refrigerator Nameplate
3WP2256101 Whirlpool Dairy Door
4WP2156022 Whirlpool Refrigerator Door Trim
5WP489491 Whirlpool Refrigerator Screw
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7WP2194969B Whirlpool Refrigerator Handle Trim
82159083 Whirlpool Gasket Door
9WP2186649B Whirlpool Refrigerator Handle
10WP3400012 Whirlpool Refrigerator Screw
11WP2195327 Whirlpool Refrigerator Clip
13Extension, Top (Black)
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16WP2206629B Whirlpool Refrigerator Bracket
17WP2182181 Whirlpool Refrigerator Thimble
20WP3400852 Whirlpool Refrigerator Screw
