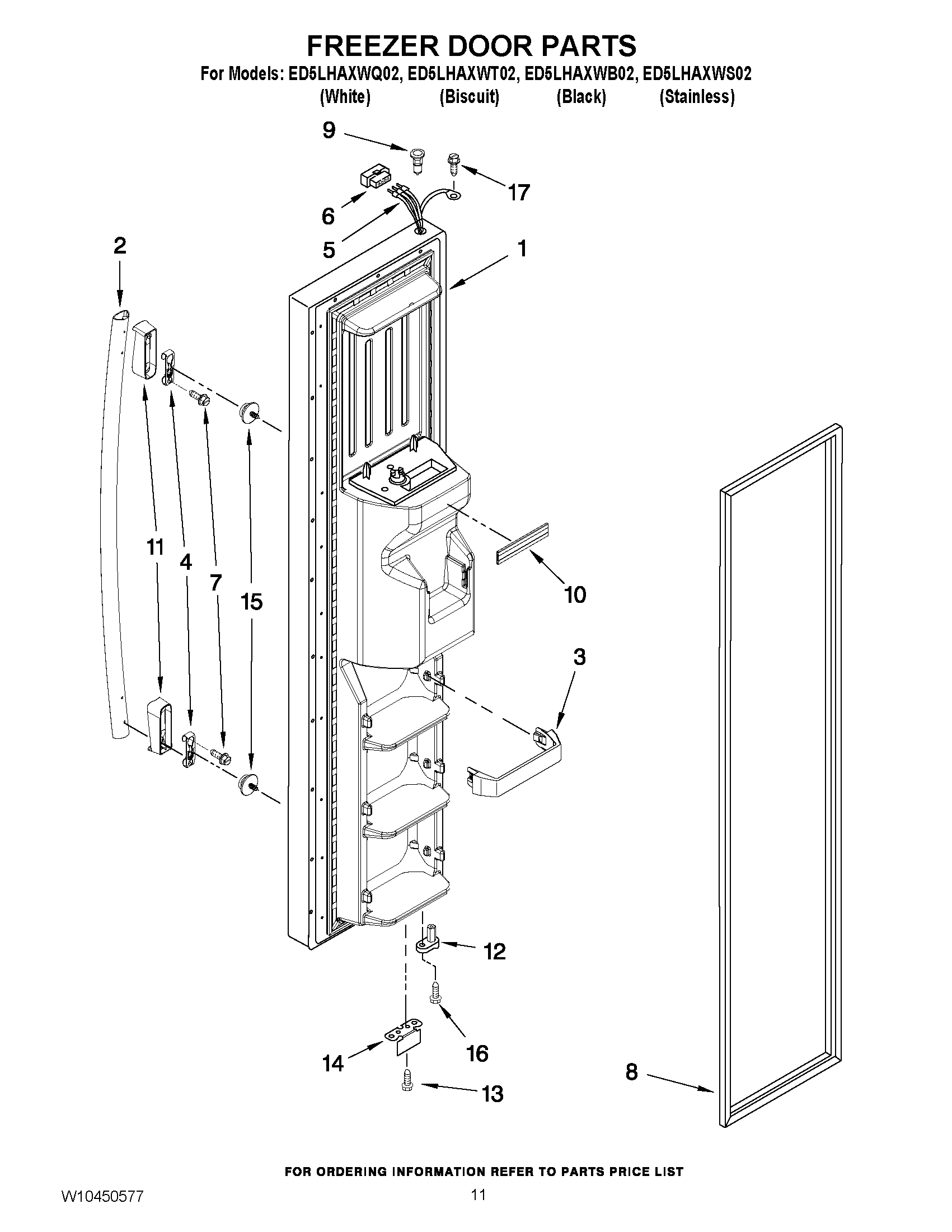

ED5LHAXWB02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BISCUIT)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
2	WPW10127762 Whirlpool Refrigerator Handle
2	WPW10127761K Whirlpool Refrigerator Handle
2	WPW10127763 Whirlpool Refrigerator Handle
2	WPW10257118K Whirlpool Refrigerator Handle
3	WP2309718 Whirlpool Refrigerator Door Trim
4	WP2255411 Whirlpool Refrigerator Clip
5	2198619 Whirlpool Refrigerator Wire Harness
6	WP2154473 Whirlpool Refrigerator Connector
7	WP8533988 Whirlpool Screw Fastener
8	2159075 Whirlpool Door Gasket Seal
8	2159083 Whirlpool Gasket Door
9	WP2182181 Whirlpool Refrigerator Thimble
10	WPW10307490 Whirlpool Door Trim Assembly
11	Endcap (Biscuit)
11	End Cap (Apollo Grey)
11	Endcap (Black)
11	W10127769 Whirlpool Refrigerator Handle End Cap
12	WP2182179 Whirlpool Cam Closer
13	SCREW
14	BRACKET, DOOR STOP
14	W10219813 Whirlpool Bracket Assembly
15	WPW10288153 Whirlpool Refrigerator Screw
16	WP3400012 Whirlpool Refrigerator Screw
17	WP489128 Whirlpool Refrigerator Screw
