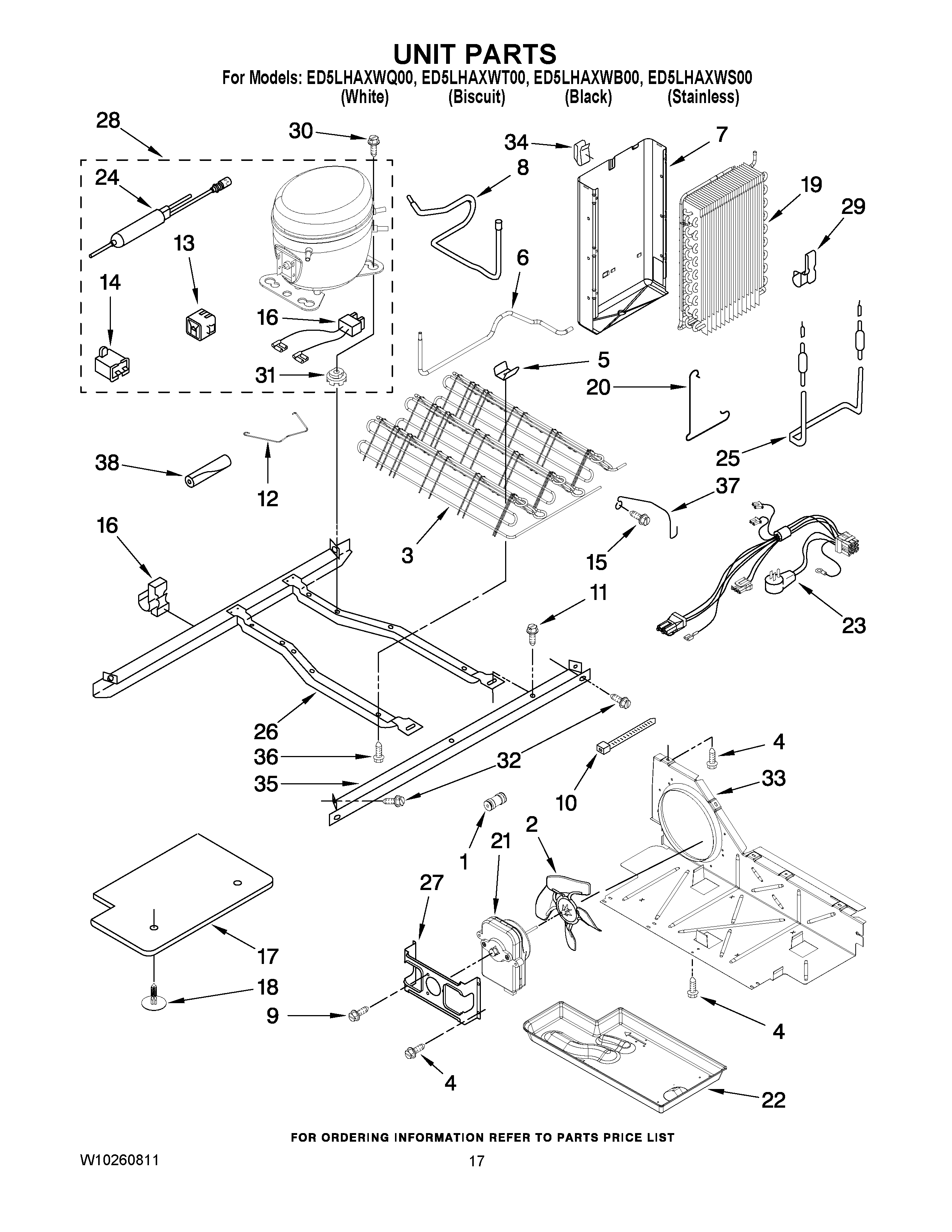

ED5LHAXWS00 11 – UNIT PARTS

ED5LHAXWS00 11 – UNIT PARTS

Written by

in

ED5LHAXWS00 11 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	W10210786 Whirlpool Refrigerator Tube
7	W10194475 Whirlpool Refrigerator Shield
8	W10274306 Whirlpool Refrigerator Tube
9	WP8533993 Whirlpool Refrigerator Screw
10	WPW10339879 Whirlpool Wire Tie
11	WP489427 Whirlpool Refrigerator Screw
12	W11661170 Whirlpool Clip
13	WPW10189190 Whirlpool Start Device
14	WPW10662129 Whirlpool Refrigerator Run Capacitor
15	WP489478 Whirlpool Refrigerator Screw
16	Clip, Wire & Tube
17	Unit Cover, Bottom
18	489396 Whirlpool Refrigerator Clip
19	WP2188823 Whirlpool Refrigerator Evaporator
20	Clamp
21	WP2188874 Whirlpool Refrigerator Condenser Motor
22	WPW10614158 Whirlpool Refrigerator Evaporator Tray
23	WPW10309395 Whirlpool Refrigerator Wire Harness
24	WPW10143759 Whirlpool Dryer Filter
25	WP2323198 Whirlpool Refrigerator Heater
26	W10196321 Whirlpool Refrigerator Frame
27	WP2181929 Whirlpool Refrigerator Bracket
28	W10233961 Whirlpool Refrigerator Compressor
29	W11623163 Whirlpool Refrigerator Clip
30	SCREW
31	876811 Whirlpool Grommet
31	W11661108 Whirlpool Grommet
32	489340 Whirlpool Refrigerator Screw
33	Air Baffle
34	Clip, Heat Shield
35	WPW10196323 Whirlpool Refrigerator Rail Assembly
36	W11544659 Whirlpool Refrigerator Screw
37	2260517 Whirlpool Fan Guard
38	SLEEVE
