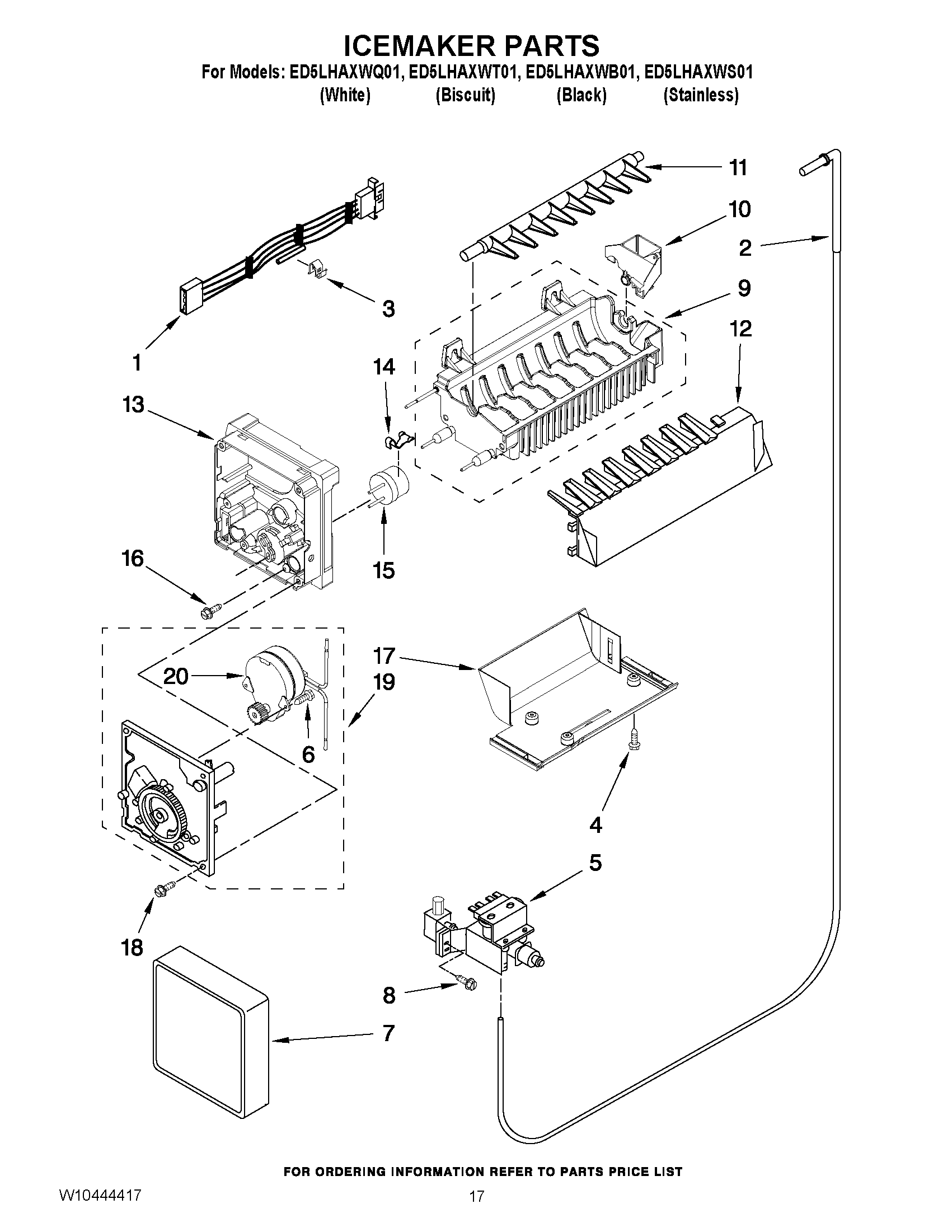

ED5LHAXWS01 11 – ICEMAKER PARTS

ED5LHAXWS01 11 – ICEMAKER PARTS

Written by

in

ED5LHAXWS01 11 – ICEMAKER PARTS

Products

PositionProduct
1W11643622 Whirlpool Wire Harness
2Fitting, Water Tube
3WP628379 Whirlpool Refrigerator Clip
4WP489478 Whirlpool Refrigerator Screw
5W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
6489136 Whirlpool Refrigerator Screw
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10WPW10272168 Whirlpool Refrigerator Water Fill Cup
11WP627843 Whirlpool Refrigerator Ejector Arm
12WPW10272161 Whirlpool Refrigerator Stripper Arm
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17BRACKET, ICEMAKER MOUNTING
18WP681249 Whirlpool Screw Assembly
208201515 Whirlpool Refrigerator Motor and Gear Module Kit
1002198597 Whirlpool Refrigerator Ice Maker
