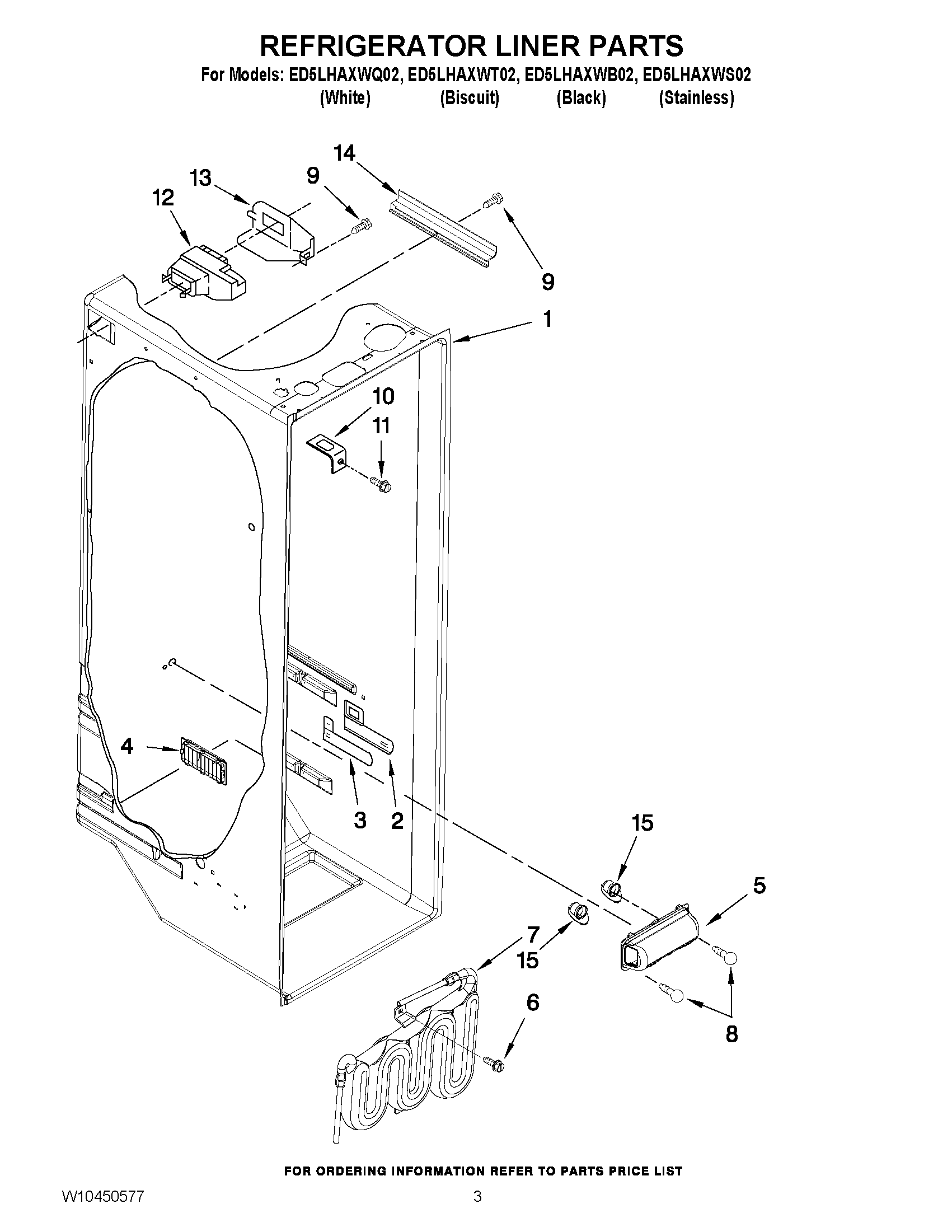

ED5LHAXWS02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6WP489500 Whirlpool Refrigerator Screw
7RESERVOIR
8W11679940 Whirlpool Refrigerator Light Bulb Assembly
9WP489478 Whirlpool Refrigerator Screw
10WP2256085 Whirlpool Refrigerator Retainer
11WP488488 Whirlpool Refrigerator Screw
12WPW10151374 Whirlpool Refrigerator Diffuser
132152019 Whirlpool Refrigerator Cover
14W10252495 Whirlpool Refrigerator Wire Cover
154387478 Whirlpool Refrigerator Light Socket
