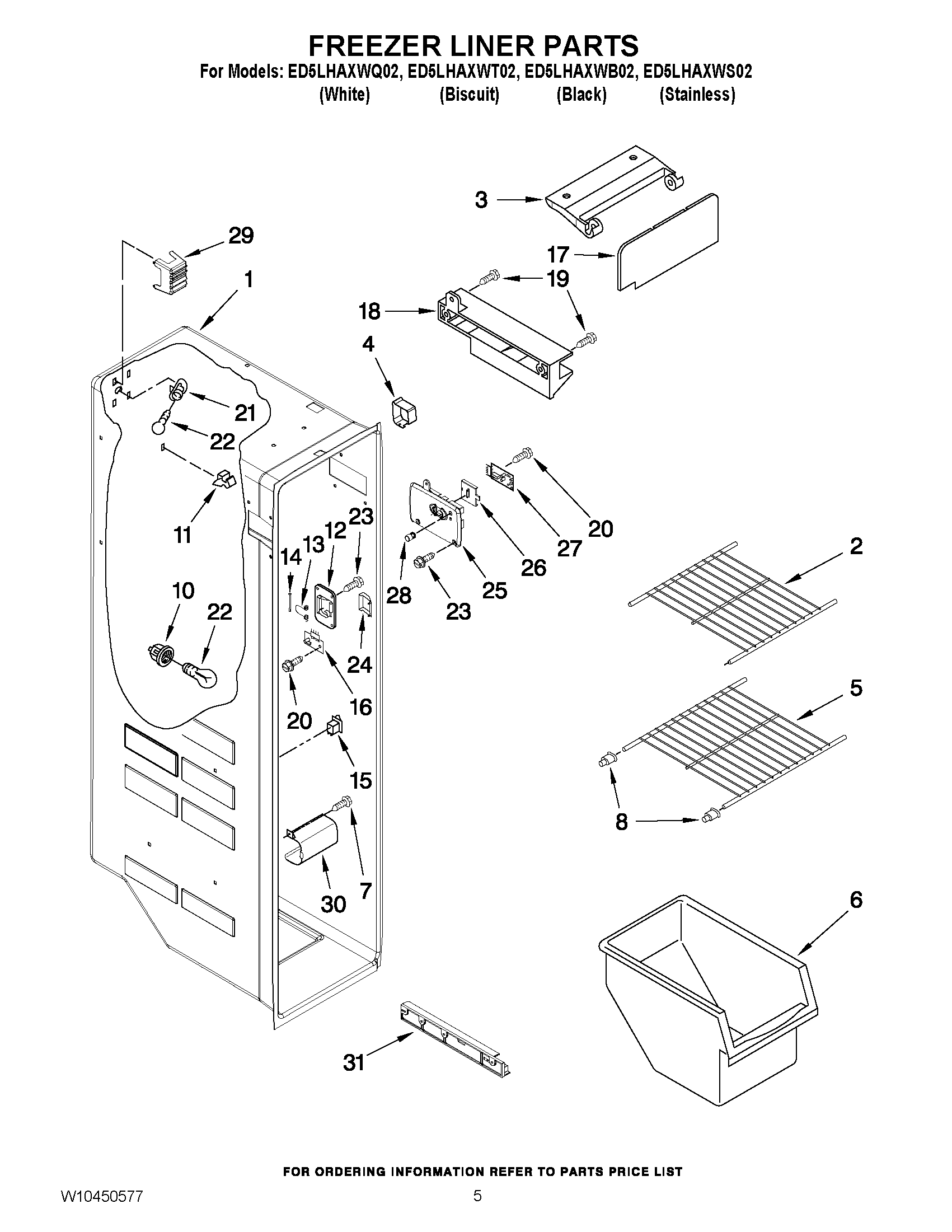

ED5LHAXWS02 04 – FREEZER LINER PARTS

ED5LHAXWS02 04 – FREEZER LINER PARTS

Written by

in

ED5LHAXWS02 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP2174267 Whirlpool Refrigerator Wire Shelf
3WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
42303234 Whirlpool Refrigerator Shield
5Shelf (2)
6WP2182971 Whirlpool Refrigerator Freezer Bin
7W10141518 Whirlpool Refrigerator Screw
8Grommet
10SOCKET
112215823 Whirlpool Refrigerator Clip
12WP2198587 Whirlpool Refrigerator Cover
13WP2198635 Whirlpool Refrigerator Spring
14WP2198634 Whirlpool Door Pin
15W11457217 Whirlpool Refrigerator Rocker Switch Combination
16W10757851-includeCORE Whirlpool Electronic Control+Core
17WP2255720 Whirlpool Refrigerator Ice Maker Door
18Slide, Ice Maker
19WP489478 Whirlpool Refrigerator Screw
202006254 Whirlpool Refrigerator Screw
214387478 Whirlpool Refrigerator Light Socket
22W11679940 Whirlpool Refrigerator Light Bulb Assembly
23WP3-24004-109 Whirlpool Refrigerator Screw
24WP2198633 Whirlpool Refrigerator Flipper
25Cover, Receiver
262315398 Whirlpool Refrigerator Slide
28WP2198643 Whirlpool Refrigerator Lens
29Light Shield
30Light Lens
31WP2261449 Whirlpool Refrigerator Track
31Slide, Basket (Left Side)
