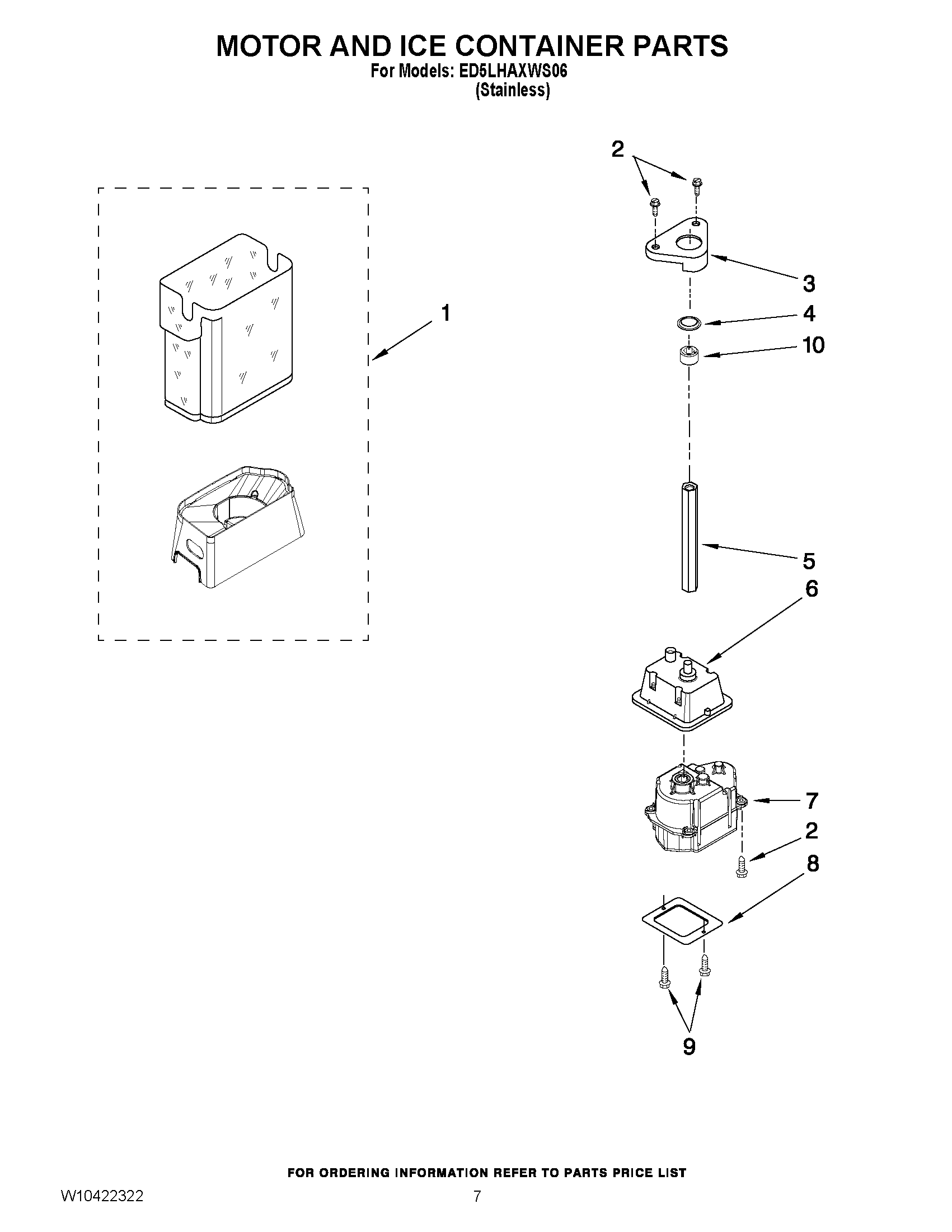

ED5LHAXWS06 05 – MOTOR AND ICE CONTAINER PARTS

ED5LHAXWS06 05 – MOTOR AND ICE CONTAINER PARTS

Written by

in

ED5LHAXWS06 05 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
2WP8281163 Whirlpool Refrigerator Screw
3WP2188919 Whirlpool Refrigerator Holder
4WP2198628 Whirlpool Door Seal
5WP2188917 Whirlpool Drive Shaft
6Enclosure, Motor
7W10822635 Whirlpool Refrigerator Ice Maker Dispenser Auger Drive Motor
8Cover
9WP489478 Whirlpool Refrigerator Screw
10WP2315559 Whirlpool Motor Coupling
100Ice Container (Complete)
