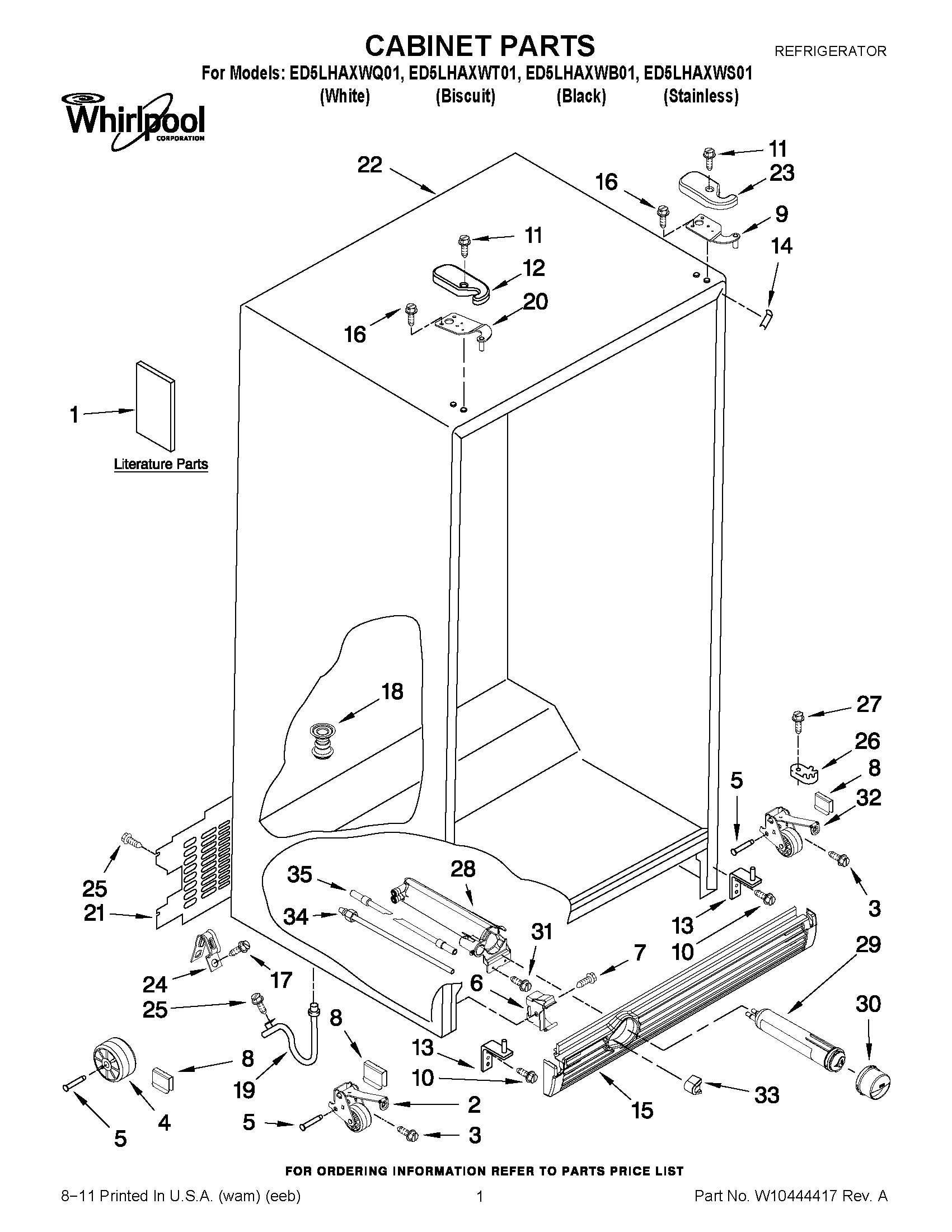

ED5LHAXWT01 01 – CABINET PARTS
Written by
in
ED5LHAXWT01 01 – CABINET PARTS
Products
Position
Product
1
Energy Guide
1
Modular Icemaker Service Sheet
1
Service & Wiring Sheet
1
USE & CARE GUIDE
1
INSTRUCTION SHEET (DOOR REMOVAL)
2
WPW10304660 Whirlpool Wheel Assembly
3
W10803534 Whirlpool Screw
4
WPW10475495 Whirlpool Roller Assembly
5
W11594405 Whirlpool Axle
6
WP2155013 Whirlpool Refrigerator Clip
7
WP489478 Whirlpool Refrigerator Screw
8
WP2174706 Whirlpool Refrigerator Pin Hitch
9
HINGE TOP (RC)
10
WP489497 Whirlpool Screw
11
WP8281227 Whirlpool Screw
12
WP2203407W Whirlpool Refrigerator Cover
12
WP2203407B Whirlpool Refrigerator Cover
12
2203407T Whirlpool Refrigerator Cover
13
HINGE BOTTOM
14
W11252732 Whirlpool Refrigerator Filler
14
W10283958 Whirlpool Refrigerator Filler
14
WPW10283959 Whirlpool Refrigerator Filler
15
WPW10311033 Whirlpool Refrigerator Grille
15
GRILLE (BISCUIT)
15
WPW10311032 Whirlpool Refrigerator Grille
17
WP489464 Whirlpool Refrigerator Screw
18
W11566763 Whirlpool Fitting
19
W11512417 Whirlpool Drain Connector
20
HINGE TOP (FC)
21
WP2188755 Whirlpool Rear Panel
22
CABINET (NOT A SERVICEABLE PART)
23
Hinge Cover (Biscuit)
23
WP2203408W Whirlpool Refrigerator Cover
23
WP2203408B Whirlpool Refrigerator Cover
24
549193 Whirlpool Refrigerator Power Clamp
26
WPW10329686 Whirlpool Door Cam Black
27
WP489483 Whirlpool Screw
28
WPW10121138 Whirlpool Refrigerator Water Filter Housing
29
FILTER 3-SINGLE TEAL
30
Cap, Water Filter (Biscuit)
30
WP2260518W Whirlpool Refrigerator Filter Cap
30
WP2260518B Whirlpool Water Filter Cap
31
WP489500 Whirlpool Refrigerator Screw
32
WPW10304659 Whirlpool Wheel Assembly
33
2260503W Whirlpool Refrigerator Button
33
WP2260503B Whirlpool Refrigerator Button
34
WPW10350006 Whirlpool Refrigerator Water Tube
35
TUBE, FILTER INLET
←
