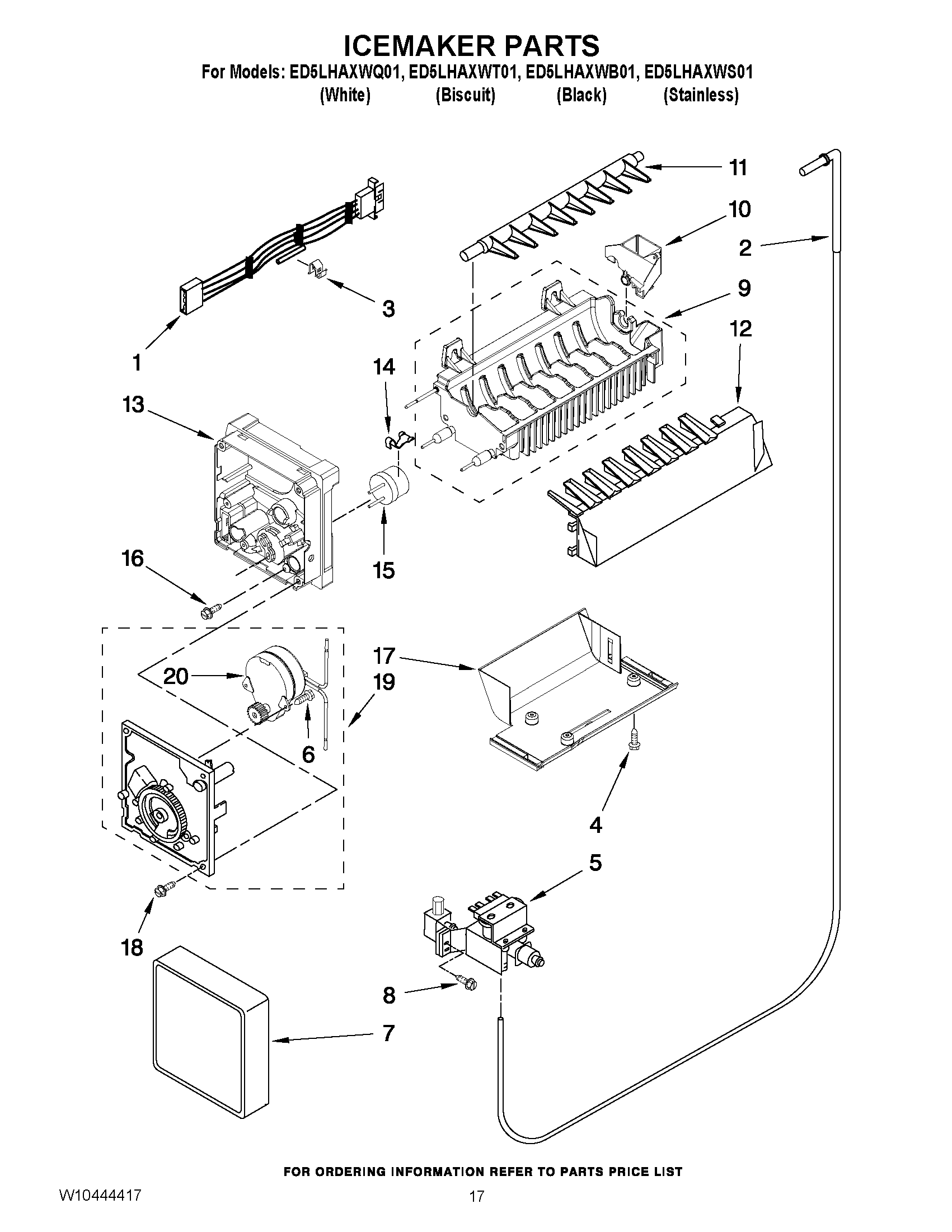

ED5LHAXWT01 11 – ICEMAKER PARTSadmin2025-04-26T10:37:26+00:00ED5LHAXWT01 11 – ICEMAKER PARTS ProductsPositionProduct1W11643622 Whirlpool Wire Harness2Fitting, Water Tube3WP628379 Whirlpool Refrigerator Clip4WP489478 Whirlpool Refrigerator Screw5W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit6489136 Whirlpool Refrigerator Screw7WPW10289690 Whirlpool Ice Maker Cover8WPW10141625 Whirlpool Refrigerator Screw Assembly9WPW10190929 Whirlpool Refrigerator Ice Maker Mold10WPW10272168 Whirlpool Refrigerator Water Fill Cup11WP627843 Whirlpool Refrigerator Ejector Arm12WPW10272161 Whirlpool Refrigerator Stripper Arm13WP2195914 Whirlpool Refrigerator Ice Maker Housing14WP2315522 Whirlpool Refrigerator Clip15WP627985 Whirlpool Icemaker Cycling Thermostat168533917 Whirlpool Refrigerator Screw17BRACKET, ICEMAKER MOUNTING18WP681249 Whirlpool Screw Assembly208201515 Whirlpool Refrigerator Motor and Gear Module Kit1002198597 Whirlpool Refrigerator Ice Maker
