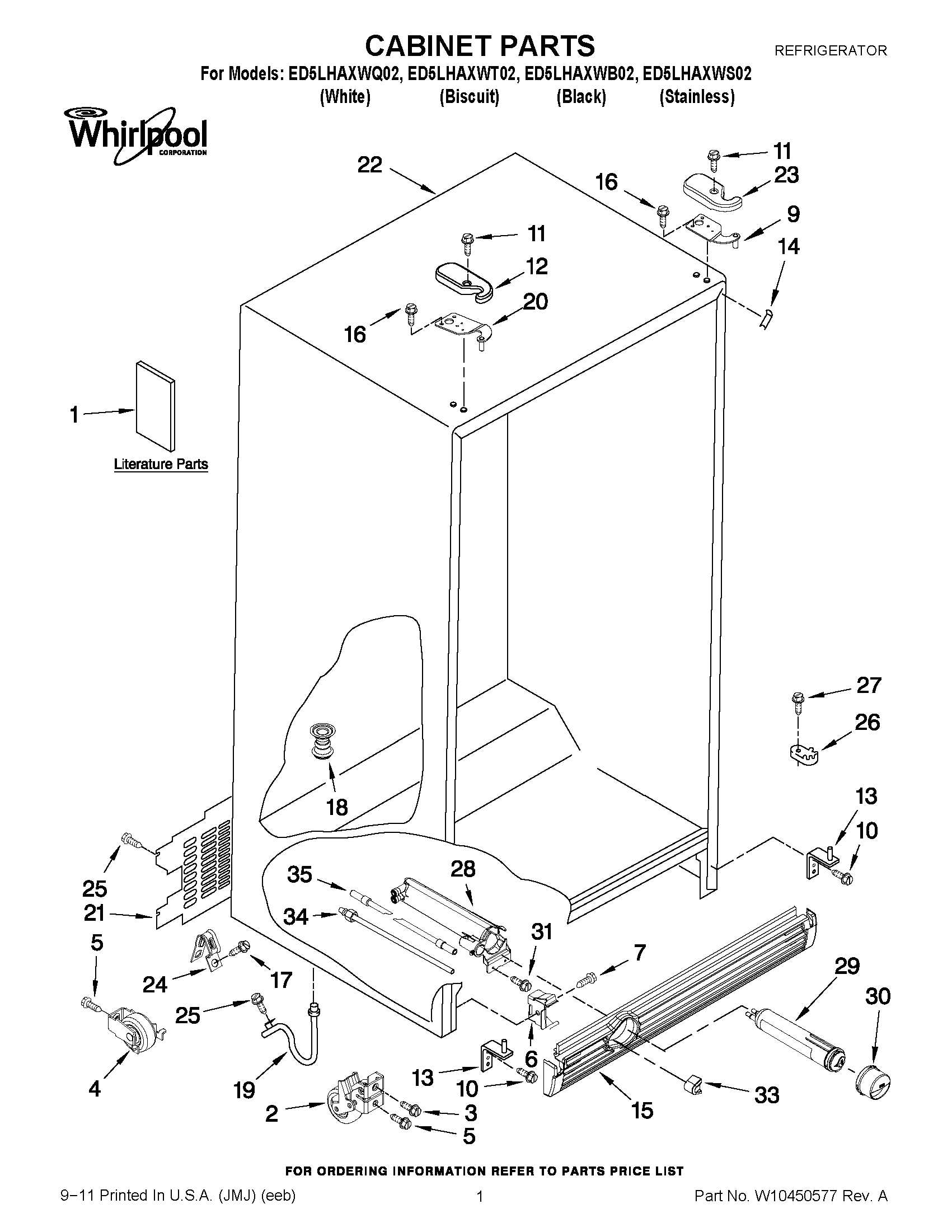

ED5LHAXWT02 01 – CABINET PARTS

ED5LHAXWT02 01 – CABINET PARTS

Written by

in

ED5LHAXWT02 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	Service & Wiring Sheet
1	INSTRUCTION SHEET, DOOR REMOVAL
1	Modular Icemaker Service Sheet
1	ENERGY GUIDE
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
9	W10242649 Whirlpool Refrigerator Door Hinge
11	WP8281227 Whirlpool Screw
12	WP2203407B Whirlpool Refrigerator Cover
12	WP2203407W Whirlpool Refrigerator Cover
12	2203407T Whirlpool Refrigerator Cover
13	W10138965 Whirlpool Refrigerator Door Hinge
14	Filler, Wrapper (White)
14	Filler, Wrapper (Biscuit)
14	Filler, Wrapper (Black)
15	GRILLE (BISCUIT)
15	WPW10311033 Whirlpool Refrigerator Grille
15	WPW10311032 Whirlpool Refrigerator Grille
16	WP489497 Whirlpool Screw
17	HINGE, TOP (FC)
18	W11566763 Whirlpool Fitting
19	W11512417 Whirlpool Drain Connector
20	WP2203770 Whirlpool Refrigerator Door Hinge
21	WP2188755 Whirlpool Rear Panel
22	CABINET (NOT A SERVICEABLE PART)
23	Hinge Cover (Biscuit)
23	WP2203408W Whirlpool Refrigerator Cover
23	WP2203408B Whirlpool Refrigerator Cover
24	549193 Whirlpool Refrigerator Power Clamp
25	SCREW
26	WPW10329686 Whirlpool Door Cam Black
27	WP489483 Whirlpool Screw
28	WPW10121138 Whirlpool Refrigerator Water Filter Housing
29	FILTER 3-SINGLE TEAL
30	WP2260518B Whirlpool Water Filter Cap
30	Cap, Water Filter (Biscuit)
30	WP2260518W Whirlpool Refrigerator Filter Cap
31	WP489500 Whirlpool Refrigerator Screw
33	WP2260503B Whirlpool Refrigerator Button
33	2260503W Whirlpool Refrigerator Button
34	WPW10350006 Whirlpool Refrigerator Water Tube
35	TUBE, FILTER INLET
