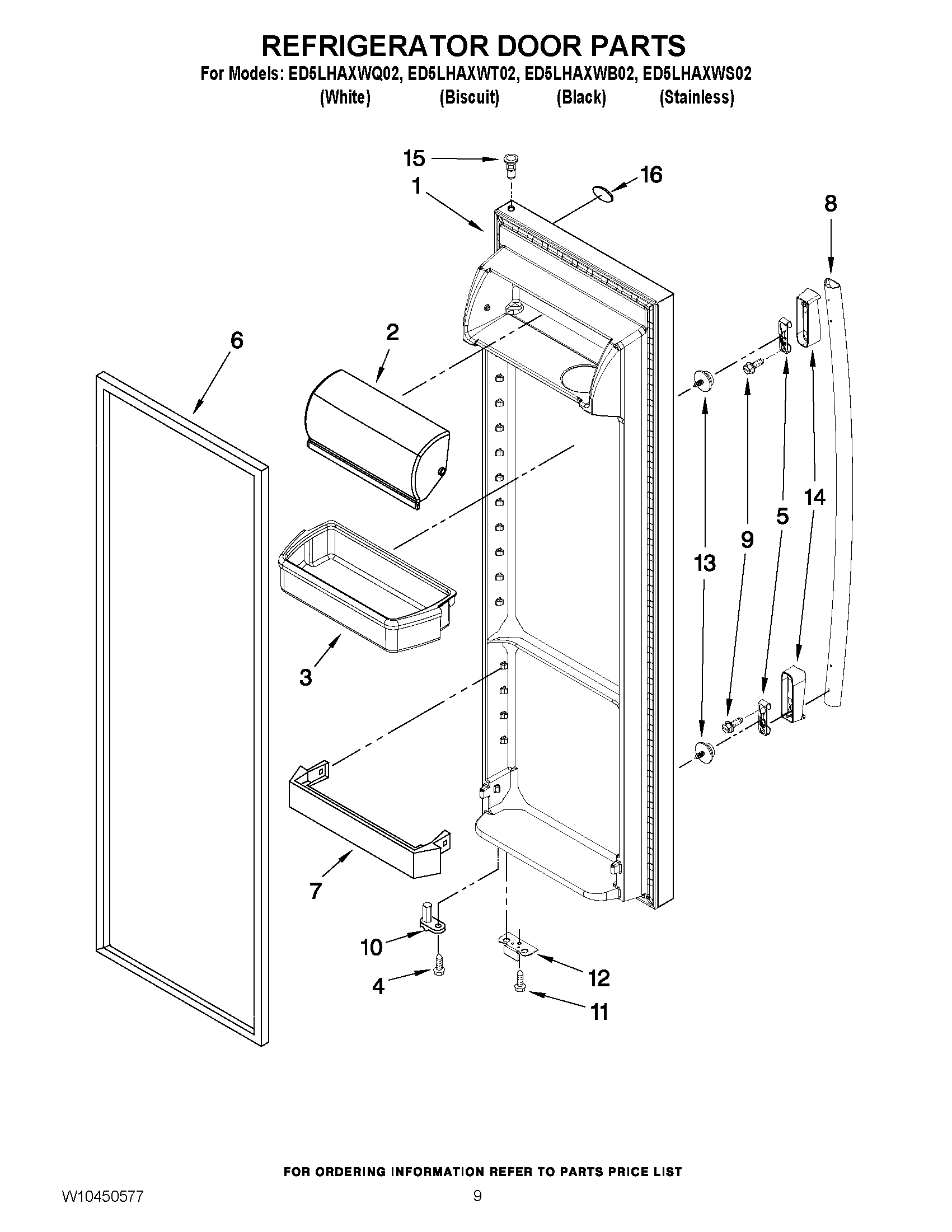

ED5LHAXWT02 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Black)
1	Refrigerator Door (Includes Item 6) (White)
1	REFRIGERATOR DOOR (INCLUDES ITEM 5) (STAINLESS)
1	Refrigerator Door (Includes Item 6) (Biscuit)
2	WP2256101 Whirlpool Dairy Door
4	WP3400012 Whirlpool Refrigerator Screw
5	WP2255411 Whirlpool Refrigerator Clip
6	2159082 Whirlpool Freezer Door Gasket Black
6	2159074 Whirlpool Door Gasket Seal
7	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
8	SHELF-GLASS
8	WPW10127763 Whirlpool Refrigerator Handle
8	WPW10127762 Whirlpool Refrigerator Handle
8	WPW10127761K Whirlpool Refrigerator Handle
9	WP8533988 Whirlpool Screw Fastener
10	WP2182179 Whirlpool Cam Closer
11	WPW10142233 Whirlpool Refrigerator Screw
12	BRACKET, DOOR STOP
12	BRACKET, DOOR STOP (SILVER)
13	WPW10288153 Whirlpool Refrigerator Screw
14	Endcap (Biscuit)
14	End Cap (Apollo Grey)
14	Endcap (Black)
14	W10127769 Whirlpool Refrigerator Handle End Cap
15	WP2182181 Whirlpool Refrigerator Thimble
16	WP2213265 Whirlpool Refrigerator Nameplate
