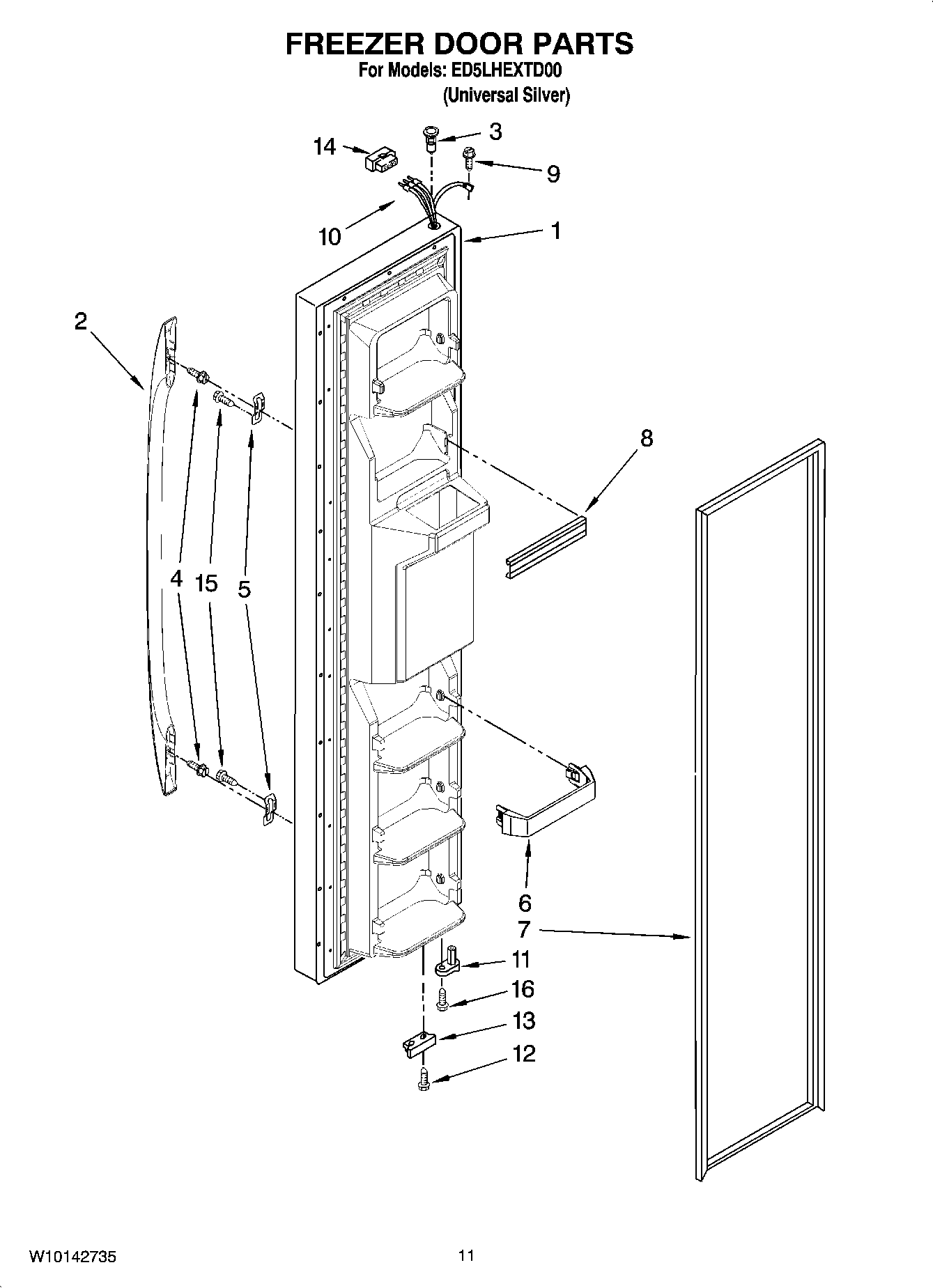

ED5LHEXTD00 07 – FREEZER DOOR PARTS

ED5LHEXTD00 07 – FREEZER DOOR PARTS

Written by

in

ED5LHEXTD00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Universal Silver)
2W10187086 Whirlpool Refrigerator Handle
3WP2182181 Whirlpool Refrigerator Thimble
4SCREW
5WP2255411 Whirlpool Refrigerator Clip
6WP2309718 Whirlpool Refrigerator Door Trim
72159082 Whirlpool Freezer Door Gasket Black
8WPW10307490 Whirlpool Door Trim Assembly
9WP489128 Whirlpool Refrigerator Screw
102311641 Whirlpool Refrigerator Wire Harness
11WP2182179 Whirlpool Cam Closer
12WP489483 Whirlpool Screw
13WP2206629B Whirlpool Refrigerator Bracket
14WP2154473 Whirlpool Refrigerator Connector
15WP489491 Whirlpool Refrigerator Screw
16WP3400012 Whirlpool Refrigerator Screw
