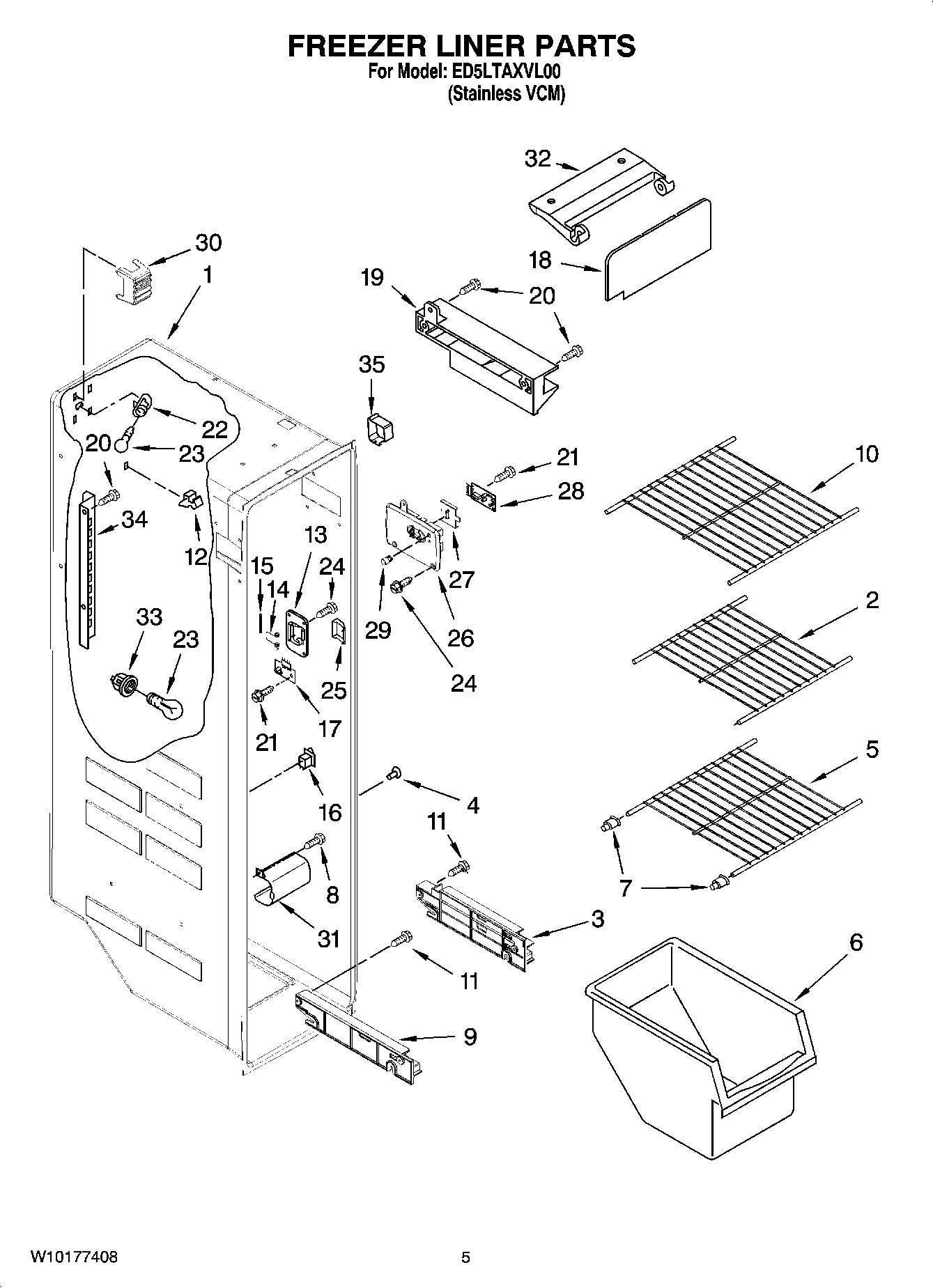

ED5LTAXVL00 04 – FREEZER LINER PARTS

ED5LTAXVL00 04 – FREEZER LINER PARTS

Written by

in

ED5LTAXVL00 04 – FREEZER LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WPW10318961 Whirlpool Refrigerator Wire Shelf
32301291 Whirlpool Refrigerator Track
32301292 Whirlpool Refrigerator Track
4WP941839 Whirlpool Refrigerator Button Plug
5WPW10318948 Whirlpool Wire Shelf
6WPW10144409 Whirlpool Refrigerator Freezer Bin
72163762 Whirlpool Refrigerator Cup Assembly
8W10142289 Whirlpool Air Conditioner Screw
9Shelf Track (Left Side)
9Shelf Track (Right Side)
10WPW10318947 Whirlpool Wire Shelf
11W10759522 Whirlpool Screw
122215823 Whirlpool Refrigerator Clip
13WP2198587 Whirlpool Refrigerator Cover
14WP2198635 Whirlpool Refrigerator Spring
15WP2198634 Whirlpool Door Pin
16W11457217 Whirlpool Refrigerator Rocker Switch Combination
17W10757851-includeCORE Whirlpool Electronic Control+Core
18WP2255720 Whirlpool Refrigerator Ice Maker Door
19Slide, Ice Maker
20WP489478 Whirlpool Refrigerator Screw
212006254 Whirlpool Refrigerator Screw
224387478 Whirlpool Refrigerator Light Socket
23RANGE ONLY 40W 120V APPL BULB
24WPW10142283 Whirlpool Refrigerator Screw
25WP2198633 Whirlpool Refrigerator Flipper
26Cover, Receiver
272315398 Whirlpool Refrigerator Slide
29WP2198643 Whirlpool Refrigerator Lens
30Light Shield
31Light Lens
32WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
33SOCKET
34Ladder (Left Side)
34Ladder (Right Side)
352303234 Whirlpool Refrigerator Shield
