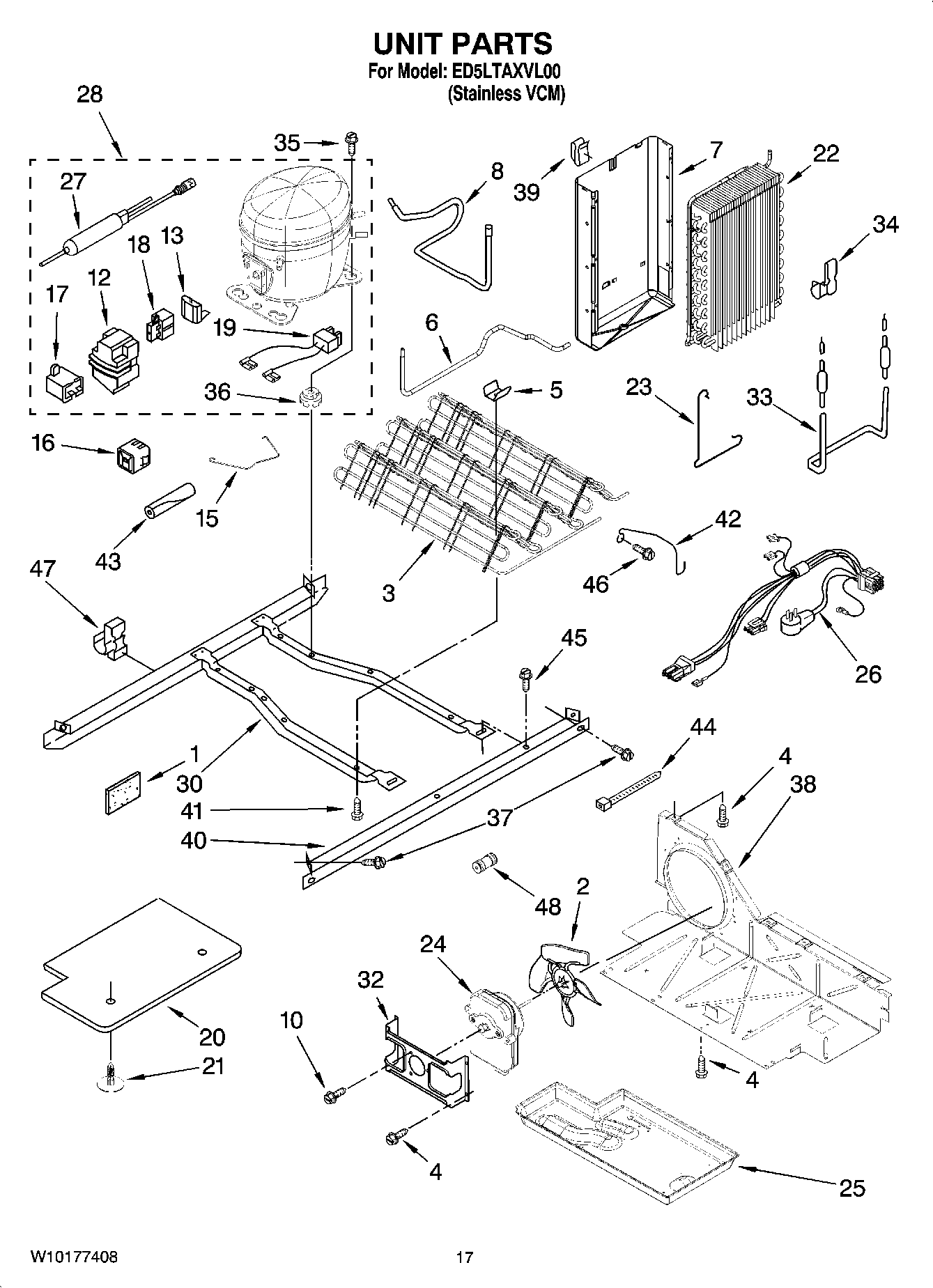

ED5LTAXVL00 11 – UNIT PARTS

Products

Position	Product
	876764 Whirlpool Refrigerator Primary Valve
	WPL ARI36470A6
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and O
1	W11553819 Whirlpool Refrigerator Insulation
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	2261599 Whirlpool Refrigerator Tube
7	Heat Shield
8	WP2205765 Whirlpool Refrigerator Tube
10	WP8533993 Whirlpool Refrigerator Screw
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2154697 Whirlpool Refrigerator Overload
15	Clip, Retaining
16	WPW10189190 Whirlpool Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	W10920279 Whirlpool Refrigerator Start Relay
19	WP2172890 Whirlpool Refrigerator Wire
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188823 Whirlpool Refrigerator Evaporator
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WPW10309395 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
27	W10843121 Whirlpool Refrigerator Tube
28	W10139462 Whirlpool Refrigerator Compressor
30	2304904 Whirlpool Frame Assembly
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
34	Clamp
36	876811 Whirlpool Grommet
36	WP4387558 Whirlpool Refrigerator Compressor Grommet
37	489340 Whirlpool Refrigerator Screw
38	W10896764 Whirlpool Refrigerator Air Baffle
39	Clip, Heat Shield
40	2305374 Whirlpool Refrigerator Unit Rail
41	W11544659 Whirlpool Refrigerator Screw
42	2260517 Whirlpool Fan Guard
43	SLEEVE
44	WPW10339879 Whirlpool Wire Tie
45	WP489427 Whirlpool Refrigerator Screw
46	WP489478 Whirlpool Refrigerator Screw
47	Clip, Wire & Tube
48	WP4373559 Whirlpool Fitting
