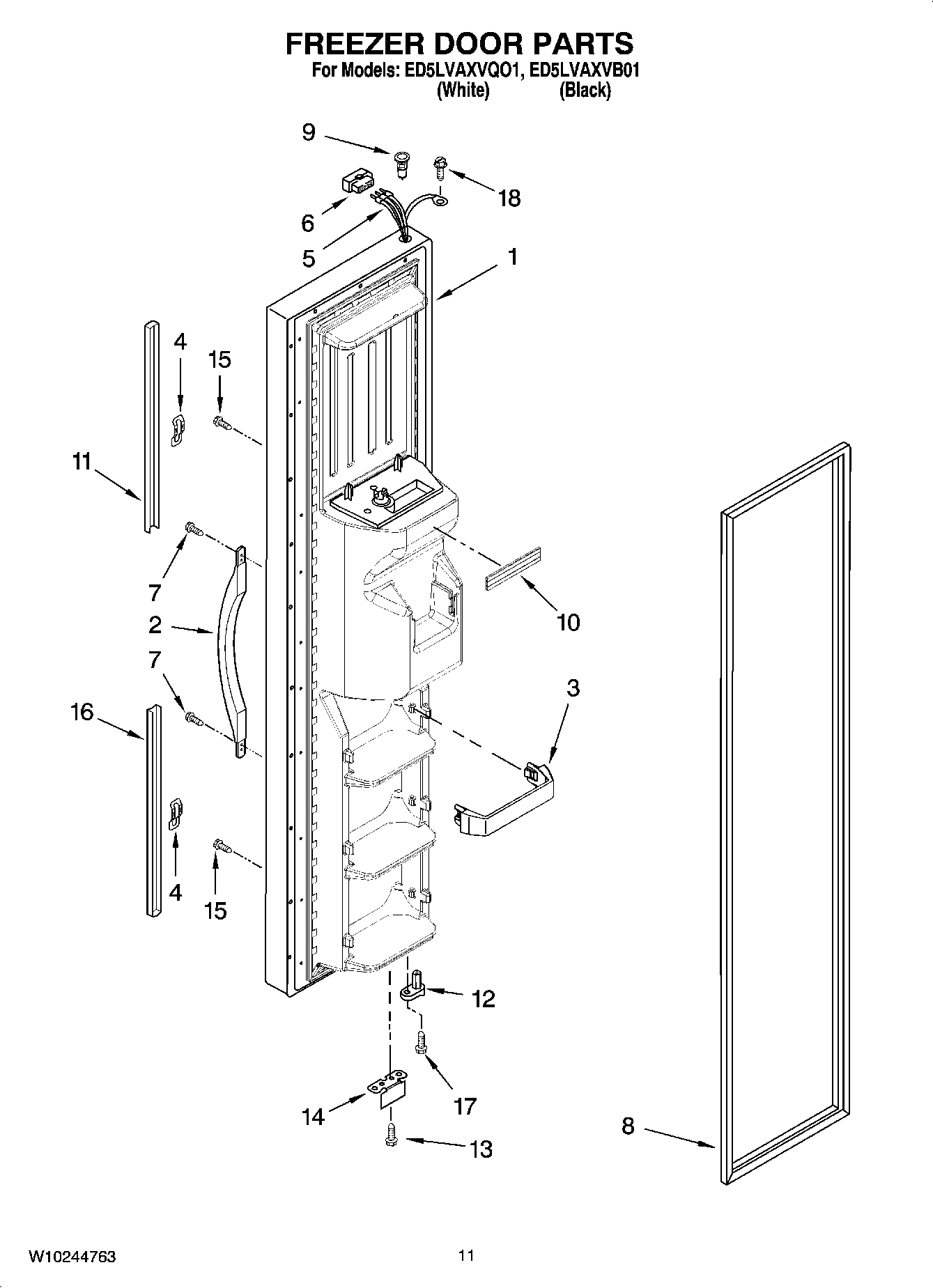

ED5LVAXVB01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle (White)
2	Handle (Black)
3	WP2309718 Whirlpool Refrigerator Door Trim
4	WP2195327 Whirlpool Refrigerator Clip
5	2198619 Whirlpool Refrigerator Wire Harness
6	WP2154473 Whirlpool Refrigerator Connector
7	WP489491 Whirlpool Refrigerator Screw
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	WP2182181 Whirlpool Refrigerator Thimble
10	WPW10307490 Whirlpool Door Trim Assembly
11	TRIM ASSY, TOP (INCLUDES ITEM 8) (WHITE)
11	TRIM ASSY, TOP (INCLUDES ITEM 8) (BLACK)
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
15	WP3400852 Whirlpool Refrigerator Screw
16	Extension, Bottom (White)
16	Extension, Bottom (Black)
17	WP3400012 Whirlpool Refrigerator Screw
18	WP489128 Whirlpool Refrigerator Screw
