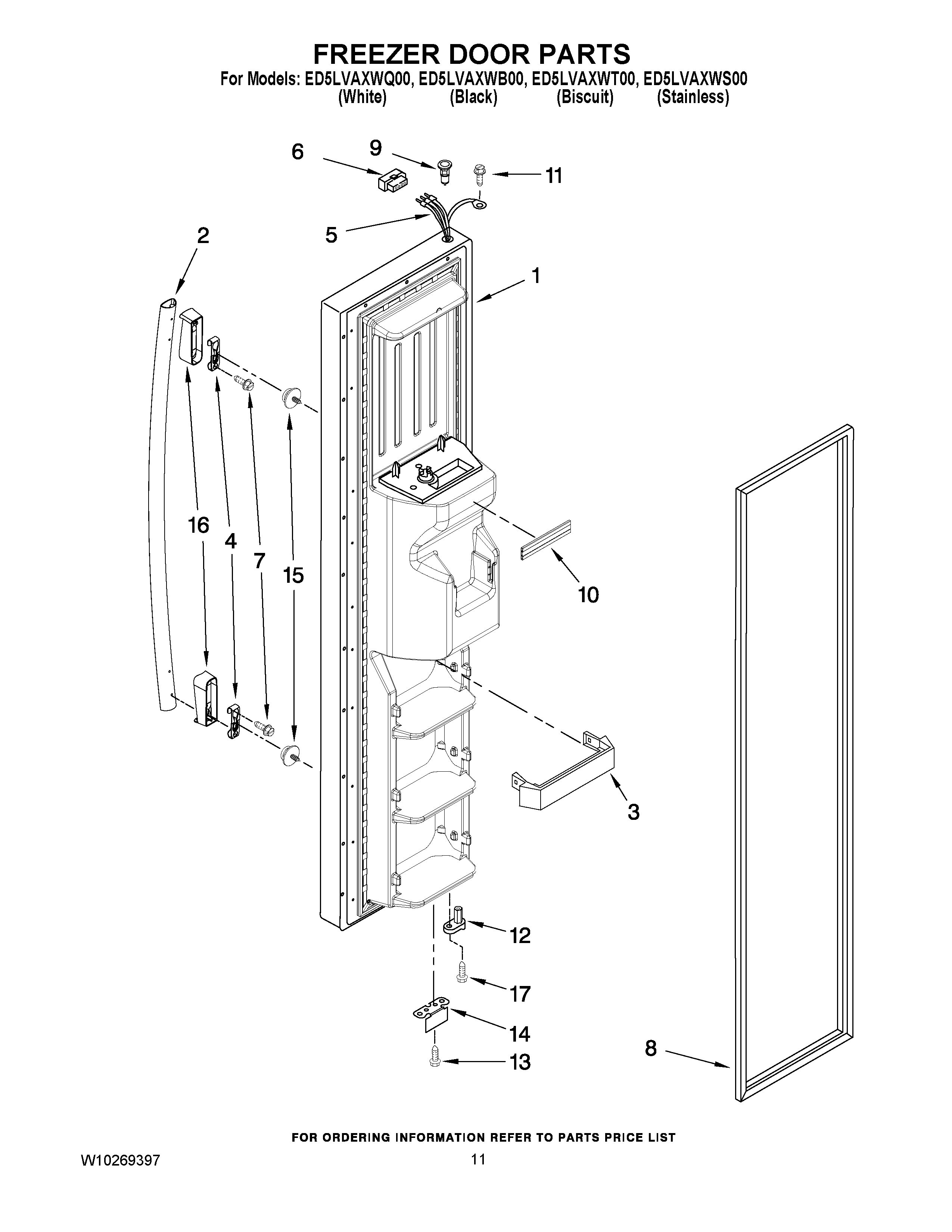

ED5LVAXWB00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BISCUIT)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (STAINLESS)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
1	FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (WHITE)
2	WPW10127762 Whirlpool Refrigerator Handle
2	WPW10257118K Whirlpool Refrigerator Handle
2	WPW10127763 Whirlpool Refrigerator Handle
2	WPW10127761K Whirlpool Refrigerator Handle
3	WP2309718 Whirlpool Refrigerator Door Trim
4	WP2255411 Whirlpool Refrigerator Clip
5	2198619 Whirlpool Refrigerator Wire Harness
6	WP2154473 Whirlpool Refrigerator Connector
7	WP8533988 Whirlpool Screw Fastener
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
9	WP2182181 Whirlpool Refrigerator Thimble
10	WPW10307490 Whirlpool Door Trim Assembly
11	WP489128 Whirlpool Refrigerator Screw
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	W10185566 Whirlpool Bracket
14	WP2206629B Whirlpool Refrigerator Bracket
14	Bracket, Door Stop (White)
15	WPW10288153 Whirlpool Refrigerator Screw
16	End Cap (Apollo Grey)
16	Endcap (Biscuit)
16	Endcap (Black)
16	W10127769 Whirlpool Refrigerator Handle End Cap
17	WP3400012 Whirlpool Refrigerator Screw
