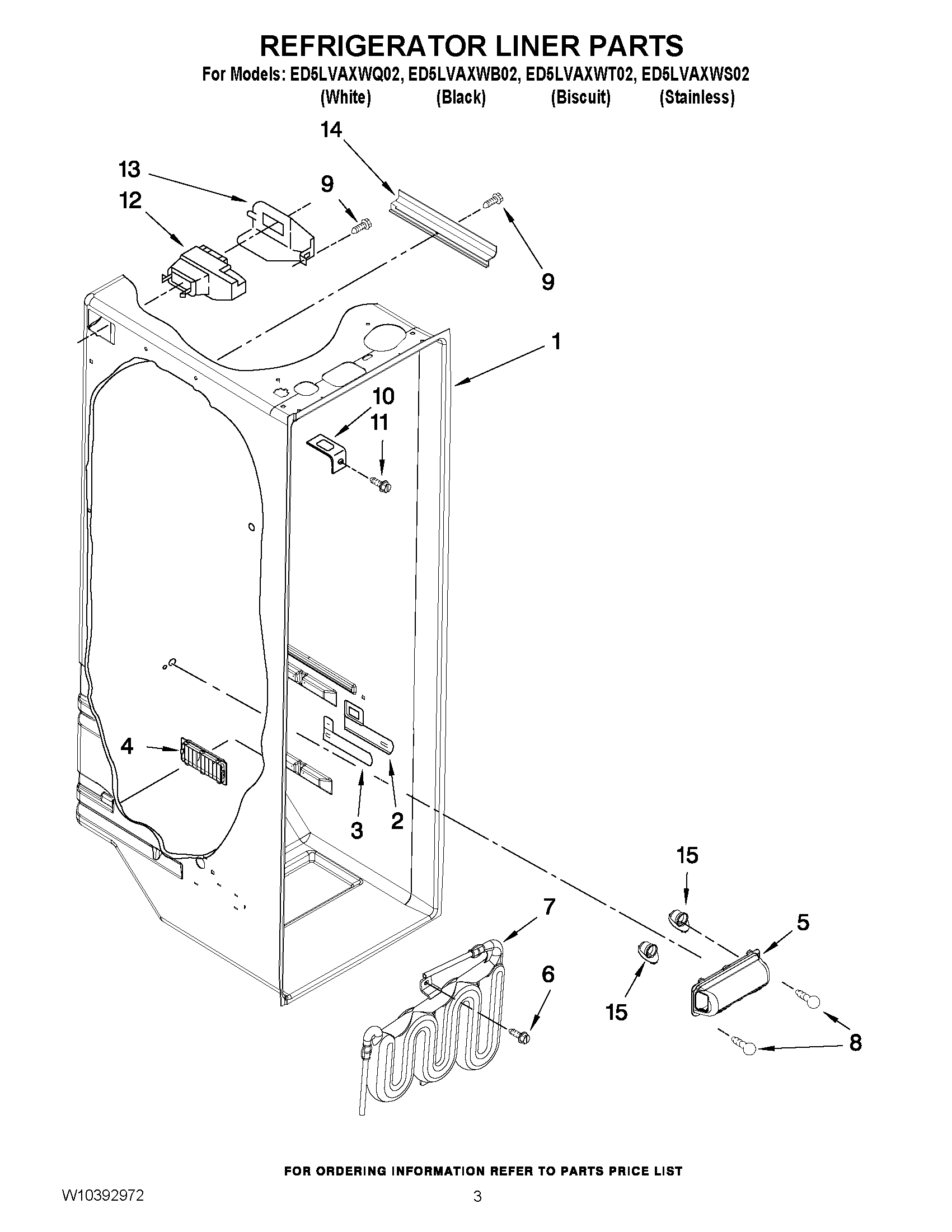

ED5LVAXWS02 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5W11239891 Whirlpool Refrigerator Light Lens
6Screw (2)
7RESERVOIR
8W11679940 Whirlpool Refrigerator Light Bulb Assembly
9W10759522 Whirlpool Screw
10WP2256085 Whirlpool Refrigerator Retainer
11WP488488 Whirlpool Refrigerator Screw
12WPW10151375 Whirlpool Refrigerator Diffuser
132152019 Whirlpool Refrigerator Cover
142150331 Whirlpool Refrigerator Wire Cover
154387478 Whirlpool Refrigerator Light Socket
