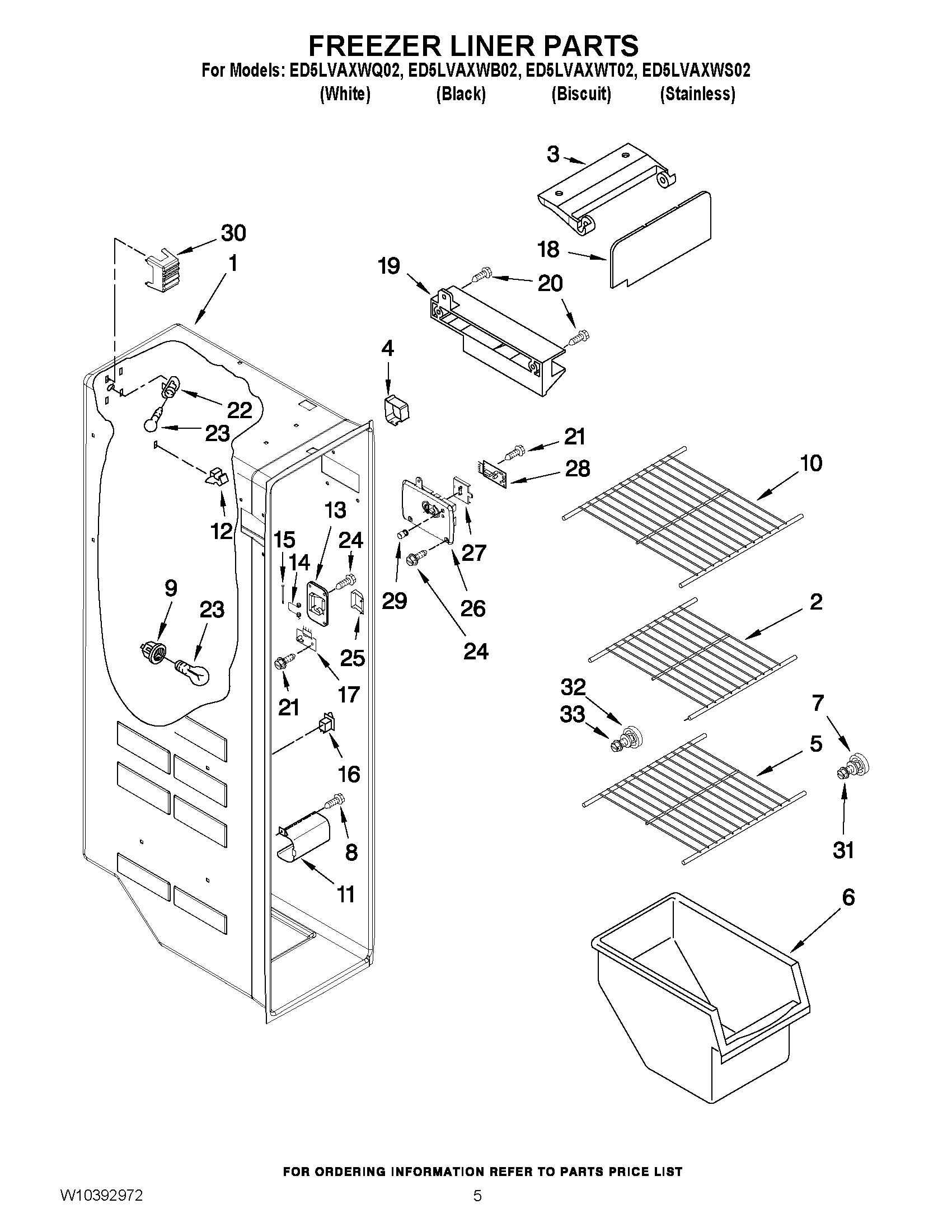

ED5LVAXWS02 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	WP2174267 Whirlpool Refrigerator Wire Shelf
3	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
4	2303234 Whirlpool Refrigerator Shield
5	Shelf (2)
6	WP2182971 Whirlpool Refrigerator Freezer Bin
7	WP2196483 Whirlpool Refrigerator Shelf Stud
8	W10142289 Whirlpool Air Conditioner Screw
9	SOCKET
10	WP2309718 Whirlpool Refrigerator Door Trim
11	Light Lens
12	2215823 Whirlpool Refrigerator Clip
13	WP2198587 Whirlpool Refrigerator Cover
14	WP2198635 Whirlpool Refrigerator Spring
15	WP2198634 Whirlpool Door Pin
16	W11457217 Whirlpool Refrigerator Rocker Switch Combination
17	W10757851-includeCORE Whirlpool Electronic Control+Core
18	WP2255720 Whirlpool Refrigerator Ice Maker Door
19	Slide, Ice Maker
20	WP489478 Whirlpool Refrigerator Screw
21	2006254 Whirlpool Refrigerator Screw
22	4387478 Whirlpool Refrigerator Light Socket
23	W11679940 Whirlpool Refrigerator Light Bulb Assembly
24	WPW10142283 Whirlpool Refrigerator Screw
25	WP2198633 Whirlpool Refrigerator Flipper
26	Cover, Receiver
27	2315398 Whirlpool Refrigerator Slide
29	WP2198643 Whirlpool Refrigerator Lens
30	Light Shield
31	WPW10191952 Whirlpool Refrigerator Screw
32	Stud, Rear
