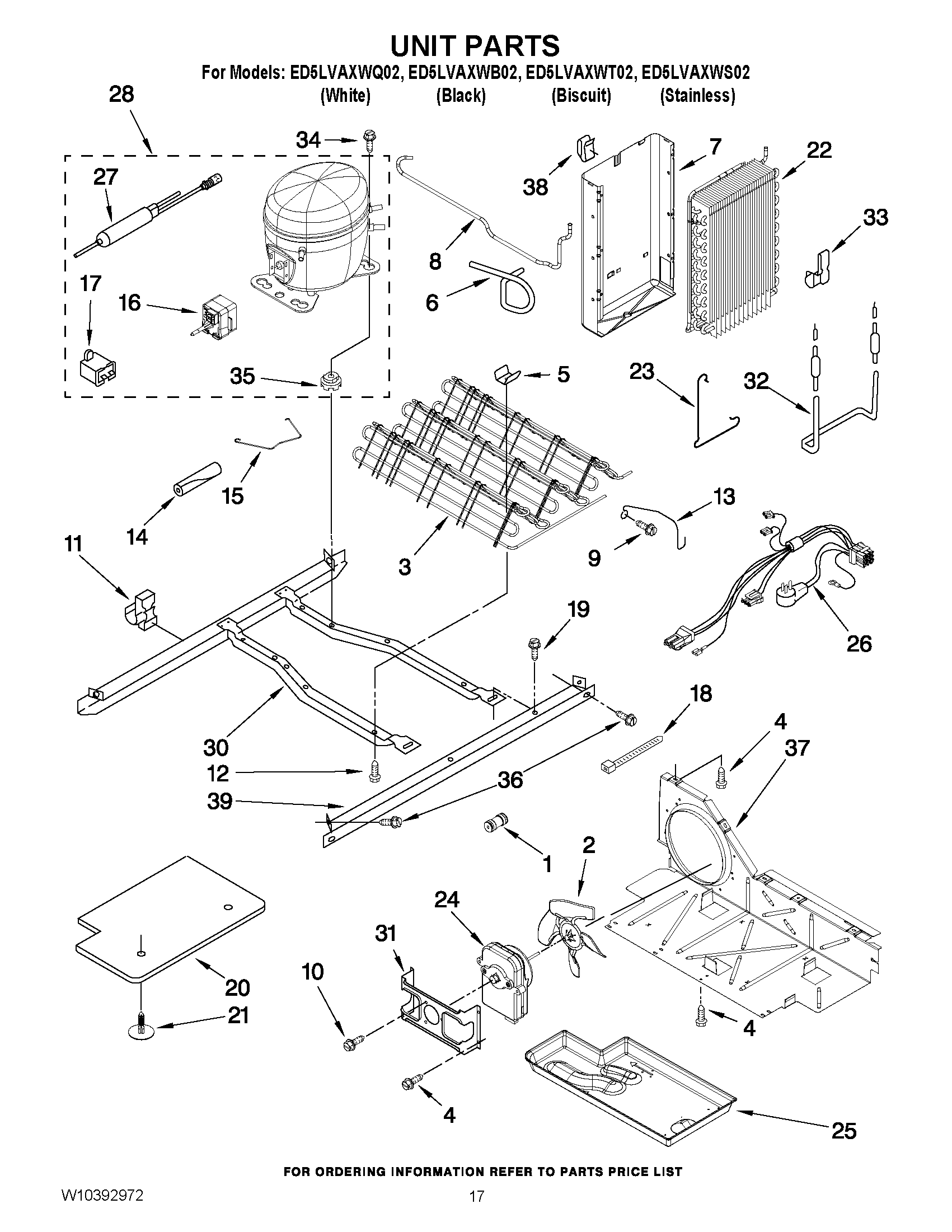

ED5LVAXWT02 11 – UNIT PARTS

ED5LVAXWT02 11 – UNIT PARTS

Written by

in

ED5LVAXWT02 11 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/2“)
NI	WP978025 Whirlpool Refrigerator Valve
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	VALVE, ACCESS (5/8“)
NI	CABINET (NOT A SERVICEABLE PART)
1	WPW10334458 Whirlpool Refrigerator Connector
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	Tube, Process
7	Heat Shield
8	W10528574 Whirlpool Refrigerator Tube
9	WP489478 Whirlpool Refrigerator Screw
10	WP8533993 Whirlpool Refrigerator Screw
11	Clip, Wire & Tube
12	W11544659 Whirlpool Refrigerator Screw
13	2260517 Whirlpool Fan Guard
14	SLEEVE
15	W11661170 Whirlpool Clip
16	WPW10189190 Whirlpool Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	WPW10339879 Whirlpool Wire Tie
19	WP489427 Whirlpool Refrigerator Screw
20	Unit Cover, Bottom
21	489396 Whirlpool Refrigerator Clip
22	WP2188823 Whirlpool Refrigerator Evaporator
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	WPW10309395 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	W10233961 Whirlpool Refrigerator Compressor
30	W10196321 Whirlpool Refrigerator Frame
31	WP2181929 Whirlpool Refrigerator Bracket
32	WP2323198 Whirlpool Refrigerator Heater
33	Clamp
34	876811 Whirlpool Grommet
35	W11661108 Whirlpool Grommet
36	489340 Whirlpool Refrigerator Screw
37	WPW10151375 Whirlpool Refrigerator Diffuser
38	Clip, Heat Shield
39	WPW10196323 Whirlpool Refrigerator Rail Assembly
