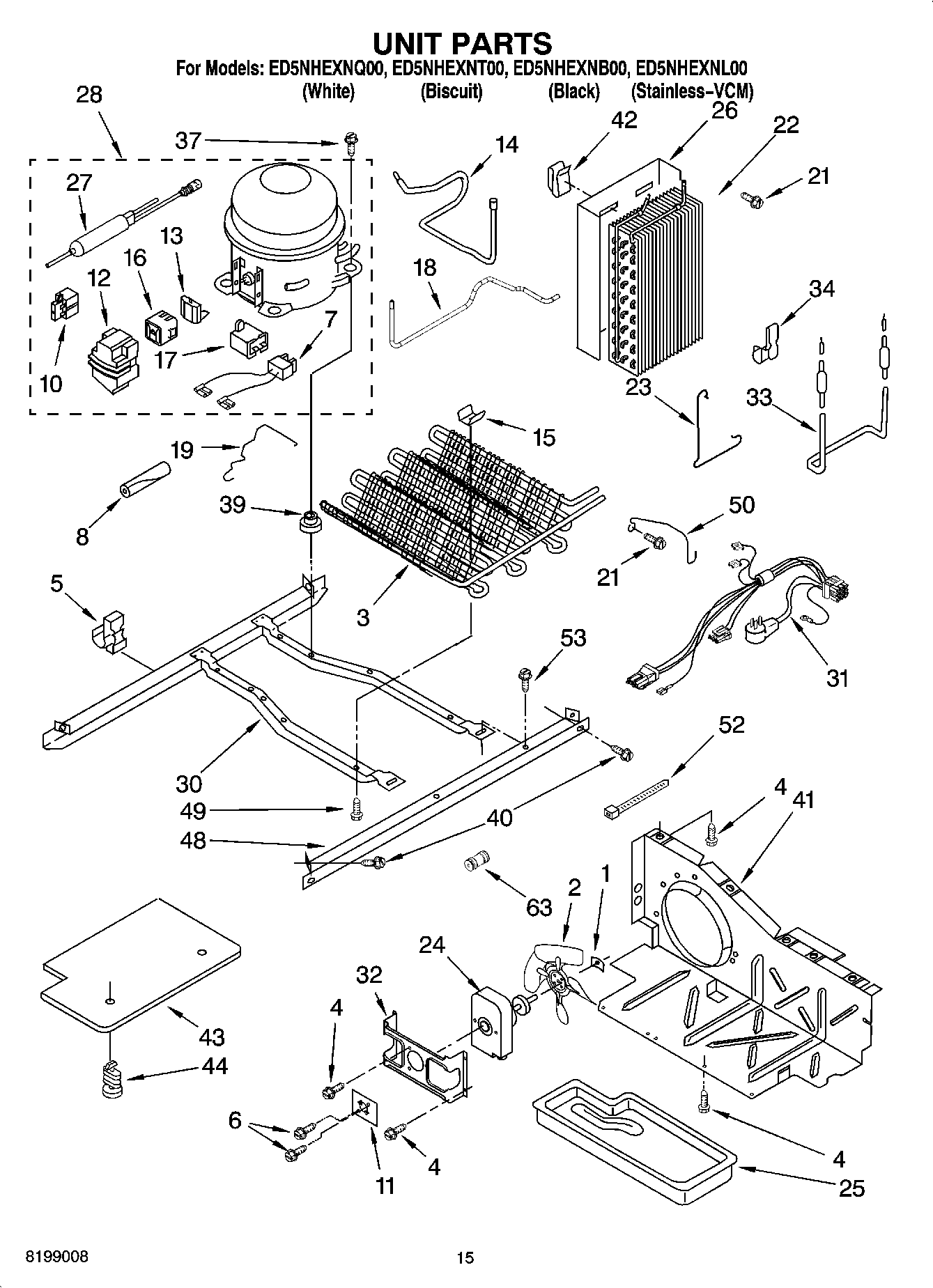

ED5NHEXNL00 09 – UNIT PARTS
Written by
in
ED5NHEXNL00 09 – UNIT PARTS
Products
Position
Product
1
WP486692 Whirlpool Refrigerator Nut
2
Blade, Fan
3
2324712 Whirlpool Refrigerator Condenser
4
WP489464 Whirlpool Refrigerator Screw
5
Clip, Wire & Tube
6
8281160 Whirlpool Screw
7
WP2172890 Whirlpool Refrigerator Wire
8
SLEEVE
10
W10920279 Whirlpool Refrigerator Start Relay
11
Insert, Bracket
12
WP2162358 Whirlpool Refrigerator Terminal Cover
13
WP2154697 Whirlpool Refrigerator Overload
14
WP2205765 Whirlpool Refrigerator Tube
15
W10683556 Whirlpool Refrigerator Clip
16
8201786 Whirlpool Relay and Overload Start Kit
17
WPW10662129 Whirlpool Refrigerator Run Capacitor
18
2261599 Whirlpool Refrigerator Tube
19
2223314 Whirlpool Refrigerator Clip
21
WP489478 Whirlpool Refrigerator Screw
22
WP2188823 Whirlpool Refrigerator Evaporator
23
Clamp
24
W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25
WPW10614158 Whirlpool Refrigerator Evaporator Tray
26
Heat Shield And Drain Pan
27
W10843121 Whirlpool Refrigerator Tube
28
W10309994 Whirlpool Refrigerator Compressor
30
2304904 Whirlpool Frame Assembly
31
WPW10309395 Whirlpool Refrigerator Wire Harness
32
WP2181929 Whirlpool Refrigerator Bracket
33
WP2323198 Whirlpool Refrigerator Heater
34
Clip
35
WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39
WP4387558 Whirlpool Refrigerator Compressor Grommet
39
876811 Whirlpool Grommet
40
489340 Whirlpool Refrigerator Screw
41
W10896764 Whirlpool Refrigerator Air Baffle
42
Clip, Heat Shield
43
Unit Cover, Bottom
44
489396 Whirlpool Refrigerator Clip
48
2305374 Whirlpool Refrigerator Unit Rail
49
W11544659 Whirlpool Refrigerator Screw
50
Guard, Fan
52
WPW10339879 Whirlpool Wire Tie
53
WP489427 Whirlpool Refrigerator Screw
63
978026 Whirlpool Refrigerator Primary Valve
63
WPL ARI36764A1
63
FOLLOWING PARTS
63
VALVE, ACCESS (5/8“)
63
VALVE, ACCESS (1/2“)
63
WP978025 Whirlpool Refrigerator Valve
63
WP4373559 Whirlpool Fitting
63
978030 Whirlpool Refrigerator Valve
63
978027 Whirlpool Refrigerator Primary Valve
63
876764 Whirlpool Refrigerator Primary Valve
63
WPL ARI36765A3
←
