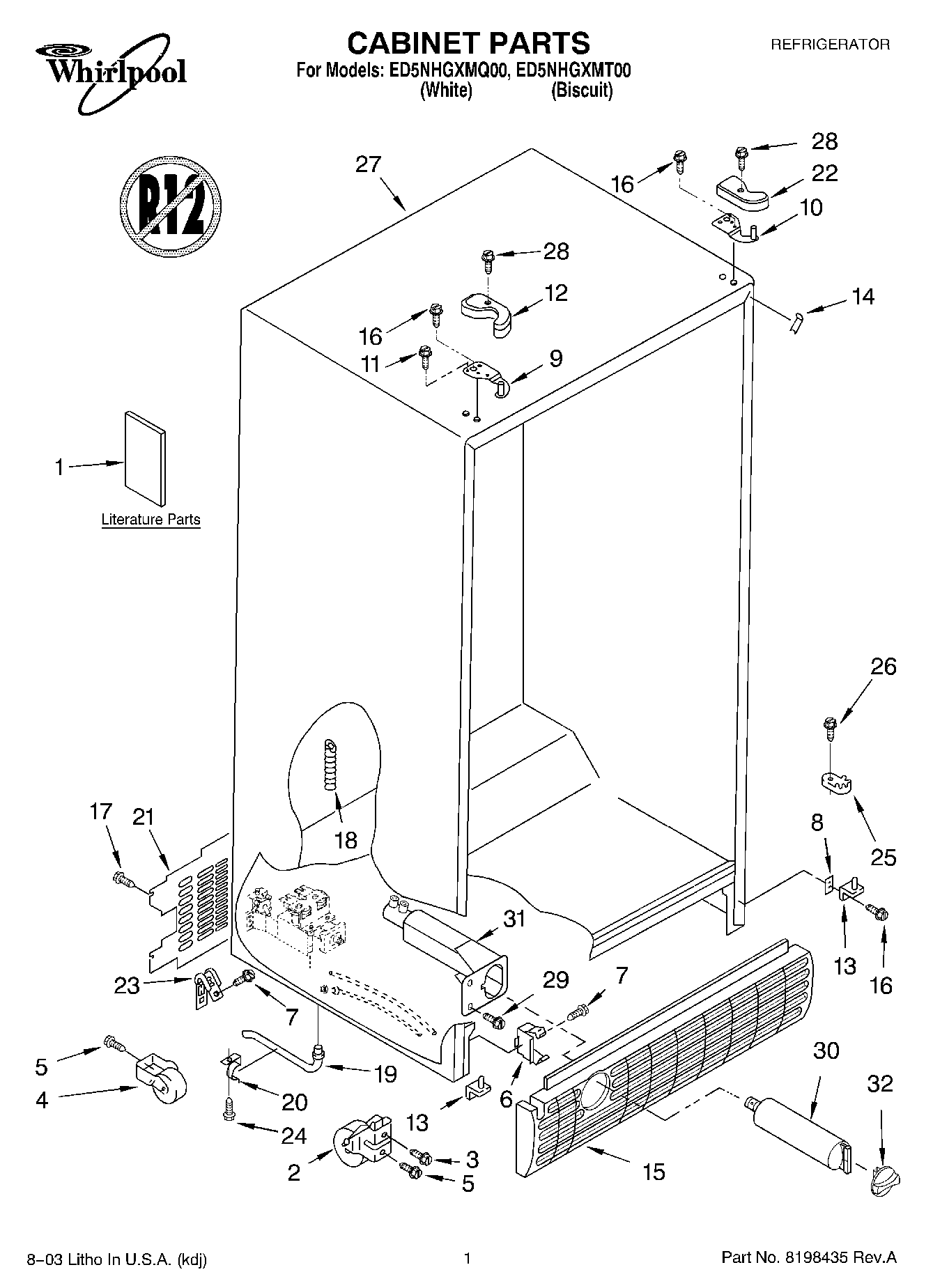

ED5NHGXMQ00 01 – CABINET PARTS

ED5NHGXMQ00 01 – CABINET PARTS

Written by

in

ED5NHGXMQ00 01 – CABINET PARTS

Products

PositionProduct
1Modular Icemaker Service Sheet
1LITERATURE PARTS (Service & Wiring Sheet)
1LITERATURE PARTS (Use & Care Guide)
1Literature Parts (Energy Guide)
1LITERATURE PARTS
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2181911 Whirlpool Refrigerator Shim
9WP2203770 Whirlpool Refrigerator Door Hinge
10WP2203771 Whirlpool Refrigerator Door Hinge
11WP489128 Whirlpool Refrigerator Screw
122203407T Whirlpool Refrigerator Cover
12WP2203407W Whirlpool Refrigerator Cover
138201707 Whirlpool Door Hinge
14Filler, Wrapper (Biscuit)
14Filler, Wrapper (White)
15W10803964 Whirlpool Grille Assembly
15Grille (Biscuit)
16WP489497 Whirlpool Screw
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19WP1108438 Whirlpool Refrigerator Extension
20WP1108439 Whirlpool Refrigerator Clip
21WP2188755 Whirlpool Rear Panel
22Hinge Cover (Biscuit)
22WP2203408W Whirlpool Refrigerator Cover
23549193 Whirlpool Refrigerator Power Clamp
25WPW10329686 Whirlpool Door Cam Black
26WP489483 Whirlpool Screw
27Cabinet (Not A Serviceable Part)
28WP8281227 Whirlpool Screw
29WP489500 Whirlpool Refrigerator Screw
30EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
31WP2186443 Whirlpool Water Filter Housing
32WP2186494W Whirlpool Water Filter Cap
32WP2186494T Whirlpool Water Filter Cap
