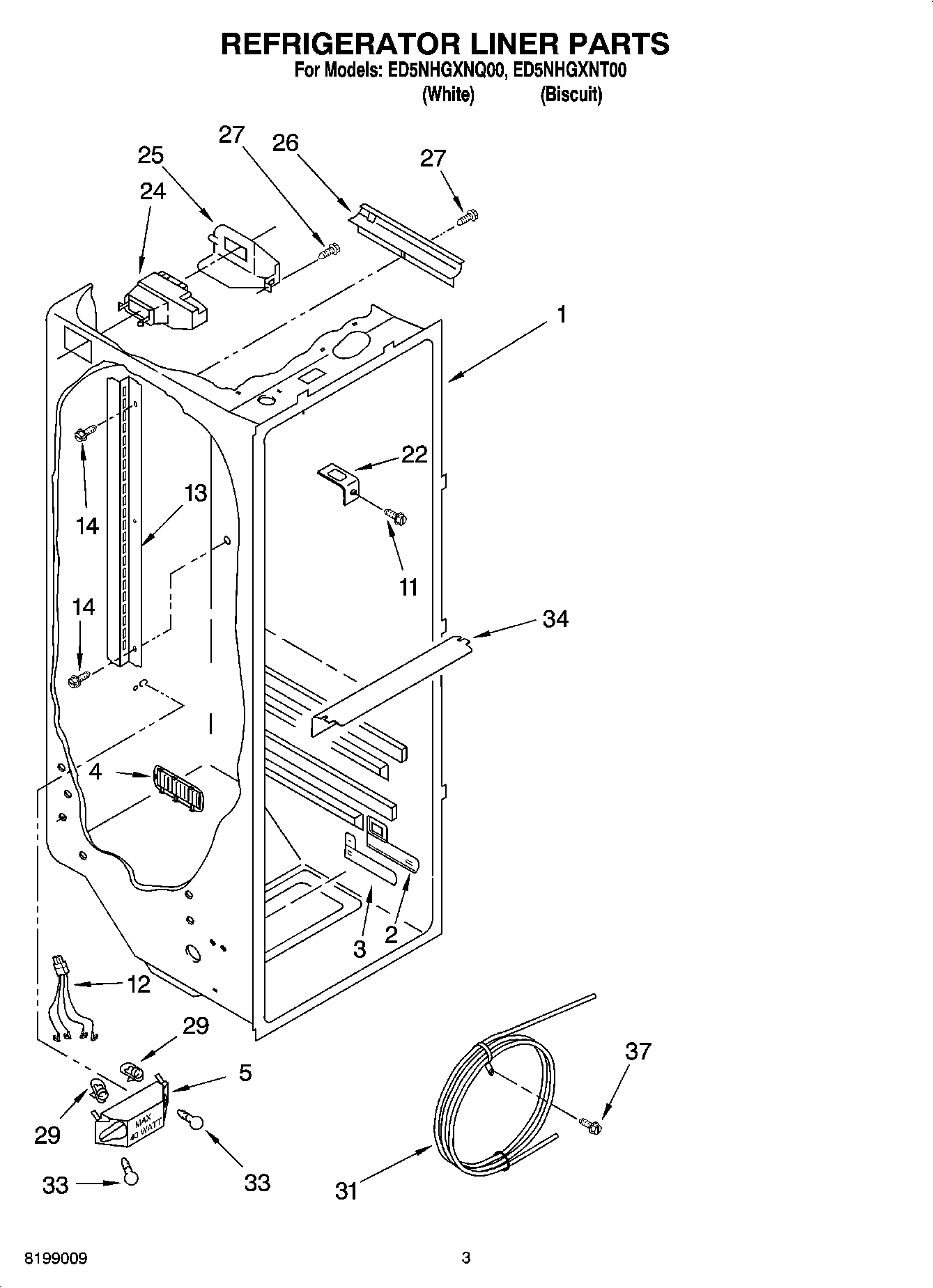

ED5NHGXNQ00 02 – REFRIGERATOR LINER PARTS

ED5NHGXNQ00 02 – REFRIGERATOR LINER PARTS

Written by

in

ED5NHGXNQ00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Bracket, Dual Crisper Light
11WP488488 Whirlpool Refrigerator Screw
122311637 Whirlpool Refrigerator Wire Harness
13Ladder, Shelf
14WP488729 Whirlpool Refrigerator Door Screw
22WP2256085 Whirlpool Refrigerator Retainer
24WPW10151374 Whirlpool Refrigerator Diffuser
252152019 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
27W10759522 Whirlpool Screw
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
37Screw (2)
