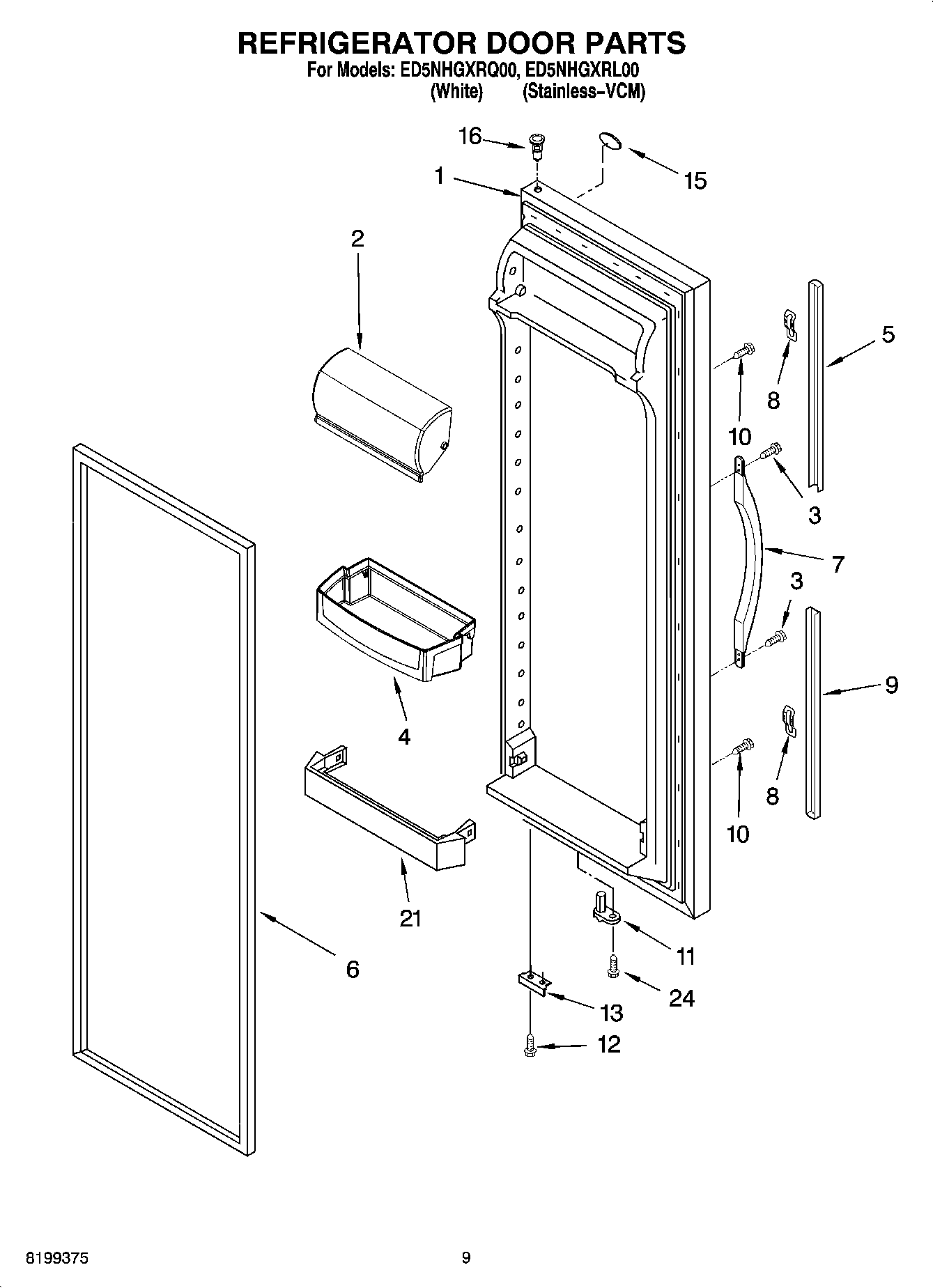

ED5NHGXRL00 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (White)
1	Refrigerator Door (Includes Item 6) (Stainless-VCM)
2	WP2256101 Whirlpool Dairy Door
3	WP489491 Whirlpool Refrigerator Screw
4	WP2203828 Whirlpool Door Shelf Bin
5	WP2194973W Whirlpool Door Trim
5	Extension, Top (Black)
6	2159075 Whirlpool Door Gasket Seal
6	2159083 Whirlpool Gasket Door
7	Handle, Center (White)
7	WP2186649B Whirlpool Refrigerator Handle
8	WP2195327 Whirlpool Refrigerator Clip
9	WP2194969B Whirlpool Refrigerator Handle Trim
9	Extension, Bottom (White)
10	WP3400852 Whirlpool Refrigerator Screw
11	WP2182179 Whirlpool Cam Closer
12	WP489483 Whirlpool Screw
13	WP2206629B Whirlpool Refrigerator Bracket
15	WP2213265 Whirlpool Refrigerator Nameplate
16	WP2182181 Whirlpool Refrigerator Thimble
21	WP2177962K Whirlpool Refrigerator Door Trim
24	WP3400012 Whirlpool Refrigerator Screw
