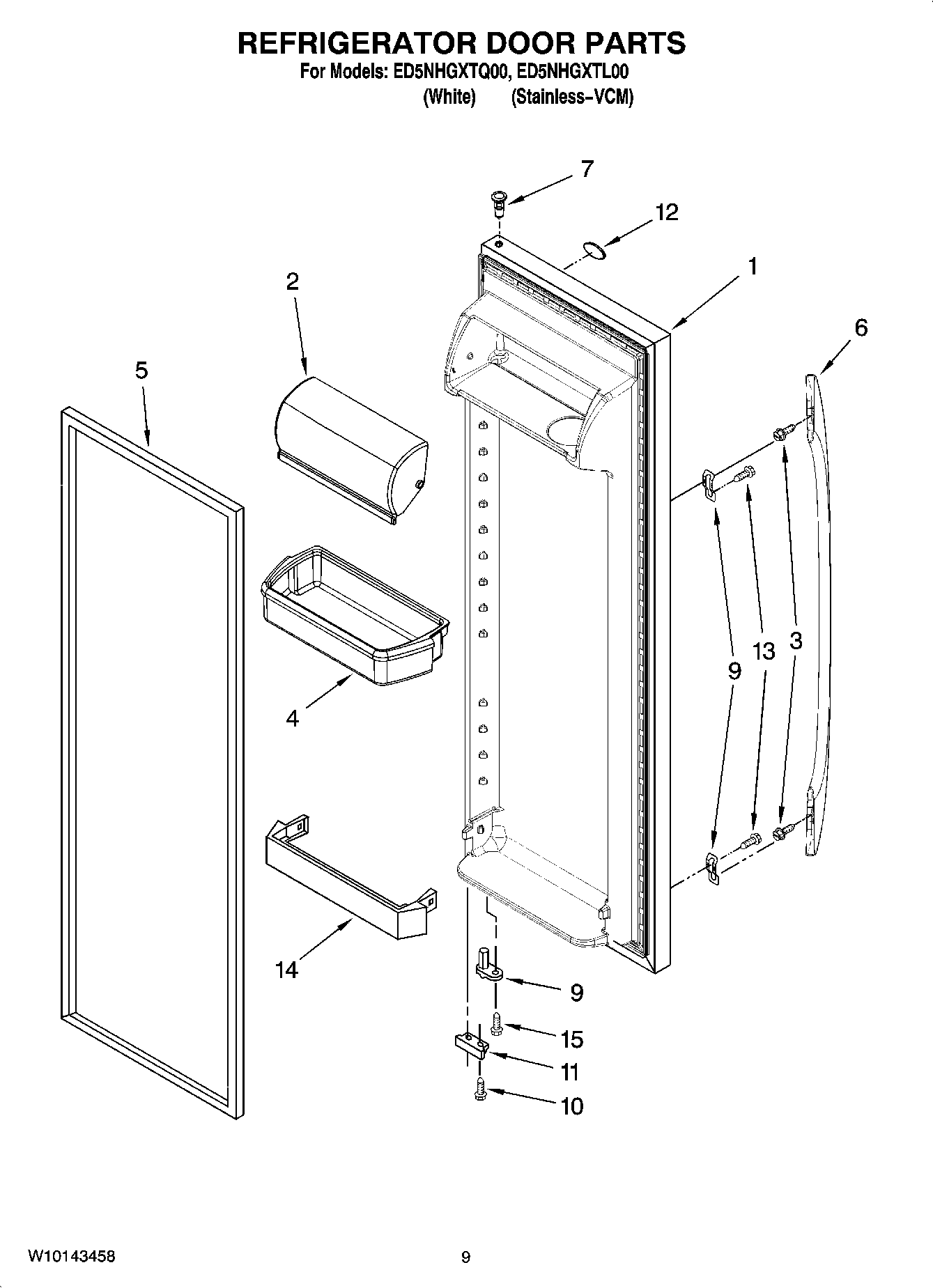

ED5NHGXTL00 06 – REFRIGERATOR DOOR PARTS

ED5NHGXTL00 06 – REFRIGERATOR DOOR PARTS

Written by

in

ED5NHGXTL00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 5) (White)
1Refrigerator Door (Includes Item 5) (Stainless-VCM)
2WP2256101 Whirlpool Dairy Door
3SCREW
4WP2203828 Whirlpool Door Shelf Bin
52159075 Whirlpool Door Gasket Seal
52159083 Whirlpool Gasket Door
6W10187086 Whirlpool Refrigerator Handle
6Handle (White)
7WP2182181 Whirlpool Refrigerator Thimble
8WP2255411 Whirlpool Refrigerator Clip
9WP2182179 Whirlpool Cam Closer
10WP489483 Whirlpool Screw
11WP2206629B Whirlpool Refrigerator Bracket
12WP2213265 Whirlpool Refrigerator Nameplate
13WP489491 Whirlpool Refrigerator Screw
14WP2156022 Whirlpool Refrigerator Door Trim
15WP3400012 Whirlpool Refrigerator Screw
