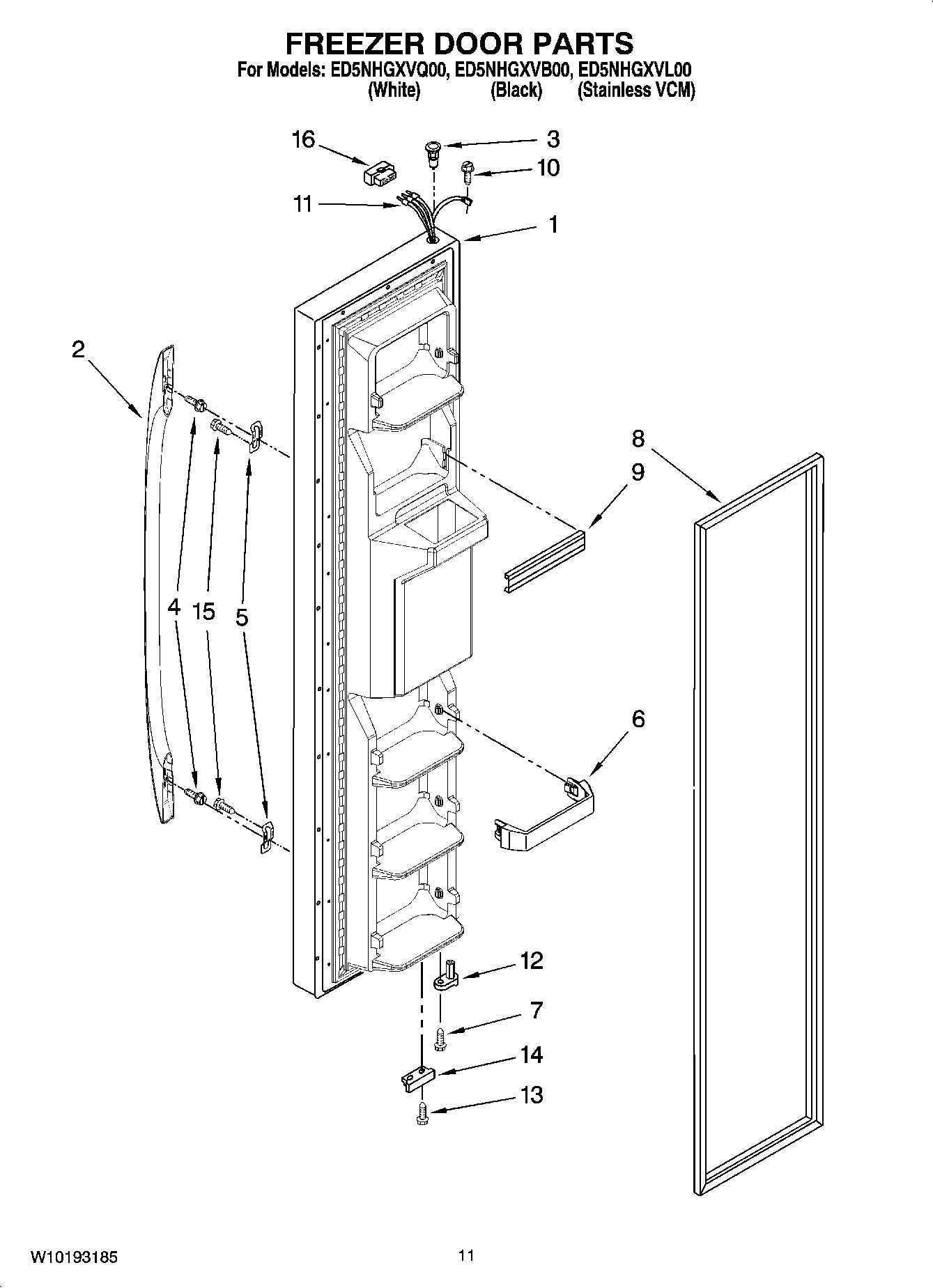

ED5NHGXVB00 07 – FREEZER DOOR PARTS

ED5NHGXVB00 07 – FREEZER DOOR PARTS

Written by

in

ED5NHGXVB00 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2WPW10136231 Whirlpool Refrigerator Handle
2Handle (White)
3WP2182181 Whirlpool Refrigerator Thimble
4SCREW
5WP2255411 Whirlpool Refrigerator Clip
6WP2309718 Whirlpool Refrigerator Door Trim
7WP3400012 Whirlpool Refrigerator Screw
82159074 Whirlpool Door Gasket Seal
82159082 Whirlpool Freezer Door Gasket Black
9WPW10307490 Whirlpool Door Trim Assembly
10WP489128 Whirlpool Refrigerator Screw
112311641 Whirlpool Refrigerator Wire Harness
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14WP2206629B Whirlpool Refrigerator Bracket
15WP489491 Whirlpool Refrigerator Screw
16WP2154473 Whirlpool Refrigerator Connector
