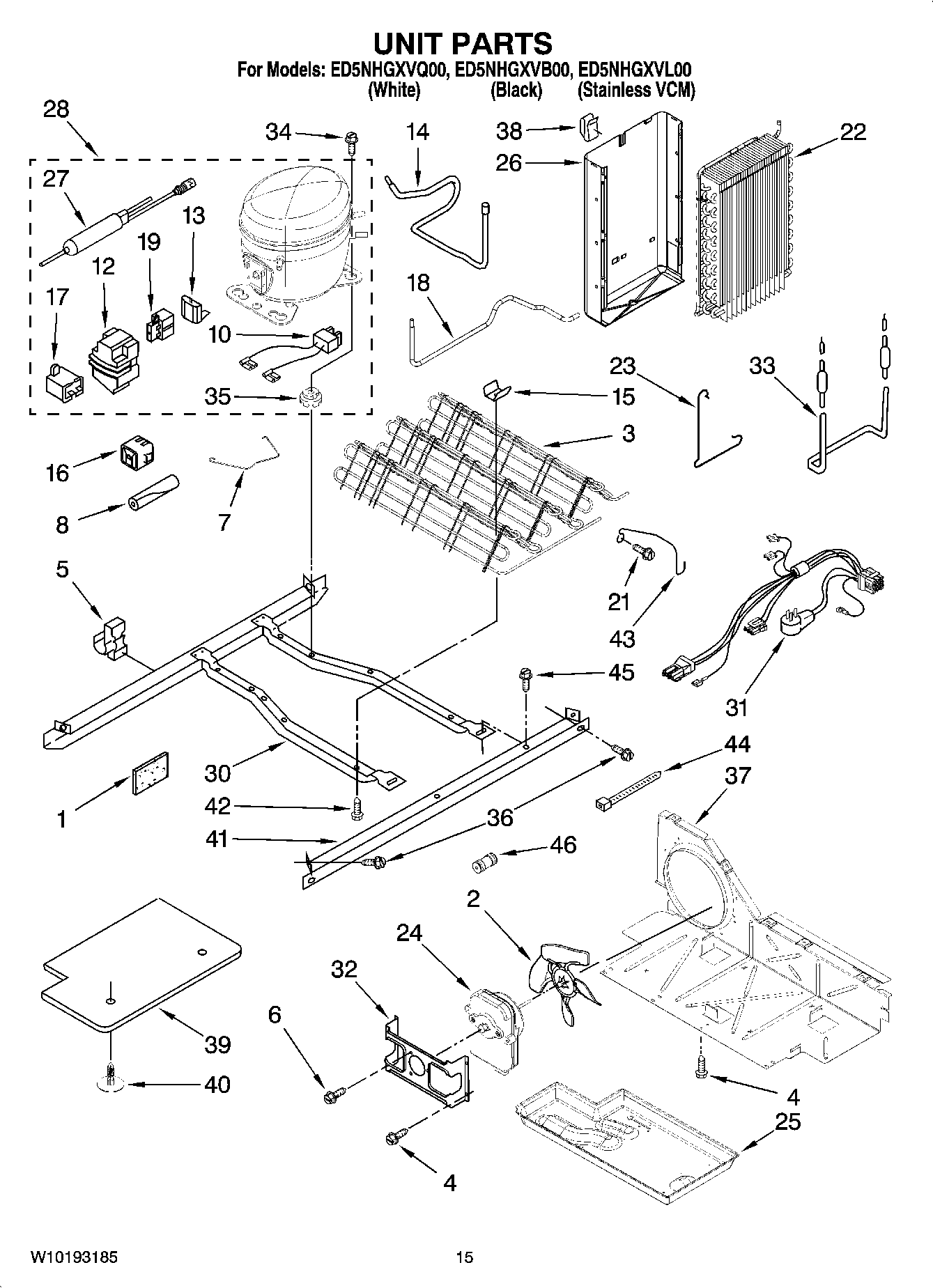

ED5NHGXVQ00 09 – UNIT PARTS

Products

Position	Product
	876764 Whirlpool Refrigerator Primary Valve
	WPL ARI36996A6
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	Following Parts
	VALVE, ACCESS (5/8“)
1	W11553819 Whirlpool Refrigerator Insulation
2	W10156818 Whirlpool Refrigerator Fan Blade
3	2324712 Whirlpool Refrigerator Condenser
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire & Tube
6	WP8533993 Whirlpool Refrigerator Screw
7	Clip, Retaining
8	SLEEVE
10	WP2172890 Whirlpool Refrigerator Wire
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2154697 Whirlpool Refrigerator Overload
14	WP2205765 Whirlpool Refrigerator Tube
15	W10683556 Whirlpool Refrigerator Clip
16	WPW10189190 Whirlpool Start Device
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	2261599 Whirlpool Refrigerator Tube
19	W10920279 Whirlpool Refrigerator Start Relay
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	WP2188874 Whirlpool Refrigerator Condenser Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
27	WPW10143759 Whirlpool Dryer Filter
28	W10139462 Whirlpool Refrigerator Compressor
30	2304904 Whirlpool Frame Assembly
31	WPW10309395 Whirlpool Refrigerator Wire Harness
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323198 Whirlpool Refrigerator Heater
35	WP4387558 Whirlpool Refrigerator Compressor Grommet
35	876811 Whirlpool Grommet
36	489340 Whirlpool Refrigerator Screw
37	W10896764 Whirlpool Refrigerator Air Baffle
38	Clip, Heat Shield
39	Unit Cover, Bottom
40	489396 Whirlpool Refrigerator Clip
41	2305374 Whirlpool Refrigerator Unit Rail
42	W11544659 Whirlpool Refrigerator Screw
43	2260517 Whirlpool Fan Guard
44	WPW10339879 Whirlpool Wire Tie
45	WP489427 Whirlpool Refrigerator Screw
46	WP4373559 Whirlpool Fitting
