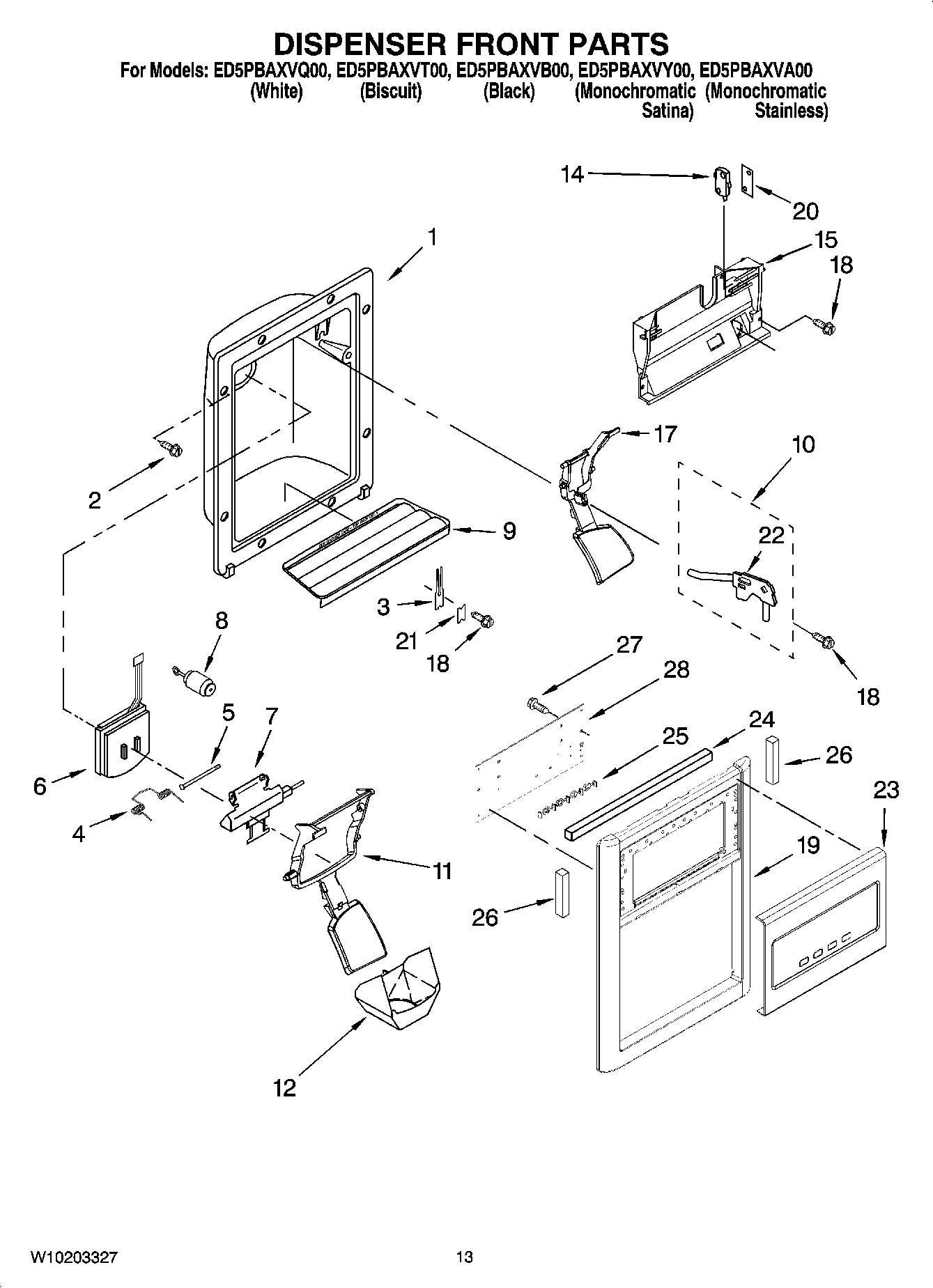

ED5PBAXVB00 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP3196557 Whirlpool Screw
3	WP2194719 Whirlpool Refrigerator Clip
4	WPW10224328 Whirlpool Refrigerator Spring
5	WP2196195 Whirlpool Refrigerator Door Pin
6	WP2180353 Whirlpool Dispenser Door
7	Door Mechanism Assembly
8	Delay Mechanism
9	WP2206670W Whirlpool Dispenser Tray
9	WP2206670T Whirlpool Refrigerator Grille
9	WP2206670B Whirlpool Dispenser Tray
10	8201537 Whirlpool Water Tubing Assembly
11	W10152855 Whirlpool Refrigerator Dispenser Arm
11	W10155161 Whirlpool Refrigerator Dispenser Arm
11	WPW10152853 Whirlpool Refrigerator Dispenser Arm
11	WPW10152854 Whirlpool Refrigerator Dispenser Arm
12	WP2180224 Whirlpool Dispenser Funnel Guide
14	WP2162361 Whirlpool Switch
15	Bracket, Control
17	WPW10152858 Whirlpool Refrigerator Dispenser Arm
17	Lever, Water Dispenser (Apollo Grey)
17	W10152860 Whirlpool Refrigerator Dispenser Arm
17	WPW10152859 Whirlpool Refrigerator Dispenser Arm
18	WP3400906 Whirlpool Refrigerator Screw
19	W10136850 Whirlpool Refrigerator Front Cover
19	W10136852 Whirlpool Front Cover
19	W10171988 Whirlpool Refrigerator Front Cover
19	Bezel, Disp (Black)
19	Bezel, Disp (Mono Satina (SS))
20	Spacer, Switch (2)
21	WP2195051 Whirlpool Refrigerator Clip
22	WP2304673 Whirlpool Refrigerator Bracket
23	Fascia Assy (Mono Stain (NO))
23	Fascia Assy (Mono Satina (SS))
23	Fascia Assy (Biscuit)
23	Fascia Assy (Black)
23	Fascia Assy (White)
24	2305571 Whirlpool Gasket Assembly
25	Support, Window
26	Gasket, Disp (2)
27	2006254 Whirlpool Refrigerator Screw
28	Control, Elec
