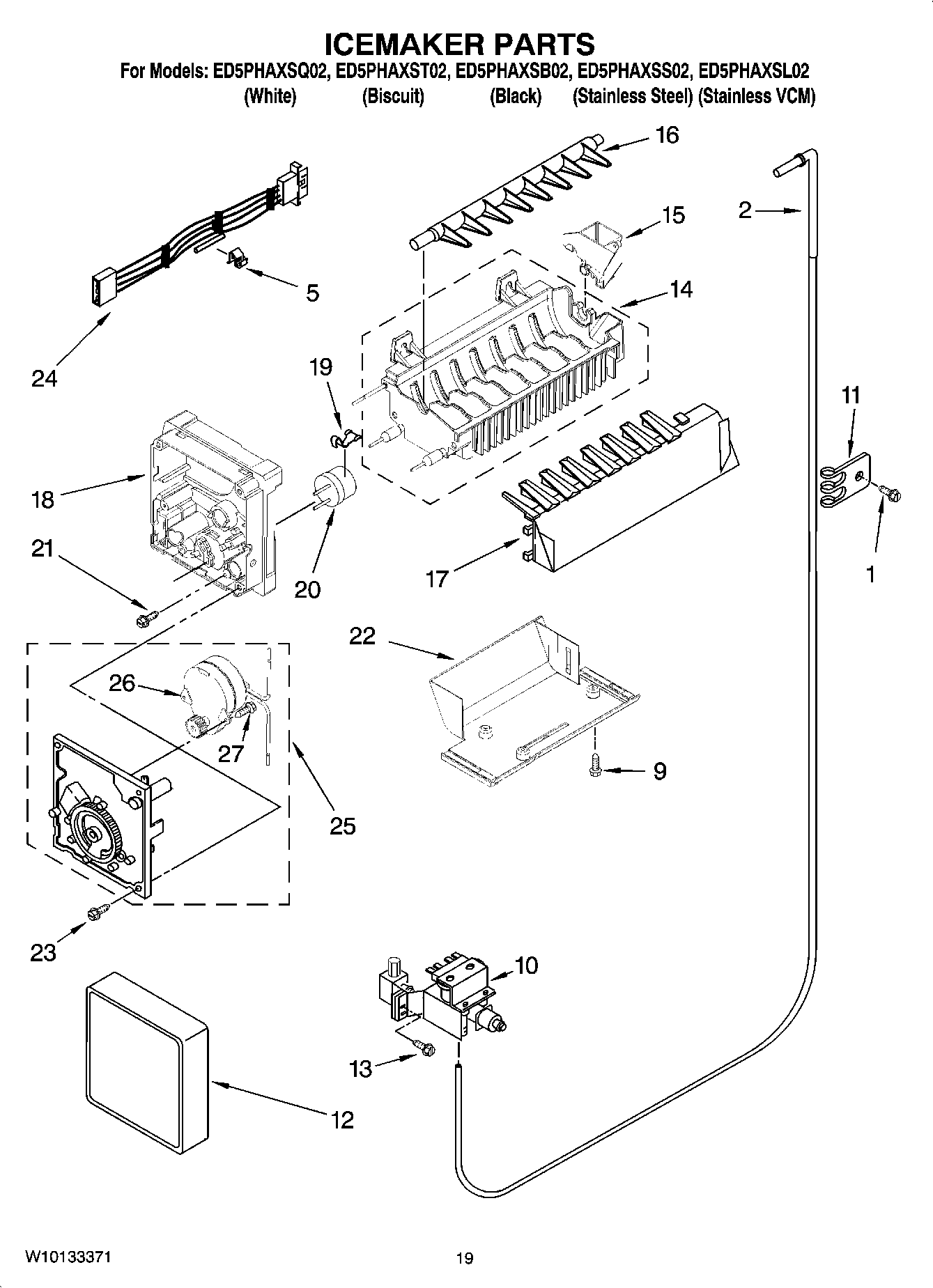

ED5PHAXSL02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ED5PHAXSL02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

ED5PHAXSL02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI37370A6
TAPE, VINYL (3/4 X 108“)
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
Torx Key
WP542638 Whirlpool Refrigerator Grease
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
833938 Whirlpool Refrigerator Terminal
606755 Whirlpool Refrigerator Bag
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL ARI37369A1
4210463RW Whirlpool Refrigerator Coil Brush
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
PAINT, BULK (1 QT. GRAPHITE)
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
8171357 Whirlpool Spray Nozzle
WPL 799833
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI37371A3
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
2WP2256096 Whirlpool Refrigerator Fitting
5WP628379 Whirlpool Refrigerator Clip
9WP489478 Whirlpool Refrigerator Screw
10W10408179 Whirlpool Ice Maker Water Inlet Fill Valve Kit
11WP488366 Whirlpool Refrigerator Clamp
12WPW10289690 Whirlpool Ice Maker Cover
13WPW10141625 Whirlpool Refrigerator Screw Assembly
14WPW10190929 Whirlpool Refrigerator Ice Maker Mold
15WP628356 Whirlpool Refrigerator Fill Cup
16WP627843 Whirlpool Refrigerator Ejector Arm
17W10297244 Whirlpool Refrigerator Arm Strip
18WP2195914 Whirlpool Refrigerator Ice Maker Housing
19WP2315522 Whirlpool Refrigerator Clip
20WP627985 Whirlpool Icemaker Cycling Thermostat
218533917 Whirlpool Refrigerator Screw
22BRACKET, ICEMAKER MOUNTING
23WP681249 Whirlpool Screw Assembly
24WP2187467 Whirlpool Refrigerator Wire Harness
258201515 Whirlpool Refrigerator Motor and Gear Module Kit
26W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
27489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
