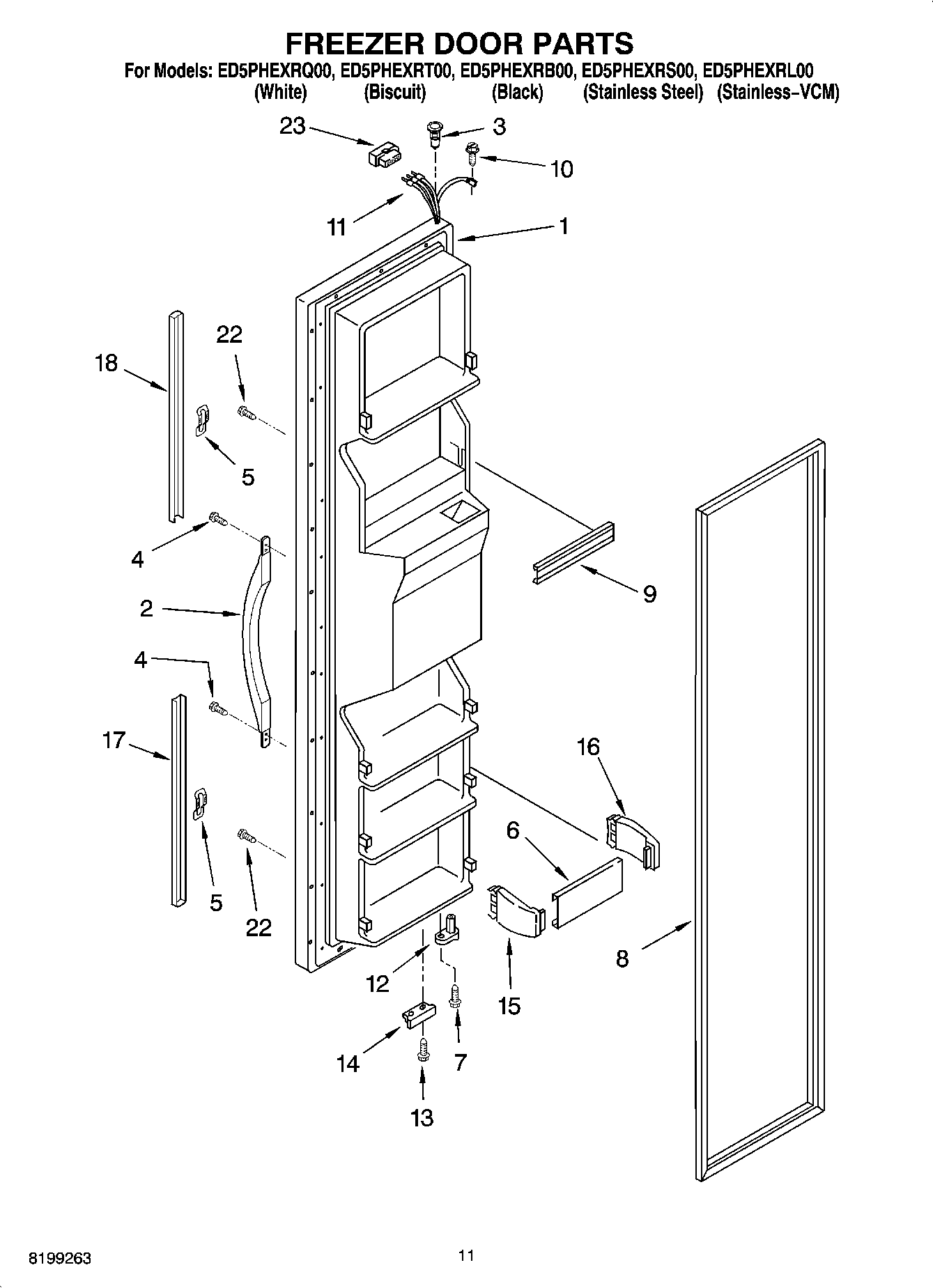

ED5PHEXRB00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless Steel)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Stainless-VCM)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2	Handle, Center (Biscuit)
2	Handle, Center (White)
2	WP2186649B Whirlpool Refrigerator Handle
3	Thimble, Top (For Stainless Steel Models)
3	WP2182181 Whirlpool Refrigerator Thimble
4	WP489491 Whirlpool Refrigerator Screw
5	WP2195327 Whirlpool Refrigerator Clip
6	Trivet, Shelf (4)
7	WP3400012 Whirlpool Refrigerator Screw
8	2159082 Whirlpool Freezer Door Gasket Black
8	2159074 Whirlpool Door Gasket Seal
9	WPW10307490 Whirlpool Door Trim Assembly
10	WP489128 Whirlpool Refrigerator Screw
11	2311641 Whirlpool Refrigerator Wire Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	WP2206629B Whirlpool Refrigerator Bracket
15	WP2195917K Whirlpool Refrigerator Endcap
16	ENDCAP
17	Extension, Bottom (Biscuit)
17	Extension, Bottom (White)
17	WP2194969B Whirlpool Refrigerator Handle Trim
18	Extension, Top (Biscuit)
18	Extension, Top (Black)
18	WP2194973W Whirlpool Door Trim
22	WP3400852 Whirlpool Refrigerator Screw
23	WP2154473 Whirlpool Refrigerator Connector
